4CH 1270~1610nm CWDM Mux Demux Module with LC UPC Adaptor for Data Center

Name: 4CH 1270~1610nm CWDM Mux Demux Module with LC UPC Adaptor for Data Center
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 4CH CWDM
Price: 64.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	4CH CWDM
MOQ:	1pc
Price:	US$32-US$96
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Document:

CWDM Module.pdf

Warranty Time:

3 Years

Type:

FTTx Solutions

Fiber Type:

SMF-28e

Fiber Connector:

LC/UPC, FC/APC, SC/APC Etc.

Center Wavelength:

1270~1610nm

Channel Number:

4CH

Application:

Data Center

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

4CH CWDM MUX

1270nm CWDM MUX

LC UPC Adaptor CWDM MUX DEMUX

Product Description

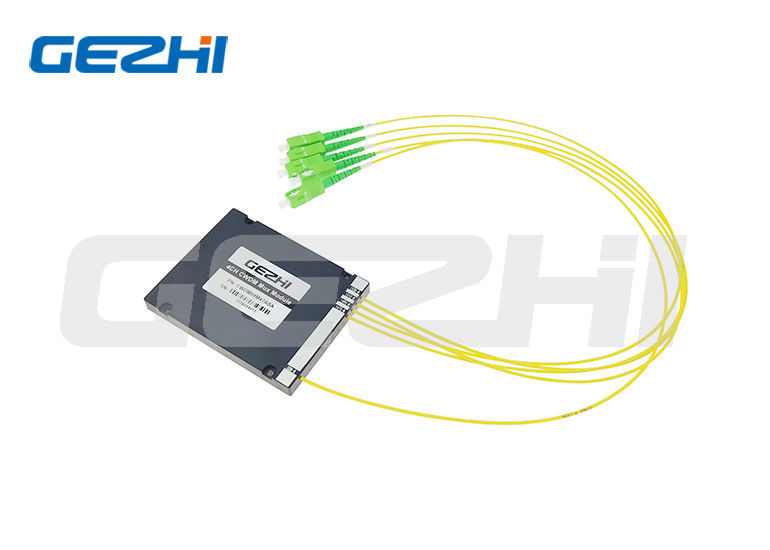

4CH 1270~1610nm Fiber CWDM MUX Cassette Module With LC UPC Adaptor

Product Overview

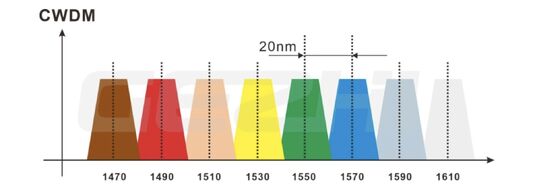

CWDM Mux/Demux (optical multiplexer/demultiplexer) modules provide a cost-effective and simplified alternative to DWDM systems for metro access network applications. With wide channel spacing of 20nm, these systems eliminate the need for precise wavelength control in transmitter lasers, enabling the use of cost-effective non-cooled lasers and lower-cost passive components.

Key Features

Low Insertion Loss

Low Crosstalk

High Stability & Reliability

Epoxy-free on Optical Path

Applications

Line Monitoring
WDM Network
Telecommunication
Configurable OADM

Technical Specifications

Parameter	Unit	CWDM Mux Demux
Channel Spacing	nm	20nm
Center Wavelength	nm	1270~1610 or 1271~1611
Channel Passband	nm	±6.5
Channel Number	/	4CH
Insertion Loss	dB	<1.5
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>40
Isolation @Express Port	dB	>15
Polarization Dependent Loss	dB	<0.2
Polarization Mode Dispersion	dB	<0.1
Directivity	dB	>50
Return Loss	dB	UPC >45 APC>50
Power Handling	mW	<500 (High Power type available)
Fiber Type	/	SMF-28e (Polarization Maintaining Type available)
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Package Type	mm	ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

Quality Assurance

NO-dust workshop • High Temp. Ageing & High-Low Temperature cycling • 100% Testing Before Shipment • Optical Spectrum Analysis

Frequently Asked Questions

Can I have a sample order? What is your MOQ?

Sample orders are welcome for quality testing. We have no minimum order quantity - even 1 piece samples are available. Mixed samples are also acceptable.

What's the Lead time?

Normal lead time is approximately 1 week. For large quantities and special products, please check with our sales representative. We maintain stock for some products and can ship within 1-3 days after payment.

What are the payment terms?

We accept T/T, PayPal, Western Union, cash payment, and ALI.

What is your warranty time?

3 years warranty.

Could I use our own logo, label and package?

Yes, we provide OEM services according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
