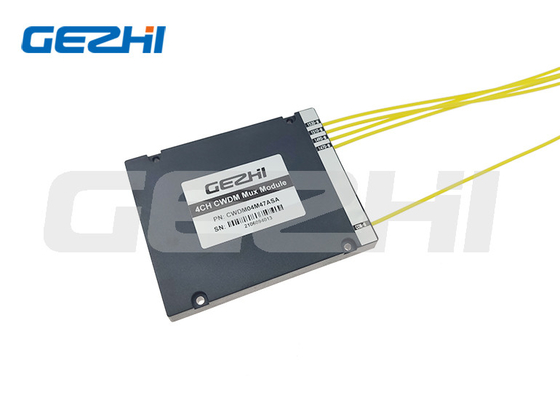

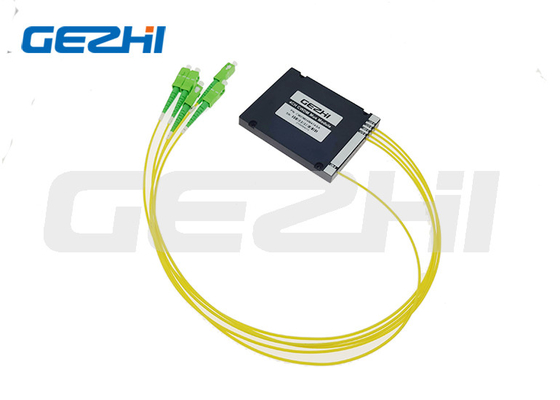

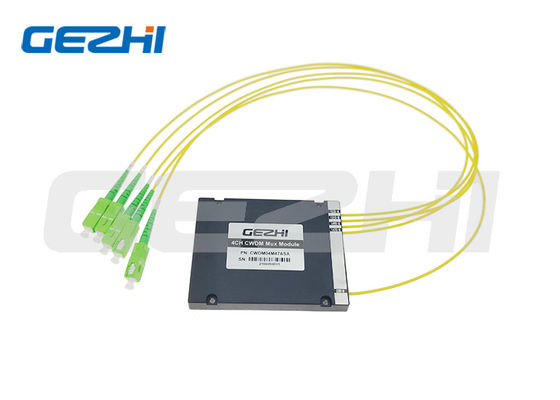

4CH 1270~1610nm Fiber CWDM MUX Cassette Module With LC UPC Adaptor

Large Image : 4CH 1270~1610nm Fiber CWDM MUX Cassette Module With LC UPC Adaptor

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE RoHS,ISO9001
Model Number:	4CH CWDM

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T, Western Union
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Warranty Time:	3 Years	Type:	FTTx Solutions
Fiber Type:	SMF-28e	Fiber Connector:	LC/UPC, FC/APC, SC/APC Etc.
Center Wavelength:	1270~1610nm	Channel Number:	4CH
Application:	Data Center
High Light:	4CH CWDM MUX , 1270nm CWDM MUX , LC UPC Adaptor CWDM MUX DEMUX

Product Overview

CWDM OADM Add/Drop

CWDM Mux/Demux (optical multiplexer/demultiplexer) Module are considered as a cheaper and simpler alternative to DWDM systems for metro access network applications. Since CWDM Mux/Demux systems have wide channel spacing (20 nm), they do not require precise wavelength control for transmitter lasers. Thus, cost-effective non-cooled lasers as well as lower-cost passive components may be used for CWDM Mux or Demux systems. GEZHI Photonics supplies a variety of WDM devices and are promoting higher speed and more reliable optical network.

FEATURES AT A GLANCE

Features

Low Insertion Loss

Low Crosstalk

High Stability & Reliability

Epoxy-free on Optical Path

Application

Line Monitoring

WDM Network

Telecommunication

Configurable OADM

4CH 1270~1610nm Fiber CWDM MUX Cassette Module With LC UPC Adaptor 0

PRODUCT SPECIFICATIONS

Parameter	Unit	CWDM Mux Demux
Channel Spacing	nm	20nm
Center Wavelength	nm	1270~1610 or 1271~1611
Channel Passband	nm	±6.5
Channel Number	/	4CH	8CH	16CH
Insertion Loss	dB	<1.5	<2.5	<5.5 or <3.5(with skip)
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>40
Isolation @Express Port	dB	>15
Polarization Dependent Loss	dB	<0.2
Polarization Mode Dispersion	dB	<0.1
Directivity	dB	>50
Return Loss	dB	UPC >45 APC>50
Power Handling	mW	<500 (High Power type available)
Fiber Type	/	SMF-28e (Polarization Maintaining Type available)
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Package Type	mm	ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

Test Enviroment

4CH 1270~1610nm Fiber CWDM MUX Cassette Module With LC UPC Adaptor 3

NO-dust workshop

High Temp. Ageing & High-Low Temperature cycling

100% Testing Before Shipment

Optical Spectrum Analysis

Product packaging

4CH 1270~1610nm Fiber CWDM MUX Cassette Module With LC UPC Adaptor 7

Finished Item

Inner Package

Inner Box

Carton

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.

Q4: What is your warranty time

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
