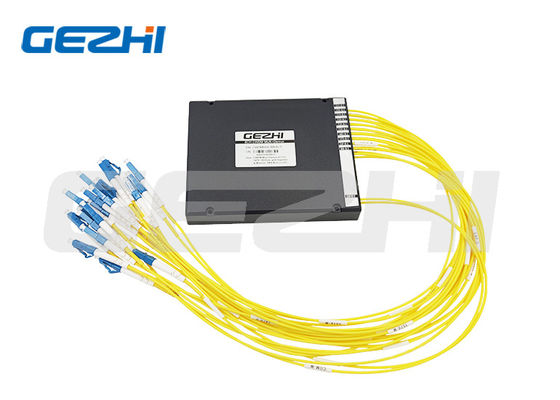

8 Channel CWDM Mux Demux Module with LC/UPC Connector for Data Center Applications

Name: 8 Channel CWDM Mux Demux Module with LC/UPC Connector for Data Center Applications
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 8 Channel CWDM Mux demux module
Price: 90.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	8 Channel CWDM Mux demux module
MOQ:	1pc
Price:	US$20-US$160
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Application:

Data Center

Fiber Type:

SMF-28e

Warranty Time:

3 Years

Channel Number:

4, 8, 16, 18 Or Customized

Type:

FTTx Solutions

Fiber Connector:

LC/UPC, FC/APC, SC/APC Etc.

Use:

WDM System

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

8 Channel CWDM Mux Demux

Dual Fiber CWDM Mux Demux

Product Description

Dual Fiber 8 Channel CWDM Mux Demux Module

LC/UPC connector Coarse Wavelength Division Multiplexer De-multiplexer with Upgrade Options

Product Overview

GEZHI's 8 Channel Coarse WDM Mux Demux Module with 1470~1610nm + wide 1310nm wavelength range features ABS module construction with SC/APC pigtailed connections. This advanced solution addresses fiber shortage challenges while enabling transparent business transmission and reducing network infrastructure costs. With its cost-effective design, low power consumption, and compact form factor, it is ideally suited for access layer and metro aggregation applications requiring rapid deployment.

Technical Specifications

Parameter	Unit	CWDM Mux Demux
Channel Spacing	nm	20nm
Center Wavelength	nm	1270~1610 or 1271~1611
Channel Passband	nm	±6.5
Channel Number	/	4CH \| 8CH \| 16CH
Insertion Loss	dB	<1.5 \| <2.5 \| <5.5 or <3.5 (with skip)
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>40
Isolation @Express Port	dB	>15
Polarization Dependent Loss	dB	<0.2
Polarization Mode Dispersion	dB	<0.1
Directivity	dB	>50
Return Loss	dB	UPC >45 APC>50
Power Handling	mW	<500 (High Power type available)
Fiber Type	/	SMF-28e (Polarization Maintaining Type available)
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Package Type	mm	ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

Key Features & Applications

Ultra Low Insertion Loss

WDM Network Applications

Wide Pass Band

Access Network Solutions

High Channel Isolation

Line Monitoring Systems

Protocol & Rate Transparent

Telecommunication Networks up to 10Gbps

Frequently Asked Questions

Can I place a sample order? What is your minimum order quantity?

Sample orders are welcome for quality testing and verification. We do not enforce minimum order quantities - single unit samples are available. Mixed product samples are also acceptable.

What is your typical lead time?

Standard lead time is approximately 1 week. For large quantity orders and specialized products, please consult with our sales representatives. We maintain stock for many products, enabling shipment within 1-3 days after payment confirmation.

What payment methods do you accept?

We accept T/T bank transfer, PayPal, Western Union, cash payment, and Alibaba trade assurance.

What is your product warranty period?

All products include a comprehensive 3-year warranty.

Can I use custom branding, labeling, and packaging?

Yes, we provide complete OEM services tailored to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging design.
