Dual Fiber 8 Channel CWDM Mux demux module LC/UPC connector Coarse wavelength division multiplexer de-multiplexer +Upgra

Name: Dual Fiber 8 Channel CWDM Mux demux module LC/UPC connector Coarse wavelength division multiplexer de-multiplexer +Upgra
Brand: GEZHI or OEM
SKU: 8 Channel CWDM Mux demux module
Rating: 4.6 (152 reviews)

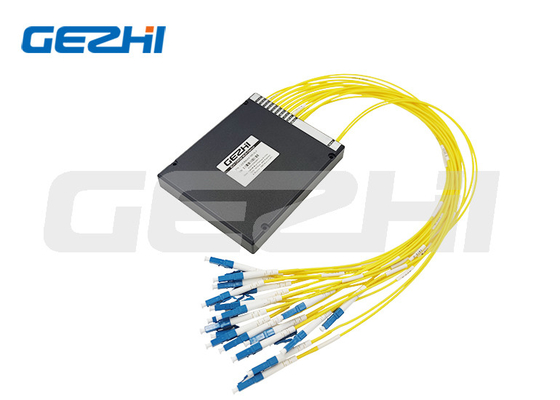

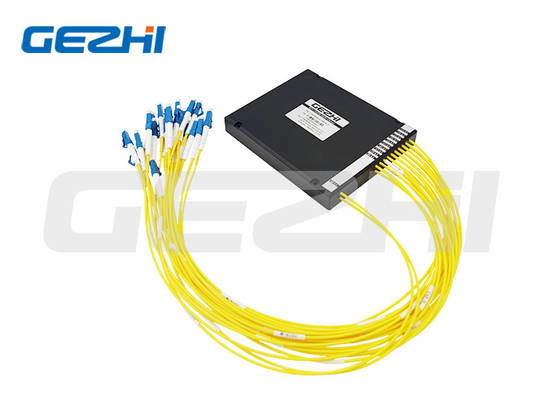

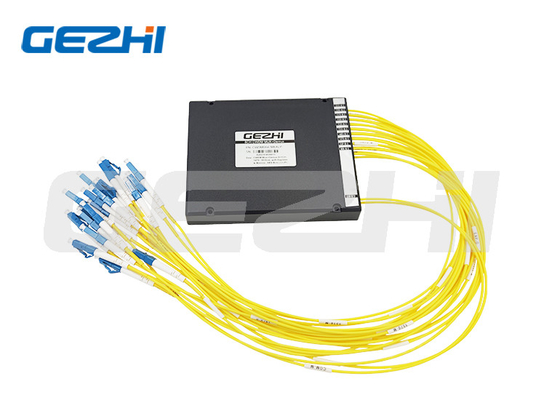

Large Image : Dual Fiber 8 Channel CWDM Mux demux module LC/UPC connector Coarse wavelength division multiplexer de-multiplexer +Upgra

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE RoHS,ISO9001
Model Number:	8 Channel CWDM Mux demux module

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Paper box
Payment Terms:	T/T, Western Union
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Application:	Data Center	Fiber Type:	SMF-28e
Warranty Time:	3 Years	Channel Number:	4, 8, 16, 18 Or Customized
Type:	FTTx Solutions	Fiber Connector:	LC/UPC, FC/APC, SC/APC Etc.
Use:	WDM System

PRODUCT SPECIFICATIONS

Parameter	Unit	CWDM Mux Demux
Channel Spacing	nm	20nm
Center Wavelength	nm	1270~1610 or 1271~1611
Channel Passband	nm	±6.5
Channel Number	/	4CH	8CH	16CH
Insertion Loss	dB	<1.5	<2.5	<5.5 or <3.5(with skip)
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>40
Isolation @Express Port	dB	>15
Polarization Dependent Loss	dB	<0.2
Polarization Mode Dispersion	dB	<0.1
Directivity	dB	>50
Return Loss	dB	UPC >45 APC>50
Power Handling	mW	<500 (High Power type available)
Fiber Type	/	SMF-28e (Polarization Maintaining Type available)
Operating Temperature	℃	-20~+75 (-40~+85 available)
Storage Temperature	℃	-40~+85
Package Type	mm	ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

Product Overview

8CH CWDM

GEZHI's 8 CH Coarse WDM Mux Demux Module 1470~1610 + wide 1310nm is ABS module with SC/APC pigtailed. This 8 CH Coarse WDM Mux Demux Module 1470~1610 + wide 1310nm can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost, low power consumption and small compact, it is widely used in access layer and metro aggregation to do transmission on a short time.

FEATURES AT A GLANCE

Features	Applications
Ultra low insertion loss	WDM network
Wide pass band	Access Network
high channel isolation	Line monitoring
Protocal and rate transparent for applications up to 10Gbps	Telecommunication

Dual Fiber 8 Channel CWDM Mux demux module LC/UPC connector Coarse wavelength division multiplexer de-multiplexer +Upgra 0

Test Enviroment

Dual Fiber 8 Channel CWDM Mux demux module LC/UPC connector Coarse wavelength division multiplexer de-multiplexer +Upgra 3

NO-dust workshop

High Temp. Ageing & High-Low Temperature cycling

100% Testing Before Shipment

Optical Spectrum Analysis

Product packaging

Dual Fiber 8 Channel CWDM Mux demux module LC/UPC connector Coarse wavelength division multiplexer de-multiplexer +Upgra 7

Finished Item

Inner Package

Inner Box

Carton

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.

Q4: What is your warranty time

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
