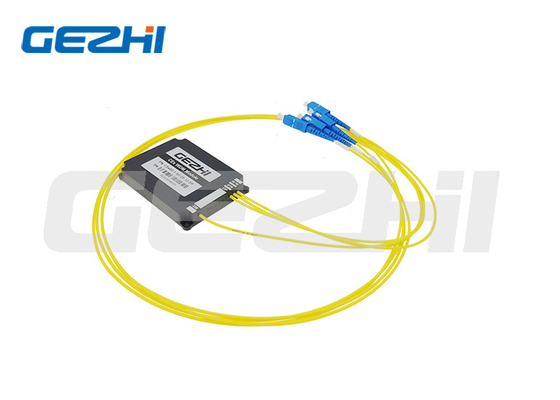

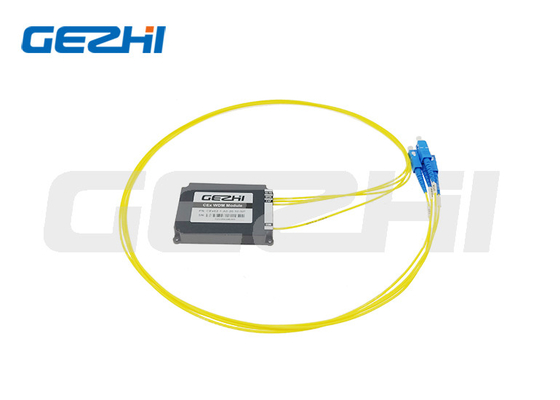

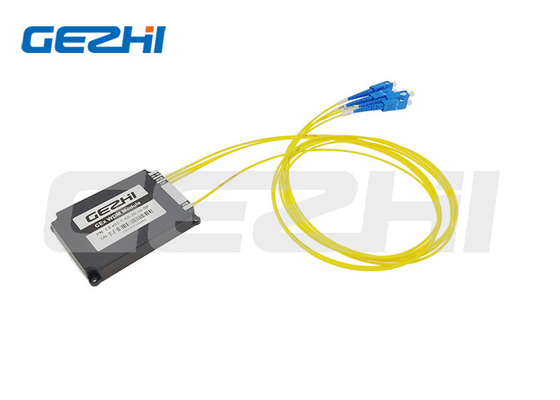

4, 8, 16 or Customized CEX WDM1R multiplexer GPON XGS-PON FWDM module optical filter 1270/1577nm 1310/1490nm

4, 8, 16 or Customized CEX WDM1R multiplexer GPON XGS-PON FWDM module optical filter 1270/1577nm 1310/1490nm
4, 8, 16 or Customized CEX WDM1R multiplexer GPON XGS-PON FWDM module optical filter 1270/1577nm 1310/1490nm 4, 8, 16 or Customized CEX WDM1R multiplexer GPON XGS-PON FWDM module optical filter 1270/1577nm 1310/1490nm 4, 8, 16 or Customized CEX WDM1R multiplexer GPON XGS-PON FWDM module optical filter 1270/1577nm 1310/1490nm

Large Image :  4, 8, 16 or Customized CEX WDM1R multiplexer GPON XGS-PON FWDM module optical filter 1270/1577nm 1310/1490nm

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: GPON XGS-PON FWDM module
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: N
Packaging Details: Paper box
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Type: FTTx Solutions Fiber Type: SMF-28e
Application: Data Center Fiber Connector: LC/UPC, FC/APC, SC/APC Etc.
Use: NGPON Center Wavelength: 1270/1577; 1310/1490

Product Overview



GPON XGS-PON WDM Module
Our CEX WDM series is designed for next generation passive optical networks (NGPON), a new optical access system that coexists with GPON on the same ODN. These WDM devices, including GPON, XGS-PON, RF video, and OTDR combiners, are designed to accommodate NGPON1 and NGPON2 TWDM wavelengths to maximize the density and enhance the speed of optical distribution network.


FEATURES AT A GLANCE

FEATURES

Low Insertion Loss

High channel isolation

RoHS Compliant

Available with customized functionalities

APPLICATIONS

WDM systems

PON SYSTEM

FTTH access networks

optical telecommunication networks



4, 8, 16 or Customized CEX WDM1R multiplexer GPON XGS-PON FWDM module optical filter 1270/1577nm 1310/1490nm 0

4, 8, 16 or Customized CEX WDM1R multiplexer GPON XGS-PON FWDM module optical filter 1270/1577nm 1310/1490nm 1

Wavelength of the Coexistence Elemet (CEx) Multiplexer

Protocl/Service Wavelength
G-PON Band 1290~1330, 1480~1500nm
XGS-PON Band 1260~1280, 1575~1580nm
NG-PON2 Band 1524~1544, 1596~1625
RF Video Band 1540~1565nm
PtP WDM-PON Band 1610~1625nm
OTDR Monitor Band 1640 - 1660nm



Specification

CEx Multiplexer Protocl/Service Spectral Range Max Insertion Loss Isolation
CEx01 GPON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
NGA 1260-1280 & 1572-1650nm 1.0dB ≥16dB
CEx02 GPON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
XGS-PON 1260-1280 & 1575-1580nm 1.1dB ≥30dB
CEx03 GPON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
XGS-PON 1260-1280 & 1575-1580nm 1.1dB ≥30dB
NG-PON2 1524-1544 & 1596-1625nm 1.4dB ≥16dB
CEx04 GPON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
XGS-PON 1260-1280 & 1575-1580nm 1.1dB ≥30dB
NG-PON2 1524-1544 & 1596-1625nm 1.4dB ≥25dB
CEx05 GPON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
XGS-PON 1260-1280 & 1575-1580nm 1.1dB ≥30dB
RF Video 1540-1565nm 1.4dB ≥30dB
CEx06 GPON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
XGS-PON 1260-1280 & 1575-1580nm 1.1dB ≥30dB
RF Video 1540-1565nm 1.7dB ≥30dB
OTDR Monitor 1640-1660nm 1.4dB ≥30dB
CEx07 G-PON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
XGS-PON 1260-1280 & 1575-1580nm 1.1dB ≥30dB
NG-PON2 1524-1544 & 1596-1625nm 1.4dB ≥25dB
RF Video 1540-1565nm 2.0dB ≥30dB
PtP WDM-PON 1610-1625nm 1.7dB ≥30dB
CEx08 G-PON 1290-1330 & 1480-1500nm 0.8dB ≥30dB
XGS-PON 1260-1280 & 1575-1580nm 1.1dB ≥30dB
NG-PON2 1524-1544 & 1596-1625nm 1.4dB ≥25dB
OTDR Monitor 1640-1660nm 1.7dB ≥30dB
PtP WDM-PON 1610-1625nm 2.0dB ≥30dB
RF Video 1540-1565nm 2.3dB ≥30dB


CEx Multiplexer Module ABS Box Package

FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
