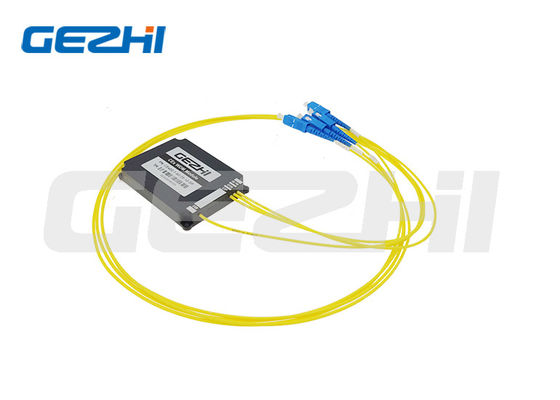

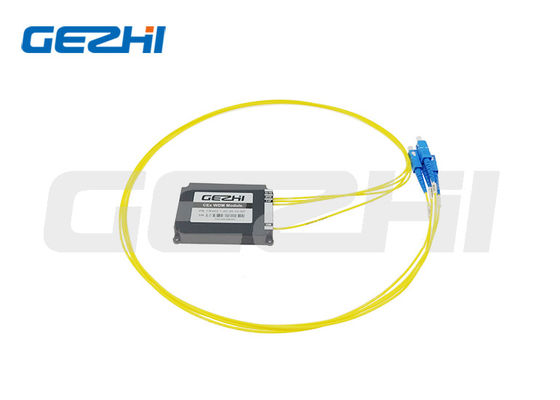

CEX WDM Module and WDM1R Multiplexer with 1270/1577nm and 1310/1490nm Wavelengths for NGPON Applications

Name: CEX WDM Module and WDM1R Multiplexer with 1270/1577nm and 1310/1490nm Wavelengths for NGPON Applications
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: GPON XGS-PON FWDM module
Price: 35.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	GPON XGS-PON FWDM module
MOQ:	1pc
Price:	US$28-US$42
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Type:

FTTx Solutions

Fiber Type:

SMF-28e

Application:

Data Center

Fiber Connector:

LC/UPC, FC/APC, SC/APC Etc.

Use:

NGPON

Center Wavelength:

1270/1577; 1310/1490

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Customized GPON XGS-PON FWDM module

1270/1577nm GPON XGS-PON FWDM module

1310/1490nm GPON XGS-PON FWDM module

Product Description

CEX WDM Multiplexer for GPON & XGS-PON Networks

4, 8, 16 or Customized CEX WDM1R multiplexer GPON XGS-PON FWDM module optical filter 1270/1577nm 1310/1490nm

Product Overview

Our CEX WDM series is designed for next generation passive optical networks (NGPON), a new optical access system that coexists with GPON on the same ODN. These WDM devices, including GPON, XGS-PON, RF video, and OTDR combiners, are designed to accommodate NGPON1 and NGPON2 TWDM wavelengths to maximize the density and enhance the speed of optical distribution networks.

Key Features & Applications

FEATURES

Low Insertion Loss
High Channel Isolation
RoHS Compliant
Available with Customized Functionalities

APPLICATIONS

WDM Systems
PON Systems
FTTH Access Networks
Optical Telecommunication Networks

Wavelength Specifications

Protocol/Service	Wavelength
G-PON Band	1290~1330, 1480~1500nm
XGS-PON Band	1260~1280, 1575~1580nm
NG-PON2 Band	1524~1544, 1596~1625nm
RF Video Band	1540~1565nm
PtP WDM-PON Band	1610~1625nm
OTDR Monitor Band	1640-1660nm

Technical Specifications

CEx Multiplexer	Protocol/Service	Spectral Range	Max Insertion Loss	Isolation
CEx01	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
CEx01	NGA	1260-1280 & 1572-1650nm	1.0dB	≥16dB
CEx02	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
CEx02	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
CEx03	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥16dB
CEx04	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥25dB
CEx05	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	RF Video	1540-1565nm	1.4dB	≥30dB
CEx06	GPON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	RF Video	1540-1565nm	1.7dB	≥30dB
	OTDR Monitor	1640-1660nm	1.4dB	≥30dB
CEx07	G-PON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥25dB
	RF Video	1540-1565nm	2.0dB	≥30dB
	PtP WDM-PON	1610-1625nm	1.7dB	≥30dB
CEx08	G-PON	1290-1330 & 1480-1500nm	0.8dB	≥30dB
	XGS-PON	1260-1280 & 1575-1580nm	1.1dB	≥30dB
	NG-PON2	1524-1544 & 1596-1625nm	1.4dB	≥25dB
	OTDR Monitor	1640-1660nm	1.7dB	≥30dB
	PtP WDM-PON	1610-1625nm	2.0dB	≥30dB
	RF Video	1540-1565nm	2.3dB	≥30dB

Packaging

Frequently Asked Questions

Q1: Can I have a sample order? What is your MOQ?

A1: Sample orders are welcome to test and check quality. We don't have a minimum order quantity (MOQ), 1 piece sample is available. Mixed samples are also acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1 week. For large quantities and special products, please check lead time with our sales representative. We keep stock for some products and can ship within 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment terms: T/T, PayPal, Western Union, cash payment, ALI, etc.

Q4: What is your warranty time?

A4: 3 years warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we provide OEM service according to your requirements, including custom product labels, logos, part numbers, serial numbers, and packaging.
