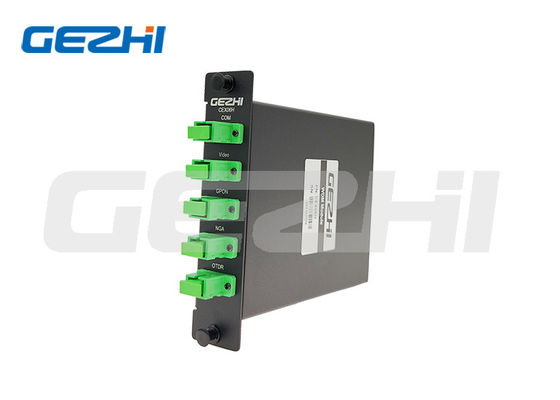

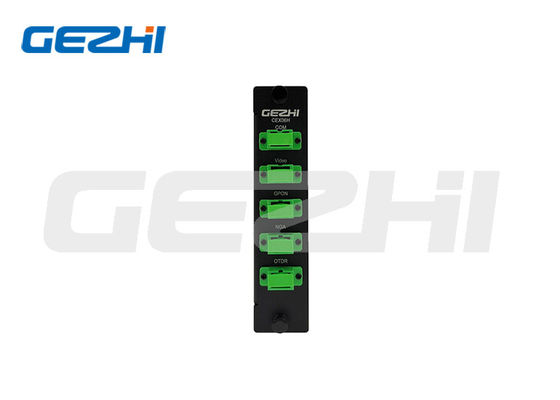

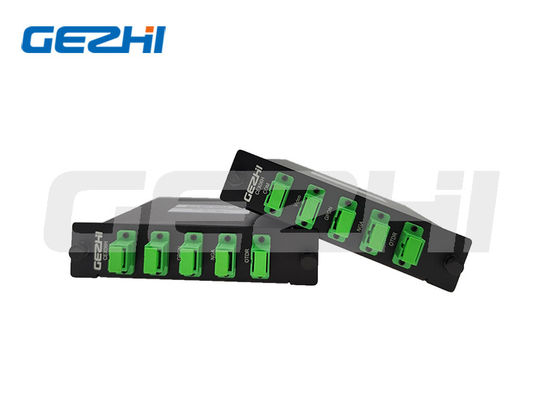

Low Insertion Loss Filter WDM Module for GPON XGS-PON with 1310/1490nm Wavelength

Name: Low Insertion Loss Filter WDM Module for GPON XGS-PON with 1310/1490nm Wavelength
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: Filter WDM GPON
Price: 39.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	Filter WDM GPON
MOQ:	1pc
Price:	US$22-US$56
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Warranty Time:

3 Years

Use:

Data Center, NGPON

Wavelength:

GPON, XGS-PON,Video, OTDR

Center Wavelength:

1270/1577; 1310/1490, 1550; 1625

Fiber Connector:

LC/UPC, SC/APC Etc.

Fiber Type:

SMF-28e

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

1310/1490 WDM GPON

1270/1577 WDM GPON

1625nm WDM GPON

Product Description

Low Insertion Loss Filter WDM Module for GPON/XGS-PON Networks

Product Overview

Our CEX WDM series is engineered for next-generation passive optical networks (NGPON), designed to coexist with GPON on the same optical distribution network. These advanced WDM devices integrate GPON, XGS-PON, RF video, and OTDR combiners to support NGPON1 and NGPON2 TWDM wavelengths, maximizing network density and enhancing transmission speeds.

Key Features

Low insertion loss for optimal signal integrity
Low polarization dependent loss (PDL)
High channel isolation for minimal interference
Excellent environmental reliability and stability

Applications

WDM systems and CATV networks

Technical Specifications

Parameters	Unit	I-FWDM Device Specifications
Operating Wavelength T: transmission wavelength R: reflection wavelength 1310±50, 1490±10, 1550±10 1610±10, 1625±25, 1650±20	nm	1. T1550 R1310/1490 2. T1490 R1310/1550 3. T1310 R1490/1550 4. T1550/1610 R1310/1490 5. T1550/1625 R1310/1490 6. T1625 R1310/1490/1550 7. T1650 R1310/1490/1550
Insertion Loss	dB	Transmission: ≤ 0.6 Reflection: ≤ 0.4
Transmission Channel Isolation	dB	≥ 30
Reflection Channel Isolation	dB	≥ 17
PDL	dB	≤ 0.1
Wavelength Thermal Stability	nm/℃	≤ 0.003
Insertion Loss Thermal Stability	dB/℃	≤ 0.005
Return Loss	dB	≥ 45
Optical Power	mW	≤ 500
Operating Temperature	℃	-10 ~ +70
Storage Temperature	℃	-40 ~ +85
Relative Humidity	%	5 ~ 95
Dimension	mm	Φ5.534 \| Φ4.225 \| 902010

Note: 1. Customization is available. 2. Specified without connector, add 0.2dB loss per connector.

Frequently Asked Questions

Q: Can I place a sample order? What is your minimum order quantity?

A: Sample orders are welcome for quality testing. We have no minimum order quantity - even single piece samples are available. Mixed samples are also acceptable.

Q: What is your typical lead time?

A: Standard lead time is approximately 1 week. For large quantities and specialized products, please consult our sales team. We maintain stock for many products and can ship within 1-3 days after payment confirmation.

Q: What payment methods do you accept?

A: We accept T/T, PayPal, Western Union, cash payments, and Alipay.

Q: What is your warranty period?

A: We provide a 3-year warranty on all products.

Q: Can I use my own logo, labeling, and packaging?

A: Yes, we offer comprehensive OEM services including custom product labeling, logos, part numbers, serial numbers, and packaging according to your specifications.
