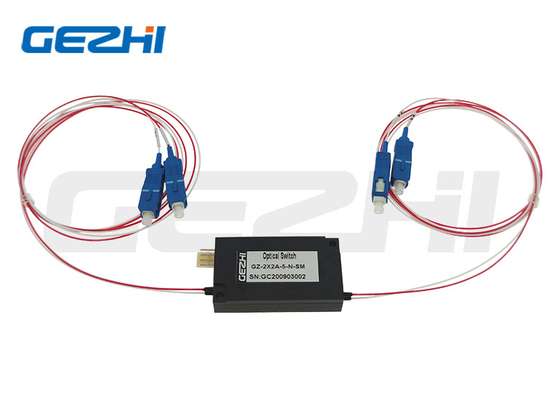

wholesale 2x2B Bypass mechanical Fiber Optical Switch

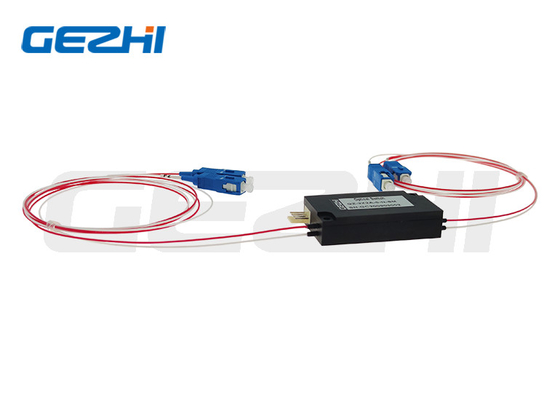

wholesale 2x2B Bypass mechanical Fiber Optical Switch

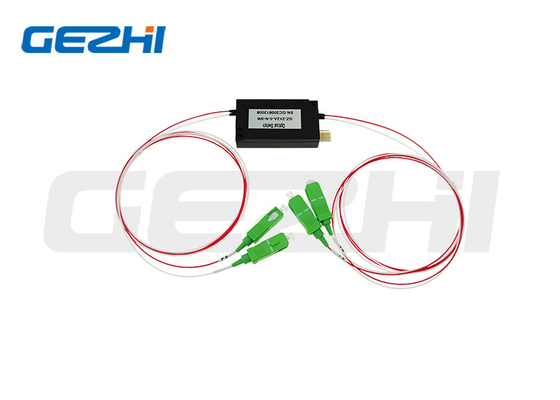

wholesale 2x2B Bypass mechanical Fiber Optical Switch wholesale 2x2B Bypass mechanical Fiber Optical Switch wholesale 2x2B Bypass mechanical Fiber Optical Switch

Large Image :  wholesale 2x2B Bypass mechanical Fiber Optical Switch

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: GZ-1x1-13/15
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 2pcs in a foam with plastic Box
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 50000pcs per month
Contact Now
Detailed Product Description
Product Name: 2 * 2 Optical Switch Control Type: Non-Latching/Latching
Wavelength: 1260~1650nm Voltage: 5V Or 3V
Feature: High Reliability Connector: LC/UPC, LC/APC, SC/UPC
Place Of Origin: China Port: 2x2Full

wholesale 2x2B Bypass mechanical Fiber Optical Switch



3-port 10/100M Industrial Switch /Media Converter, with 2x RJ45 ports and 1x optical fiber Uplink port. Rail-type installation.

Features

  • Industrial design, 2x 10/100M Ethernet RJ45 ports with AutoUplink™ and 1x 100M optical port
  • Supports IEEE802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode
  • RJ-45 port supports Auto MDI/MDI-X
  • Automatic MAC address learning and aging
  • Auto-Negotiation for Full-duplex Mode and Half-duplex Mode
  • Plug and play, with LED indicators for monitoring power/link/activity, easy to use.
  • Provides DIN35 rail-type installation method
  • Electromagnetic compatibility of up to 4 grade standard
  • IP40 protection class
  • Superior performance, successfully used in industrial field

Applications

  • Optical Network
  • Protection/Restoration
  • Optical Singnal Routing
  • Configurable Optical Add/Drop
  • Transmitter and receiver protection
  • Network Test System





Specification



Parameter Values
Wavelength Range nm 850 1260~1650
Operating Wavelength nm 850 1310/1490/1550/1625/1650
Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.5 Max:0.8
Return Loss dB MM≥30 SM≥50
Crosstalk dB MM≥35 SM≥55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power Supply V 3.0 or 5.0
Lifetime Times ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operating Temperature ℃ -20~+70
Storage Temperature ℃ -40~+85

Above specification are for device without connector.



Type Pin Electric Drive Status Sensor
1×2 channel 1 5 6 10 2-3 3-4 7-8 8-9
Latching P1-P2 V+ GND -- -- Open Close Close Open
P1-P3 -- -- GND V+ Close Open Open Close
Non-latching P1-P2 V+ -- -- GND Open Close Close Open
P1-P3 -- -- -- -- Close Open Open Close



Optical Route

Specifications Voltage Current Resistance
5V latching 4.5~5.5 36~44mA 125Ω
5V non-latching 4.5~5.5 26~32mA 175Ω
3V latching 2.7~3.3 54~66mA 50Ω
3V non-latching 2.7~3.3 39~47mA 70Ω



More Questions:

1. Can I have a sample order?What is your MOQ?

Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.



2. What is the lead time?
For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.


3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.


4. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Paypal.

Could also support L/C,Credit terms.



5. What is your warranty time
We promise 3 years warranty for all products shipped from us.


6. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,we could accept free exchange.



7. Could i use our own logo and label?

Yes,we could provide a OEM service and make the products with your own label.
