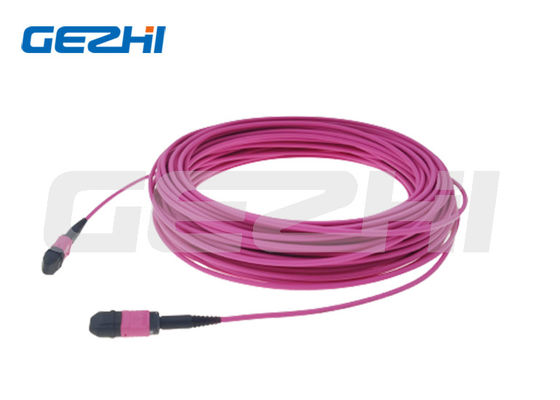

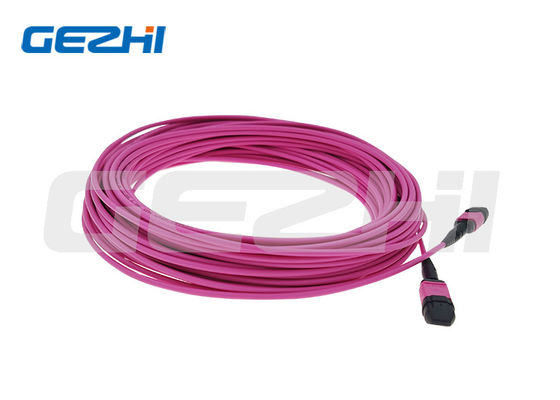

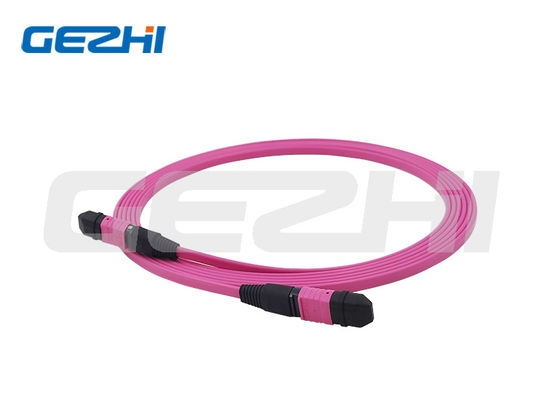

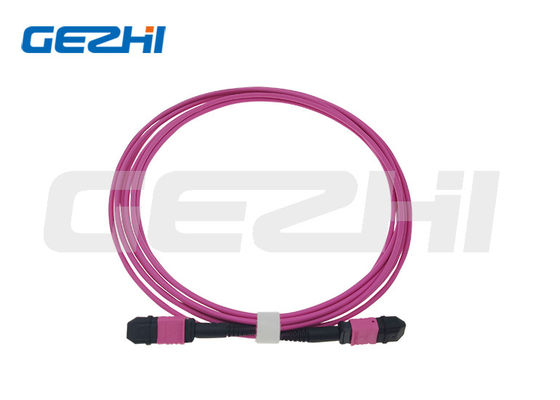

Customized Length MPO OM4 Patch Cable with Low Insertion Loss for Data Center Connectivity

Name: Customized Length MPO OM4 Patch Cable with Low Insertion Loss for Data Center Connectivity
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: MPO OM4 Patch Cable
Price: 27.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	MPO OM4 Patch Cable
MOQ:	1pc
Price:	US$18-US$36
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Type:

Fiber Optic Patch Cord

Connector Type:

Female Or Male

Cable Length:

Customized

Mode:

OM4 Multimode

Use:

Data Center

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Customized Length MPO OM4 Patch Cable

Multiple Mode MPO OM4 Patch Cable

Insertion Loss MPO OM4 Patch Cable

Product Description

FTTH Product Multiple Mode MPO OM4 Patch Cable

Customizable length patch cable with optimized insertion loss performance for fiber optic networks.

Product Overview

Patch cords provide optical connections for fiber optic electronics, offering quick and easy fiber routing in data centers, head-ends, cellular hubs, and central offices. These cords are essential for interconnect or cross-connect applications, linking incoming fibers to electronic equipment.

Gezhi patch cables are manufactured and tested to comply with TIA 604 (FOCIS), IEC 61754, and YD/T industry standards. Available in OM1, OM2, OM3, OM4, OM5, and OS2 fiber types to support Gigabit Ethernet, 10 Gigabit Ethernet, and high-speed Fiber Channel requirements. Each termination undergoes rigorous parameter testing to ensure optimal network performance.

Connector Standards

SC: TIA/EIA, FOCIS3, GR-326, NTT-SC, IEC61754-4, JIS C5973
LC: TIA/EIA, FOCIS10, GR-326, EIA/TIA-604-10, IEC61754-20, JIS C5973
FC: EIA/TIA-604-04, FOCIS4, NTT-FC, GR-326, IEC61754-13, JIS C5973
ST: TIA/EIA, FOCIS2, GR-326, IEC61754-2, JIS C5973
MU: TIA/EIA-604-3A, GR-326, NTT-MU, JIS, IEC
MTRJ: TIA/EIA, FOCIS12, GR-326, IEC, JIS C5973

Optical Specifications

Connector Types: SC, LC, FC, ST, E2000, MU, MTRJ, LX.5, DIN, D4

Fiber Mode: 9/125μm, 50/125μm, 62.5/125μm

Polish: PC, UPC, APC

Cable Type: Zip-cord Duplex (Fig 8 Duplex)

Insertion Loss: ≤ 0.3dB (IEC Grade C)

Return Loss: SM UPC ≥ 50dB, SM APC ≥ 60dB, MM P ≥ 35dB

Jacket OD: 1.2x2.5, 1.6x3.3, 1.7x3.5, 1.8x3.7, 2.0x4.1, 2.4x4.9, 2.6x5.3, 2.8x5.7 mm

Jacket Color: SM: Yellow/Blue/White; OM1&OM2: Orange; OM3: Aqua; OM4: Aqua/Violet/Magenta

Wavelength: SM: 1310/1550nm, MM: 850nm

Jacket Material: LSZH/PVC/OFNR/OFNP

Insertion Loss: ≤ 0.12dB (IEC Grade B)

Interchangeability & Vibration: ≤ 0.2dB

Operating Temperature: -40°C to 75°C

Storage Temperature: -45°C to 85°C

Geometric Specifications

Items	Connector	PC End-face	APC End-face
Radius of Curvature	SC/FC/ST	10-25 mm	5-12 mm
Radius of Curvature	LC/MU	7-25 mm	5-15 mm
Apex Offset	≤ 50 μm
Fiber Spherical Height	+/- 100 nm
Angular Offset	------	------	8° ± 0.5°
