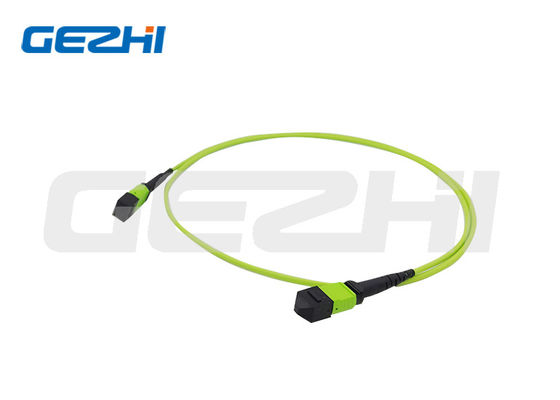

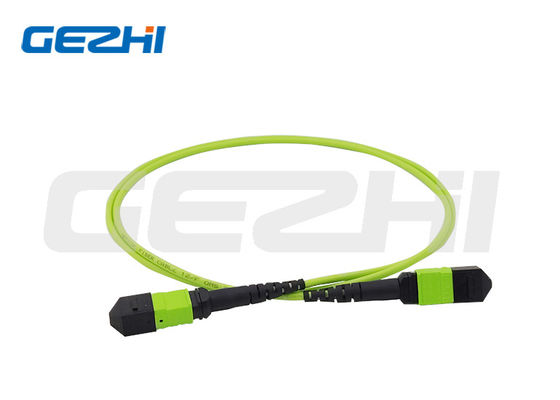

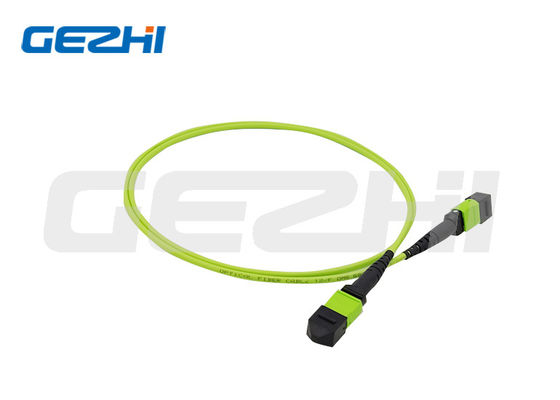

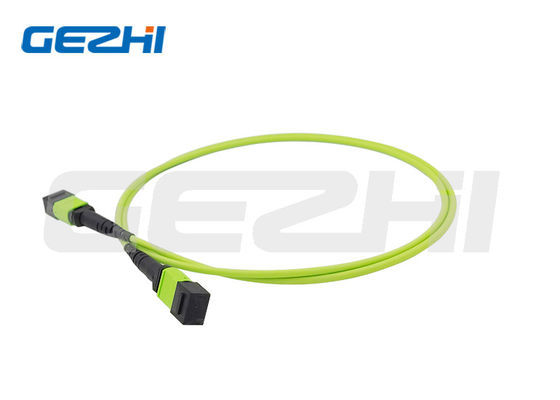

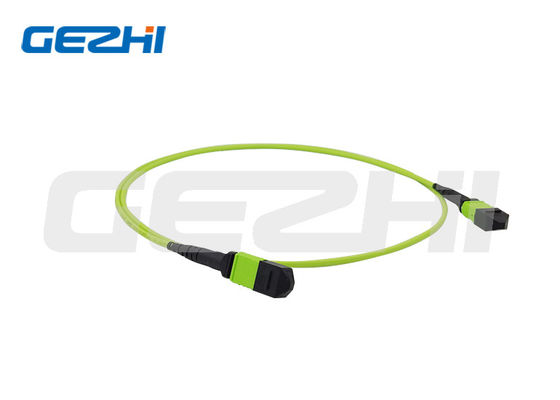

OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications

Name: OM5 Multimode MPO Fiber Optic Patch Cord with Customized Length for Data Center Grade Applications
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: OM5 MPO Fiber Optic Jumper
Price: 27.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	OM5 MPO Fiber Optic Jumper
MOQ:	1pc
Price:	US$18-US$36
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Fiber Count:

12 /24 /48/96/144 Cores

Connector Type:

Female Or Male

Mode:

OM5 Multimode

Use:

Data Center

Cable Length:

Customized

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Female MPO Patch Cord Cable

Data Center MPO Patch Cord Cable

OM5 Multimode MPO Patch Cord Cable

Product Description

OM5 Multimode MPO Fiber Optic Jumper Patch Cord

Factory price OM5 MPO Fiber Optic Jumper Patch Cord Cable with Female or Male connectors designed specifically for Data Center applications.

Product Overview

GEZHI Photonics manufactures data center grade fiber optic MPO patch cords. The MPO connector uses a spring-loaded sliding mechanism that securely latches onto adapters, providing reliable connections for network cabling in enterprise data centers, backbone systems, colocation facilities, server farms, cloud storage networks, and telecommunication rooms. Each assembly undergoes 100% factory testing to meet IEC 61753-1 standards.

Features

Applications

Low Insertion Loss
Array trunk cables
Data Center Cabling
High-density fiber card edge access
Optical switching interframe connections

Data Center
Storage area networking
40GbE & 100GbE protocol
Optical System Access network

Custom Fiber Count Options

8 Fibers - Used for 40G/100G QSFP+/QSFP28 direct connection

12-144 Fibers - Used for 10G/40G/100G high-density structural fiber cabling

Custom Polarity Configuration

Proper data transmission requires that a link's transmit signal (Tx) at one end matches the corresponding receiver (Rx) at the other end. Polarity defines the signal travel direction to ensure this correspondence is maintained. MPO connectors feature a key on the top side and a white dot indicating Position 1 location. Key orientation is critical for proper polarity.

Three MPO cable types are available:

Type A
Type B
Type C

MPO Cable Polarity Types

Custom Connector Options

Important: MPO interfaces on active equipment are male (with pins). To avoid transceiver damage, MPO patch cords should be female (without pins).

Male (with pins) - Mated to female side for adapters, cassettes or panels connection

Female (without pins) - Directly connects to transceivers or other male connectors

Technical Specifications

Performance Level	Standard	Elite	Standard		Elite
Performance Level	Standard	Elite	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP MM OM5	8F/APC	8F/APC	≤0.50	≥20	≤0.35	≥20
	12F/APC	12F/APC	≤0.50	≥20	≤0.35	≥20
	24F/APC	24F/APC	≤0.50	≥20	≤0.35	≥20
	8F/PC	8F/PC	≤0.50	≥20	≤0.35	≥20
	12F/PC	12F/PC	≤0.50	≥20	≤0.35	≥20
	24F/PC	24F/PC	≤0.50	≥20	≤0.35	≥20
