12 / 24 Cores Patch Cable Series MTP MPO Cable OM3 OM4 OM5 3.0mm

Name: 12 / 24 Cores Patch Cable Series MTP MPO Cable OM3 OM4 OM5 3.0mm
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: patch
Price: 744.89 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	patch
MOQ:	1pc
Price:	Negotiable
Delivery Time:	2-7 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Model Number:

MPO Patch Cord

Use:

FTTX

Length:

Customized Lengths(1m/2m/3m...+1

Connector:

MPO

Insertion Loss:

IL<0.2db

Certification:

RoHS

Warranty Time:

12 Months

Outer Jacket:

LSZH,OFNP ,OFNR

Packaging Details:

2pcs in a foam with plastic Box

Supply Ability:

50000pcs per month

Highlight:

MTP MPO Patch Cable Series

OM3 MTP MPO Cable

3.0mm MTP MPO Cable

Product Description

Factory LC OM3/OM4 8/12/24f MPO/MTP fiber optic patch cord MPO

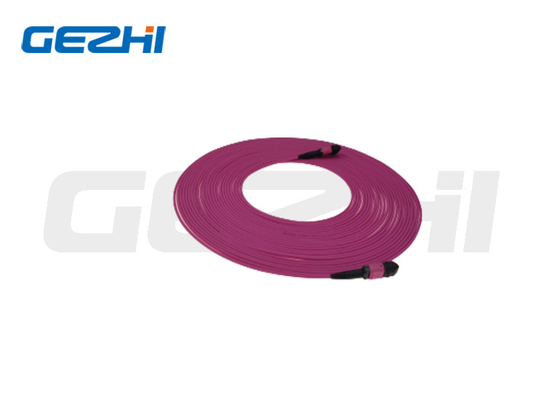

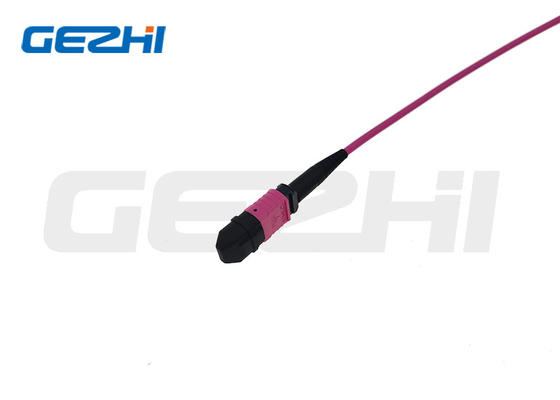

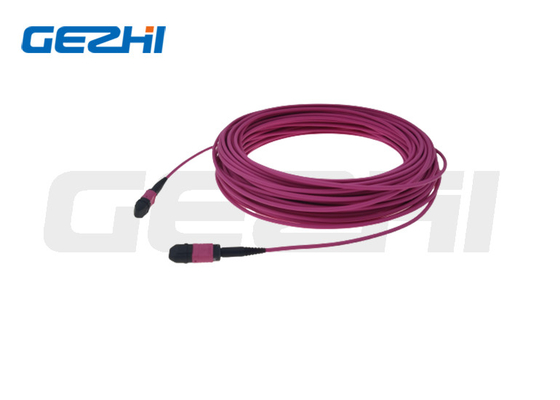

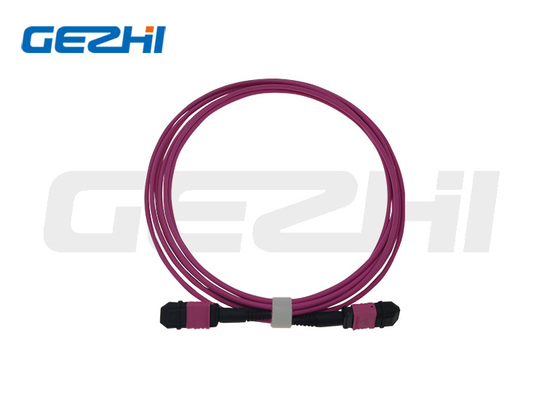

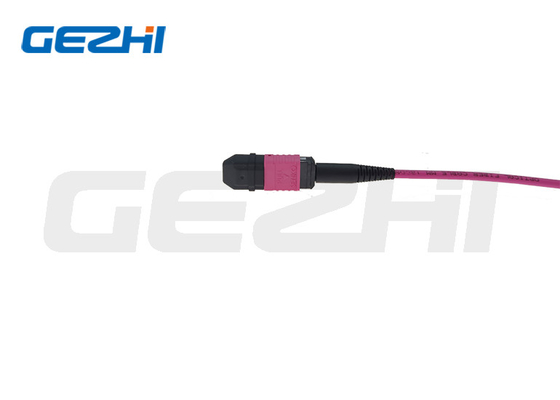

Product View

With the development of 5G, in order to meet the high density,high efficiency,high speed and large capacity optical cable network cabling system requirements, MPO/MTP products are being widely used in the application.

Features

Cable diameter normal is 3.0mm round cable, we also have flat cable, 4.5mm double shealth cable, armoured cable, ect.
MPO/MTP patch cord has A type, B type, and C type ( fiber arrangement).
MTP/MPO connector type available in Male and Female.
MPO Female connector is without PIN, MPO male connector with PIN.
Fiber type available in single-mode (G652D, G657A1, G657A2), multi mode (OM3, OM4, OM5).
MPO MTP connectors Insertion loss type: available in Standard, Elite / Low Loss.
MPO/MTP connector types have 4/8/12/16/24/32/48 fiber.

Applications

Data Center

Optical System Access network

Storage area networking

40GbE & 100GbE protocol

Specification

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	MM OM4	8F/APC	≤0.50	≥20	≤0.35	≥20
		12F/APC	≤0.50	≥20	≤0.35	≥20
		24F/APC	≤0.50	≥20	≤0.35	≥20
		8F/PC	≤0.50	≥20	≤0.35	≥20
		12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20

Order Information

Type

Mode

Fiber Count

Polarity

Grad

Connector A

Connector B

Polishing

Length

PCMPO

2=OS2

3=OM3

4=OM4

5=OM5

08=8 Fibers

12=12 Fibers

24=24 Fibers

36=3x12 Fibers

48=4x12 Fibers

96=8x12 Fibers

144=12x12 Fibers

A=Type A

B=Type B

C=Type C

S=Standard

E=Elite

M=Male

F=Female

M=Male

F=Female

P=UPC

A=APC

01=1M

02=2M

05=5M

10=10M

S=Specify

Application Diagram

1. Custom Fiber Count

12 / 24 Cores Patch Cable Series MTP MPO Cable OM3 OM4 OM5 3.0mm 0

2. Custom Polarity

To properly send data over fiber cable, a link’s transmit signal (Tx) at one end of the cable must match the corresponding receiver (Rx) at the other end. And the role of polarity, which defines the direction that the signal travels, is to make sure that this correspondence is maintained. Fiber polarity is one area that seems to cause a lot of confusion in our industry – especially when it comes to multifiber MPO solutions used in parallel optic applications.

MPO connectors also include a key on the top side of the connector and a white dot on the side to indicate the location of Position 1. The orientation of the key is critical when it comes to polarity.

There are also three different types of MPO cables – Type A, Type B and Type C as below pictures:

12 / 24 Cores Patch Cable Series MTP MPO Cable OM3 OM4 OM5 3.0mm 1

3. Custom Connectors

12 / 24 Cores Patch Cable Series MTP MPO Cable OM3 OM4 OM5 3.0mm 2

About us

12 / 24 Cores Patch Cable Series MTP MPO Cable OM3 OM4 OM5 3.0mm 3

12 / 24 Cores Patch Cable Series MTP MPO Cable OM3 OM4 OM5 3.0mm 4

Our Certificates

12 / 24 Cores Patch Cable Series MTP MPO Cable OM3 OM4 OM5 3.0mm 5

Packing

12 / 24 Cores Patch Cable Series MTP MPO Cable OM3 OM4 OM5 3.0mm 6

AFQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
