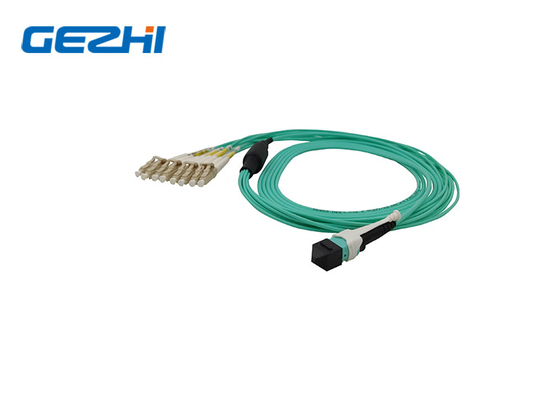

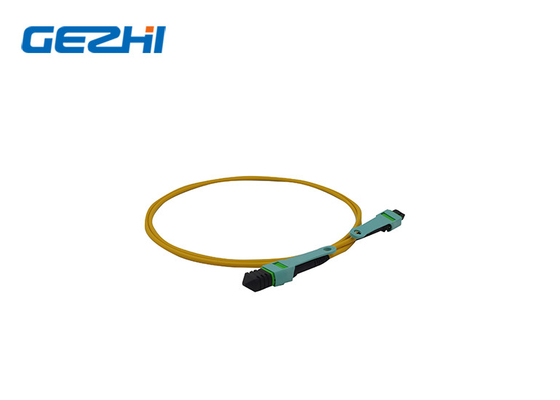

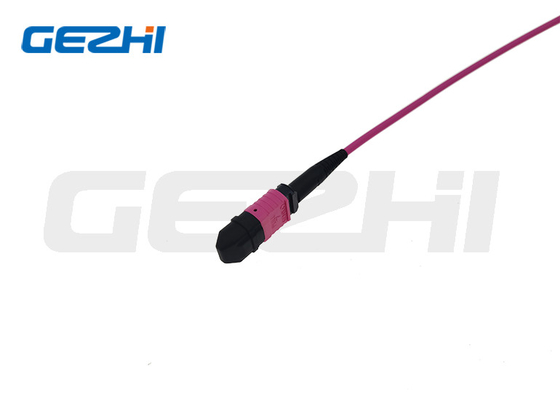

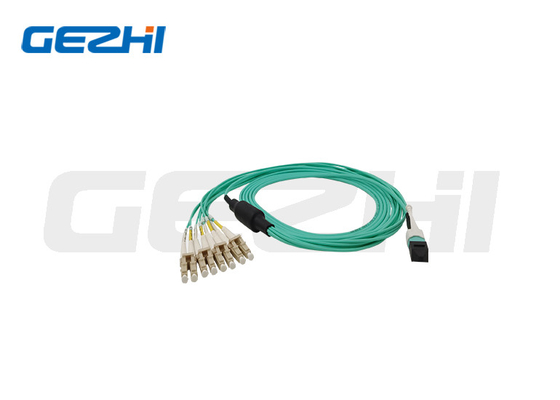

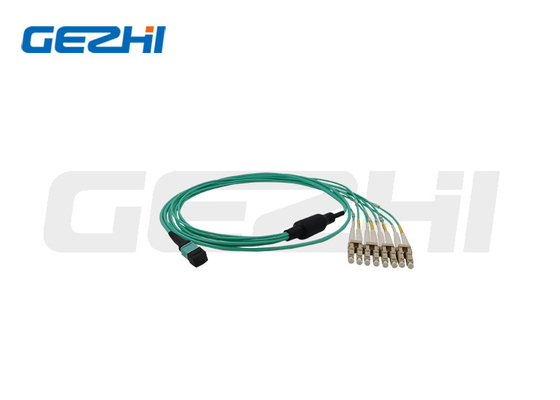

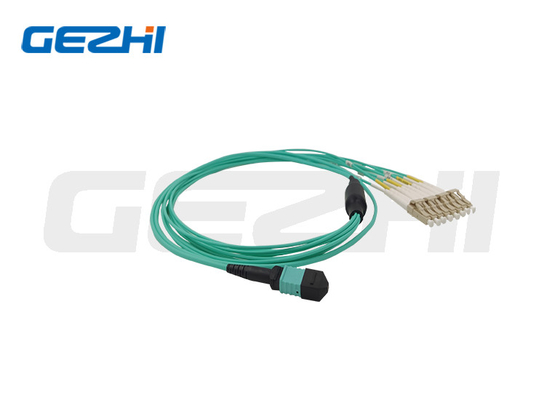

MPO OM3 Patch Cord Fiber Optic Patch Cord 12 Fiber Mpo Trunk Cable
The Fiber Optic Breakout Kit is used for the direct termination of fiber cable. The design is such that it houses and protects the bare fibers after they are exposed from the main fiber optic cables. The 2mm tubing can hold fiber up to 900um diameter and it also provides the support when the fiber is terminated to the connector giving a stronger grip between the fiber and connector preventing any easy fiber breakage. The kit is available in 2, 4, 6, 8 12 and 24 cores type. Fiber Tek is also able to offer customized breakout kit which is not mentioned in this datasheet.
Features
Low Insertion Loss
Low PDL
Compact in-line Package
High stability and Reliability
Epoxy-free on optical path
High Power
Specification
| Performance Level | Standard | Elite | ||||
| Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
| MPO/MTP | MM OM4 | 8F/APC | ≤0.50 | ≥20 | ≤0.35 | ≥20 |
| 12F/APC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
| 24F/APC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
| 8F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
| 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
| 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
Order Information
|
Ordering information
| Type | Mode | Fiber Count | Polarity | Grad | Connector A | Connector B | Polishing | Length |
| PCMPO | 2=OS2 3=OM3 4=OM4 5=OM5 |
08=8 Fibers 12=12 Fibers 24=24 Fibers 36=3x12 Fibers 48=4x12 Fibers 96=8x12 Fibers 144=12x12 Fibers |
A=Type A B=Type B C=Type C |
S=Standard E=Elite |
M=Male F=Female |
M=Male F=Female |
P=UPC A=APC |
01=1M 02=2M 05=5M 10=10M S=Specify |
Application Diagram
1. Custom Fiber Count
2. Custom Polarity
To properly send data over fiber cable, a link’s transmit signal (Tx) at one end of the cable must match the corresponding receiver (Rx) at the other end. And the role of polarity, which defines the direction that the signal travels, is to make sure that this correspondence is maintained. Fiber polarity is one area that seems to cause a lot of confusion in our industry – especially when it comes to multifiber MPO solutions used in parallel optic applications.
MPO connectors also include a key on the top side of the connector and a white dot on the side to indicate the location of Position 1. The orientation of the key is critical when it comes to polarity.
There are also three different types of MPO cables – Type A, Type B and Type C as below pictures:
3. Custom Connectors
About us
Our Certificate
Packing
AFQ
