OM5 Patch Cable Series MPO Trunk Cable For High Density Optical Connectivity

Name: OM5 Patch Cable Series MPO Trunk Cable For High Density Optical Connectivity
Brand: GEZHI or OEM
SKU: patch
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (127 reviews)

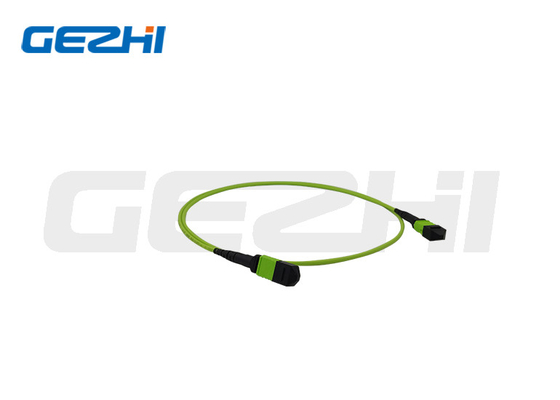

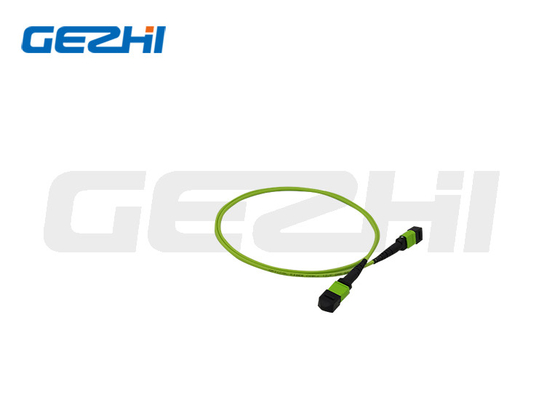

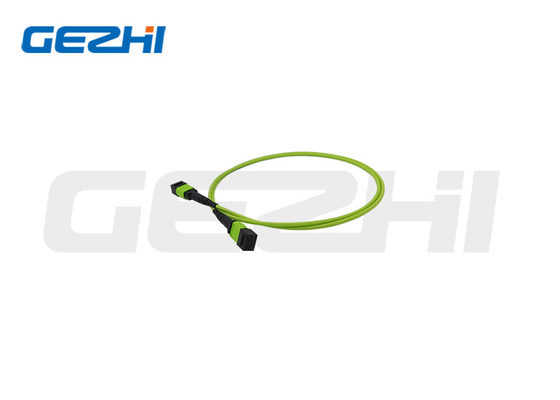

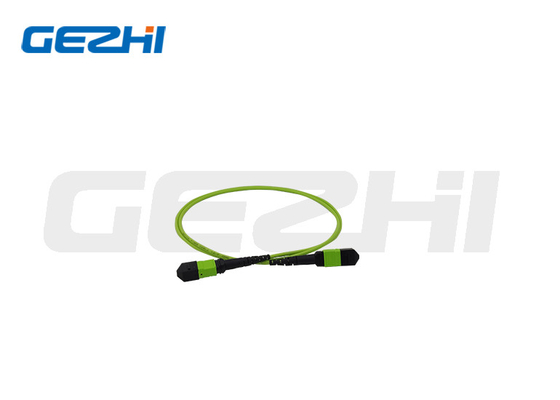

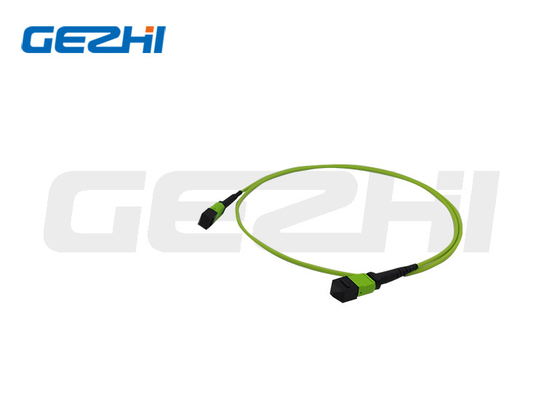

Large Image : OM5 Patch Cable Series MPO Trunk Cable For High Density Optical Connectivity

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE RoHS,ISO9001
Model Number:	patch

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	2pcs in a foam with plastic Box
Delivery Time:	2-7 work days
Payment Terms:	T/T, Western Union
Supply Ability:	50000pcs per month

Contact Now

Detailed Product Description

Model Number:	MPO Patch Cord	Use:	FTTX
Connector:	MPO	Insertion Loss:	IL<0.2db
Warranty Time:	12 Months	Outer Jacket:	LSZH,OFNP ,OFNR
Certification:	RoHS	Length:	Customized Lengths(1m/2m/3m...+1
High Light:	MPO Patch Cable Series , OM5 MPO Trunk Cable , FTTX MPO Trunk Cable

Factory LC OM3/OM4 8/12/24f MPO/MTP fiber optic patch cord MPO

Features

Laser-Optimized multimode OM4 fiber

Factory-terminated provide consistent quality, high performance and reduce installation time

•00% tested for low insertion loss performance and high back reflection

Optimized performance – available in elite MTP and discrete premium connector upon request

Applications

Data Center

Optical System Access network

Storage area networking

40GbE & 100GbE protocol

Specification

Performance Level			Standard		Elite
Connector	Mode	Endface	IL(max) (dB)	RL(min) (dB)	IL(max) (dB)	RL(min) (dB)
MPO/MTP	MM OM4	8F/APC	≤0.50	≥20	≤0.35	≥20
		12F/APC	≤0.50	≥20	≤0.35	≥20
		24F/APC	≤0.50	≥20	≤0.35	≥20
		8F/PC	≤0.50	≥20	≤0.35	≥20
		12F/PC	≤0.50	≥20	≤0.35	≥20
		24F/PC	≤0.50	≥20	≤0.35	≥20

Order Information

Type

Mode

Fiber Count

Polarity

Grad

Connector A

Connector B

Polishing

Length

PCMPO

2=OS2

3=OM3

4=OM4

5=OM5

08=8 Fibers

12=12 Fibers

24=24 Fibers

36=3x12 Fibers

48=4x12 Fibers

96=8x12 Fibers

144=12x12 Fibers

A=Type A

B=Type B

C=Type C

S=Standard

E=Elite

M=Male

F=Female

M=Male

F=Female

P=UPC

A=APC

01=1M

02=2M

05=5M

10=10M

S=Specify

Application Diagram

1. Custom Fiber Count

OM5 Patch Cable Series MPO Trunk Cable For High Density Optical Connectivity 0

2. Custom Polarity

To properly send data over fiber cable, a link’s transmit signal (Tx) at one end of the cable must match the corresponding receiver (Rx) at the other end. And the role of polarity, which defines the direction that the signal travels, is to make sure that this correspondence is maintained. Fiber polarity is one area that seems to cause a lot of confusion in our industry – especially when it comes to multifiber MPO solutions used in parallel optic applications.

MPO connectors also include a key on the top side of the connector and a white dot on the side to indicate the location of Position 1. The orientation of the key is critical when it comes to polarity.

There are also three different types of MPO cables – Type A, Type B and Type C as below pictures:

OM5 Patch Cable Series MPO Trunk Cable For High Density Optical Connectivity 1

3. Custom Connectors

OM5 Patch Cable Series MPO Trunk Cable For High Density Optical Connectivity 2

Quality Control

OM5 Patch Cable Series MPO Trunk Cable For High Density Optical Connectivity 3

Our Certificate

OM5 Patch Cable Series MPO Trunk Cable For High Density Optical Connectivity 4

Packing & Shipping

OM5 Patch Cable Series MPO Trunk Cable For High Density Optical Connectivity 5

AFQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.

Q4: What is your warranty time

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
