Product Details:
Payment & Shipping Terms:
|
| Model Number: | MPO Patch Cord | Use: | FTTX |
|---|---|---|---|
| Length: | Customized Lengths(1m/2m/3m...+1 | Connector: | MPO |
| Insertion Loss: | IL<0.2db | Certification: | RoHS |
| Warranty Time: | 12 Months | Outer Jacket: | LSZH,OFNP ,OFNR |
| Return Loss: | ≥50dB |

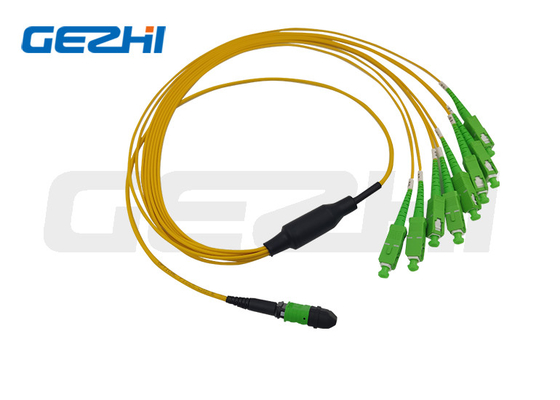

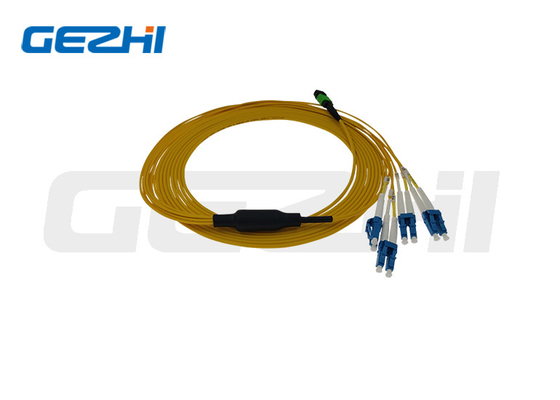

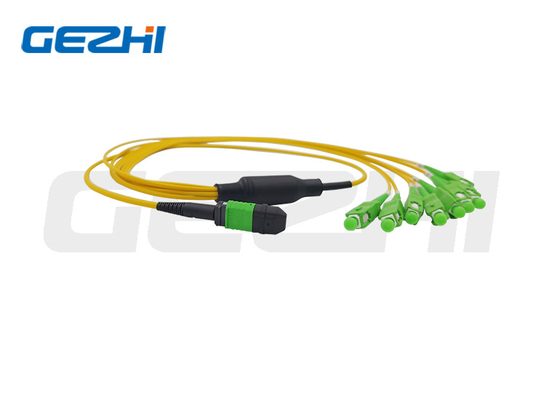

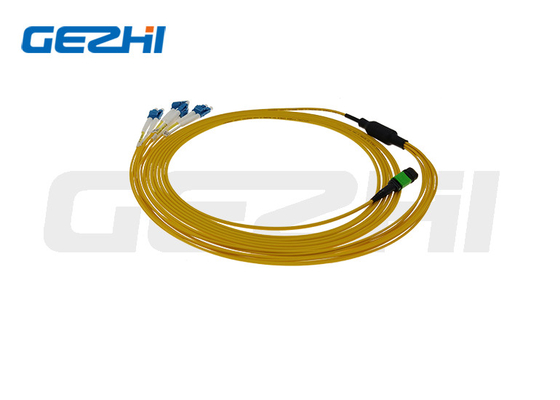

MTP/MPO Trunk Cabe 12 cores/24cores/48 cores/72cores/96 cores/144cores OS2 Optical Fiber Patch Cord
Features
|
Performance Level
|
Standard
|
Elite
|
||||
|
Connector
|
Mode
|
Endface
|
IL(max) (dB)
|
RL(min) (dB)
|
IL(max) (dB)
|
RL(min) (dB)
|
|
MPO
|
SM
|
12F
|
≤0.70
|
≥60
|
≤0.35
|
≥60
|
|
24F
|
≤0.75
|
≥60
|
≤0.35
|
≥60
|
||
|
LC/SC/FC/ST
|
SM
|
APC
|
≤0.30
|
≥60
|
≤0.10
|
≥60
|
|
UPC
|
≤0.20
|
≥50
|
≤0.10
|
≥50
|
||
Order Information
Application Diagram
1. Custom Polarity
To properly send data over fiber cable, a link’s transmit signal (Tx) at one end of the cable must match the corresponding receiver (Rx) at the other end. And the role of polarity, which defines the direction that the signal travels, is to make sure that this correspondence is maintained. Fiber polarity is one area that seems to cause a lot of confusion in our industry – especially when it comes to multifiber MPO solutions used in parallel optic applications.
MPO connectors also include a key on the top side of the connector and a white dot on the side to indicate the location of Position 1. The orientation of the key is critical when it comes to polarity.
There are also three different types of MPO cables – Type A, Type B and Type C as below pictures:
2. Custom Connectors
Our Certificates
Packing & Shipping
AFQ
Q1:Can I have a sample order? What is your MOQ?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
