4x4 Min-single Mode Fiber Optical Isolator

Brand Name:	GEZHI or OEM
Model Number:	GZ-1x1-13/15
MOQ:	1pc
Price:	Negotiable
Delivery Time:	2-7 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

4 * 4 Optical Switch

Control Type:

Non-Latching/Latching

Wavelength:

1260~1650nm

Voltage:

5V Or 3V

Feature:

High Reliability

Connector:

C/APC&FC/APC&SC/PC

Place Of Origin:

China

Port:

4x4Full

Opterating Temperature:

-10~+75

Power Handling:

SMF-28e Or Customized

Packaging Details:

2pcs in a foam with plastic Box

Supply Ability:

50000pcs per month

Highlight:

4x4 Fiber Optical Isolator

Product Description

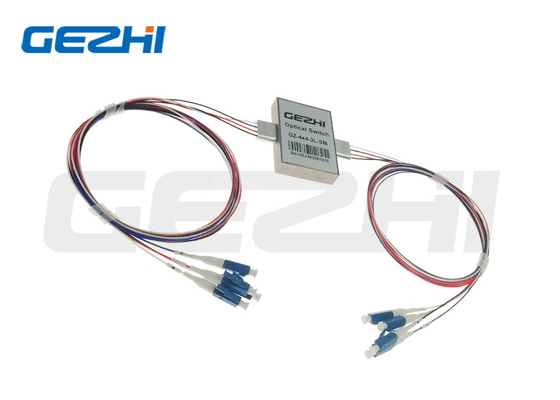

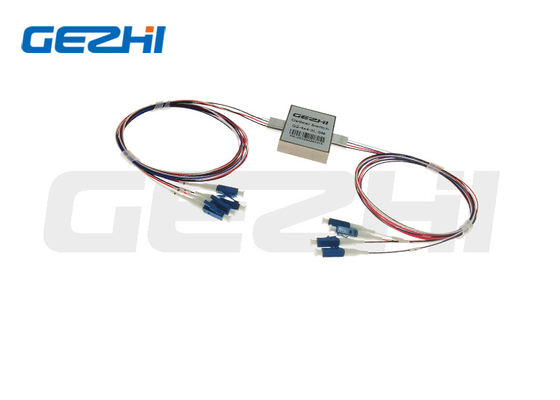

4x4 Min-single Mode Fiber Optical Isolator

4x4 Optical Switches

GEZHI Photonics’ 4×4 Mechanical Fiber Optic Switch (4×4 Optical Switch) support all wavelength at 1260nm~1650nm or 850nm Multimode wavelength, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.

Features

Compact design, Miniature size

Short switching time

Bi-directionalLow optical distortions

Low cross talk, Low Insertion Loss

Wide operating wavelength Range

Applications

R&D in Laboratory

System monitoring

Metropolitan Area Network

Network protection and restoration

Instrumentation, testing, and measurement

Specification

Parameters		GZ-FSW-4×4
Operating Wavelength	nm	1260~1620(SM),850(MM)
Insertion Loss	dB	≤1.0
Wavelength Dependent Loss	dB	≤0.40
Polarization Dependent Loss	dB	≤0.05
Temperature Dependent Loss	dB	≤0.20
Return Loss	dB	SM≥50 MM≥30
Cross Talk	dB	SM≥55 MM≥35
Switch Time	ms	≤8
Repeatability	dB	≤±0.02
Durability	times	≥107
Operating Voltage	V	3 or 5
Switch Type		Non-Latching/Latching
Operating Temperature	℃	－20~＋70
Storage Temperature	℃	－40~＋85
Optical Power	mW	≤500
Dimension	mm	52.7.0L×37.2W×10.0H

Pins

4x4 Min-single Mode Fiber Optical Isolator

Order Information

GZ-4×4-13/15

Mode

Wavelength

Voltage Type

Control Model

Fiber Type

Fiber Diameter

Fiber Length

Connector

S=SM
M=MM

85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others

3=3V
5=5V

L=Latching
N=Non- Latching

5=50/125
6=62.5/125
9=9/125
X=Others

25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others

1=1m
2=1.5m
X=Others

0=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC

X=Others

Optical Route

4x4 Min-single Mode Fiber Optical Isolator

Demension:

4x4 Min-single Mode Fiber Optical Isolator

Our Certificates

4x4 Min-single Mode Fiber Optical Isolator

Packing & Shipping

4x4 Min-single Mode Fiber Optical Isolator

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package
