Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optical Switches
Created with Pixso. 1X2 Mechanical optical switch 1310/ 1550nm SM 5V Non-Latching 0.5m with/without connector

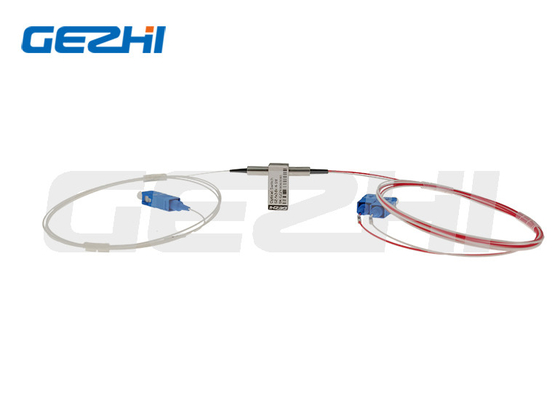

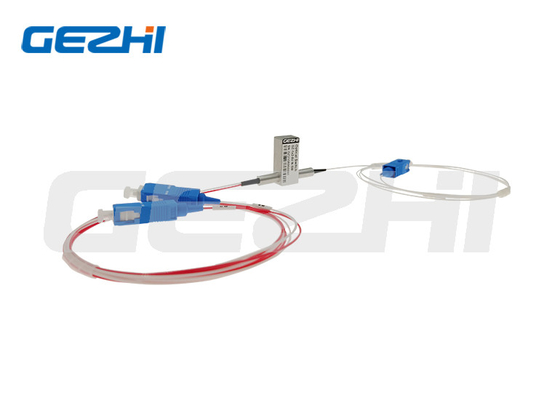

1X2 Mechanical optical switch 1310/ 1550nm SM 5V Non-Latching 0.5m with/without connector
  • name
  • name

1X2 Mechanical optical switch 1310/ 1550nm SM 5V Non-Latching 0.5m with/without connector

Brand Name: GEZHI or OEM
Model Number: 1x2 Optical Switch
MOQ: 1pc
Price: Negotiable
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Voltage:
3v~5v
Wavelength:
1260-1650nm
Name:
1x2 Optical Switch
Storage Temperature:
-40~+85℃
Operating Temperature:
-20~+80℃
Application:
System Monitoring
Packaging Details:
Paper box
Supply Ability:
100000Channel per month
Highlight:

1X2 Mechanical optical switch

,

1550nm Mechanical optical switch

,

5V Mechanical optical switch

Product Description



Optical Route

Status One Status Two



      1X2 Mechanical optical switch 1310/ 1550nm SM 5V Non-Latching 0.5m with/without connector 0




       1X2 Mechanical optical switch 1310/ 1550nm SM 5V Non-Latching 0.5m with/without connector 1






Product packaging



1X2 Mechanical optical switch 1310/ 1550nm SM 5V Non-Latching 0.5m with/without connector 2  1X2 Mechanical optical switch 1310/ 1550nm SM 5V Non-Latching 0.5m with/without connector 31X2 Mechanical optical switch 1310/ 1550nm SM 5V Non-Latching 0.5m with/without connector 4

           Finished Item           Inner Package                      Carton







Specifications

Parameters



GZ-FSW-1×2

Wavelength Range

nm

850±40 / 1300±40

1260~1650

Operating Wavelength

nm

850/1300

1310/1490/1550/1625/1650

Insertion Loss

dB

Typ:0.8  Max:1.2

Typ:0.5  Max:1.0

Return Loss

dB

MM≥30     SM≥50

Crosstalk

dB

MM≥35     SM≥55

PDL

dB

≤0.05

WDL

dB

≤0.25

TDL

dB

≤0.25

Repeatability

dB

≤±0.02

Power Supply

V

3.0  or 5.0

Lifetime

Time

≥107

Switch Time

ms

≤8

Transmission Power

mW

≤500

Operating   Temperature

℃

-20~+80

Storage Temperature

℃

-40~+85

Weight

g

16

Dimension

mm

(L)27×(W)12.0×(H)8.2






Product Overview

1X2 Mechanical optical switch 1310/ 1550nm SM 5V Non-Latching 0.5m with/without connector



1x2 Optical Switch



The 1x2 Opto-Mechanical Bi-directional Fiber Optic Switch LC/APC connector with Low insertion loss.





GEZHI 1x2 Mechanical Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber.


GEZHI 1x2 Mechanical Optical Switch support all wavelength at 1260nm~1650nm, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.









Features

Low Insertion loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching







Applications

WDM Network

Line Monitoring

Telecommunication

Testing Instrument





Tags:

Latching Optical Switch

1550nm Fiber Optical Switches

2x2 Fiber Bypass Switch

Related Products
1650nm Mechanical Non Latched 1x8 Fiber Optical Switches

1650nm Mechanical Non Latched 1x8 Fiber Optical Switches

Get Best Price
Non Blocking 1650nm 4x4 Optical Bypass Switches 2x2

Non Blocking 1650nm 4x4 Optical Bypass Switches 2x2

Get Best Price
