12 Cores Fiber Optic Patch Leads SC/PC/UPC/APC Fiber Optic Patch Cable

Name: 12 Cores Fiber Optic Patch Leads SC/PC/UPC/APC Fiber Optic Patch Cable
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 12 cores Optical Fiber Patch cable
Price: 744.89 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	12 cores Optical Fiber Patch cable
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Model Number:

12 Cores Optical Fiber Patch Cable

Type:

Fiber Optic Patch Cord

Application:

FTTH FTTB FTTX Network

Cable Length:

Customized

Warranty Time:

3 Years

No. Of Fiber:

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

12 Cores Fiber Optic Patch Leads

APC Fiber Optic Patch Leads

FTTX fiber optic patch cable

Product Description

Factory Wholesale 12 cores Fiber Optic Patch Leads Fiber Patch Cord SC/PC/Upc/Apc Optic Cable Patchcord Jumper

Product Overview

12 cores Optical Fiber Patch cable

The optical fiber patch cord is a length of optical fiber with two ends adding connectors to connect beam path.The optical fiber patch cord is one of the most commonly used fiber optic cable, it is convenient to use and cost saving,the fiber patch is widely uesed in fiber optic networks.

Applications

Telecommunication

Data Center

LAN, FTTX

CATV

Features

Riser cable or Plenum cable or LSZH cable optional;

SC, FC, LC, ST, E2000 or customized connectors optional;

Cable total length optional

Cable fan-out length on each ends optional

SM G652D, G657A1, G657A2, G657B3 fiber optional

Low insertion loss and high return loss

OEM and ODM customized productio

Product SpecifIcations

Fiber Connector Type	SC/FC/LC/ST/customized
Fiber Type	Single-mode(SM)	Multi-mode(MM)
Insertion Loss(dB)	Typical: 0.20; maximum: 0.30	Typica: 0.20; maximum: 0.30
Return Loss (dB)	PC ≥ 45, UPC ≥ 50, APC ≥ 60	NA
Operating Temperature (°C)	-40~+80 ℃

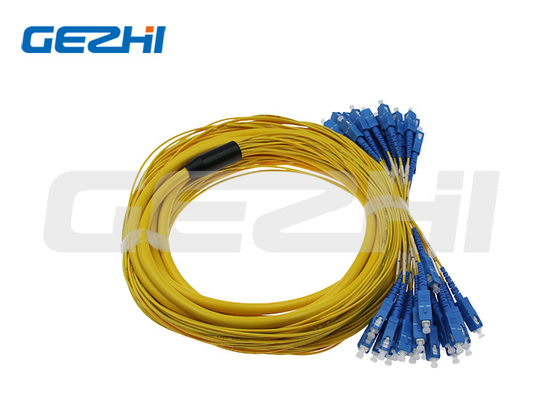

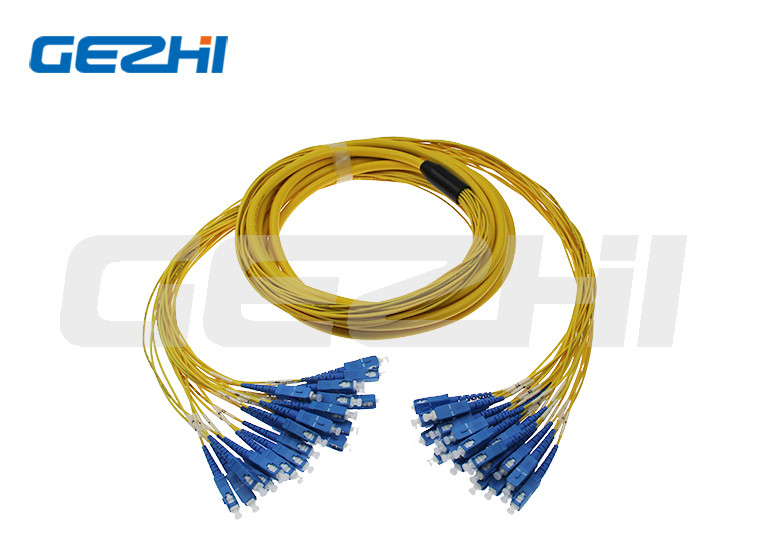

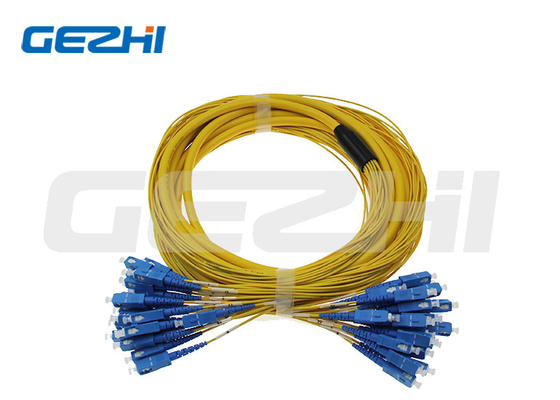

Product image

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Felix

Germany May 13.2026

Helpful (1)

As a network engineer, I'm very satisfied with this patch cord. The LC/APC connectors are well-polished, ensuring optimal signal transmission with minimal loss. It’s been running smoothly in our data center for months, with no issues at all. The LSZH jacket is also a big plus for fire safety compliance.

Milos

Chile May 11.2026

Helpful (1)

We ordered these patch cords in bulk for our infrastructure upgrade. They arrived on time, and every single one passed our testing with flying colors. The build quality is consistent, and the performance matches the specifications perfectly. Will definitely reorder!

Jane

Australia Apr 28.2026

Helpful (1)

This LC/APC simplex fiber patch cord works perfectly for our telecommunication projects. The connection is stable with extremely low insertion loss, and the return loss is excellent. The LSZH material gives us peace of mind for safety in our facilities. Great quality product, highly recommended!
