Fiber Optic 2x2F Mechanical Optical Switch

Name: Fiber Optic 2x2F Mechanical Optical Switch
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 2x2F Optical Switch
Price: 360.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	2x2F Optical Switch
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Return Loss:

SM≥50 DB

Cross Talk:

SM≥55 DB

Warranty:

3 Years

Control Type:

Latching Or Non-Latching

Connector:

APC LC SC

Application:

Configurable OADM

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

2x2F Mechanical Optical Switch

Mechanical Fiber Optic Switch

2x2F Fiber Optic Switch

Product Description

Product Package of 2x2F Optical Switch

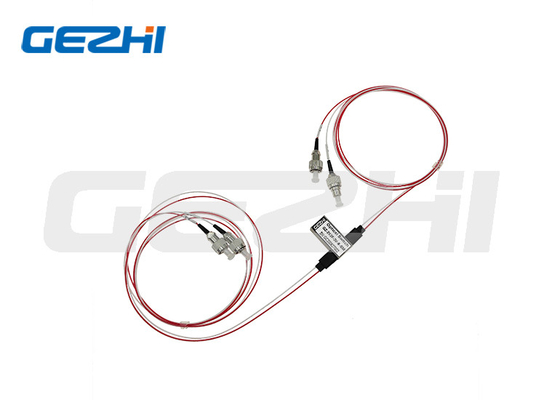

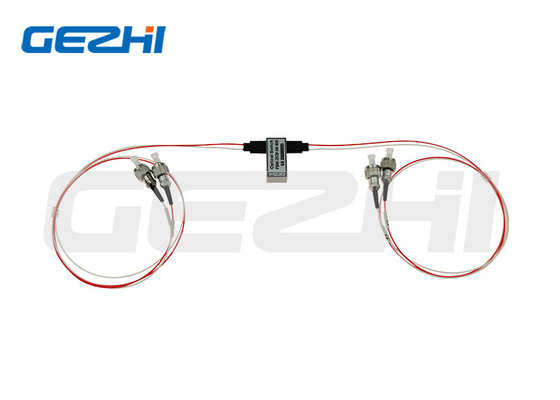

Fiber Optic 2x2F Mechanical Optical Switch 0

Finished Item

Inner Package

Carton

Similar Products

Fiber Optic 2x2F Mechanical Optical Switch 3

1x2 optical switch

1x4T optical switch

1x1 optical switch

Overview of 2x2F Optical Switch

Fiber Optic 2x2F Mechanical Optical Switch

2x2F optical switch

2×2F Optical Switch, which is famous for its high performance, low insertion loss and compact . It is an ideal component for OADM, OXC, system monitoring and protection.This is achieved using a opto- mechanical configuration and activated via an electrical control signal. The switch has integrated electrical position sensors. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.

Specifications

Parameters	Unit	GZ-2×2F
Wavelength Range	nm	850±40 / 1300±40	1260~1650
Operating Wavelength	nm	850 / 1300	1310/1550
Insertion Loss	dB	Typ:1.0 Max:1.2	Typ:0.8 Max:1.0
Return Loss	dB	MM≥30 SM≥50
Crosstalk	dB	MM≥35 SM≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.02
Power supply	v	3.0 or 5.0
Lifetime	Time	≥107
Switch Time	ms	≤8
Transmission Power	mW	≤500
OperatingTemperature	℃	-20~+70
Storage Temperature	℃	-40~+85
Weight	g	16
Dimension	mm	(L)27.0×(W)12.0×(H)8.0

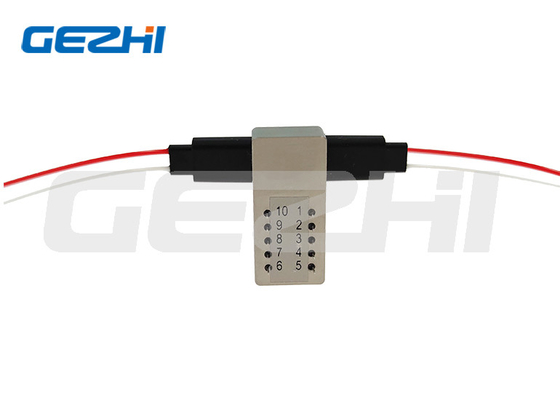

pins of 2x2F Optical Switch

Type	Optical Route	Electric Drive				Status Sensor
2×2F	channel	Pin 1	Pin 5	Pin 6	Pin 10	Pin 2-3	Pin 3-4	Pin 7-8	Pin 8-9
Latching	P1-P4,P2-P3	--	--	GND	V＋	Close	Open	Open	Close
Latching	P1-P3,P2-P4	V＋	GND	--	--	Open	Close	Close	Open
Non-latching	P1-P4,P2-P3	--	--	--	--	Close	Open	Open	Close
Non-latching	P1-P3,P2-P4	V＋	--	--	GND	Open	Close	Close	Open

Features & Application of 2x2F Optical Switch

Features

Application

Wide band operation
Low insertion loss
Low PDL
High cross talk
High stability and reliability
Path without epoxy

OADM
WAN
Laboratory
Monitory&detection

FAQ

Q1:Can I have a sample order? What is your MOQ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample of 2x2F optical switch is available.  Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
