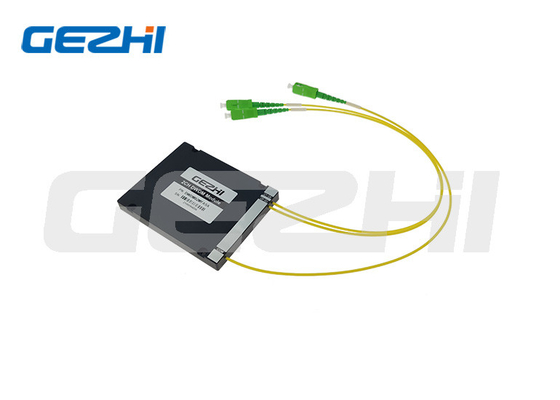

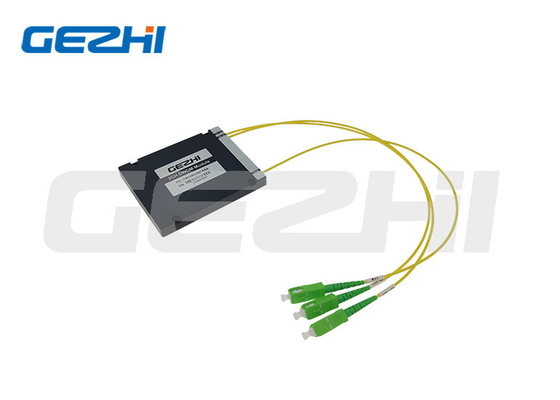

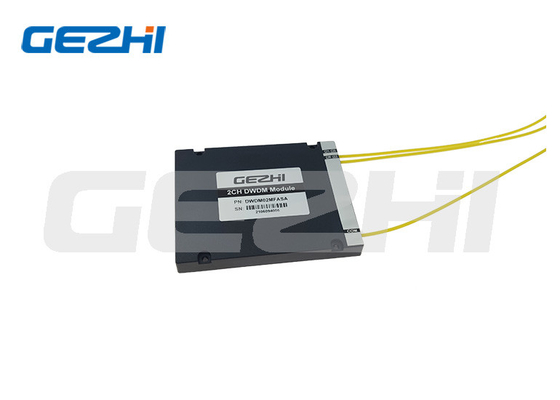

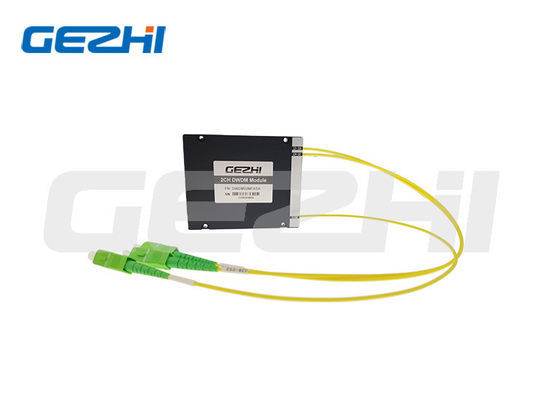

2CH Channel ABS Box DWDM Mux Demux Module Wavelength Division Multiplexer

2CH Channel ABS Box DWDM Mux Demux Module Wavelength Division Multiplexer
2CH Channel ABS Box DWDM Mux Demux Module Wavelength Division Multiplexer 2CH Channel ABS Box DWDM Mux Demux Module Wavelength Division Multiplexer 2CH Channel ABS Box DWDM Mux Demux Module Wavelength Division Multiplexer 2CH Channel ABS Box DWDM Mux Demux Module Wavelength Division Multiplexer

Large Image :  2CH Channel ABS Box DWDM Mux Demux Module Wavelength Division Multiplexer

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: DWDM04MXXX
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Contact Now
Detailed Product Description
Product Name: 2CH DWDM Channel Spacing: 20nm
Fiber Type: SMF-28e Center Wavelength: 1270~1610nm
Channel Number: 4, 8, 16, 18 Or Customized Application: Data Center



 Description of 2CH DWDM



2CH Channel ABS Box DWDM Mux Demux Module Wavelength Division Multiplexer



DWDM



 DWDM Module can solve the shortage of fiber resources and transparent   transmission of  business, and reduce the cost of network Construction. With low-cost and compact   dimension, it is mainly used in metropolitan area network and  access layer, also be used   to build networks.









 Features & Applications of 2CH DWDM

Features Applications



Low Insertion Loss

High Isolation
High Stability & Reliability
Industrial Operating Temperature
(-40~+80℃ available)

Customized Package type:
Stainless Steel tube, ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount

  Line Monitoring
 WDM Network
 Telecommunication
 DATA Center







 Specifications of 2CH DWDM

Parameter
Unit
DWDM Mux Demux
Channel Spacing
nm
20nm
Center Wavelength
nm
1270~1610 or 1271~1611
Channel Passband
nm
±6.5
Channel Number
/
4CH
8CH
16CH
Insertion Loss
dB
<1.5
<2.5
<5.5 or <3.5(with skip)
Isolation @Adjacent Channel
dB
>30
Isolation @Non-adjacent Channel
dB
>40
Isolation @Express Port
dB
>15
Polarization Dependent Loss
dB
<0.2
Polarization Mode Dispersion
dB
<0.1
Directivity
dB
>50
Return Loss
dB
UPC >45 APC>50
Power Handling
mW
<500 (High Power type available)
Fiber Type
/
SMF-28e (Polarization Maintaining Type available)
Operating Temperature
℃
-20~+75 (-40~+85 available)
Storage Temperature
℃
-40~+85
Package Type
mm
ABS Box, ABS Plug-in Module, LGX Chassis, Rackmount










 Similar Products

  2CH Channel ABS Box DWDM Mux Demux Module Wavelength Division Multiplexer 0  2CH Channel ABS Box DWDM Mux Demux Module Wavelength Division Multiplexer 1   2CH Channel ABS Box DWDM Mux Demux Module Wavelength Division Multiplexer 2



8CH CWDM Mux Demux
ABS box LC/UPC pigtailed



 10Gbps DWDM transceiver
40km distance 		T1625nm Filter WDM
with SC/UPC connector









 FAQ

Q1:Can I have a sample order? What is your MOQ of 2CH CWDM?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
