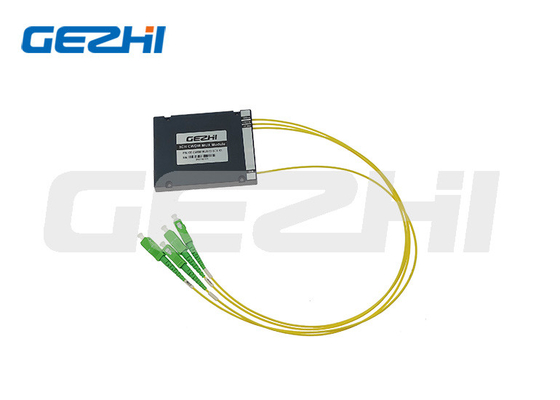

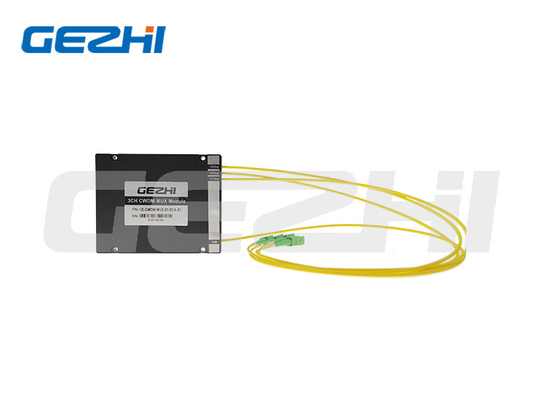

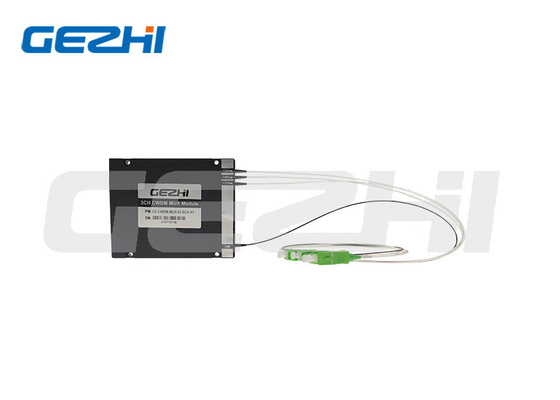

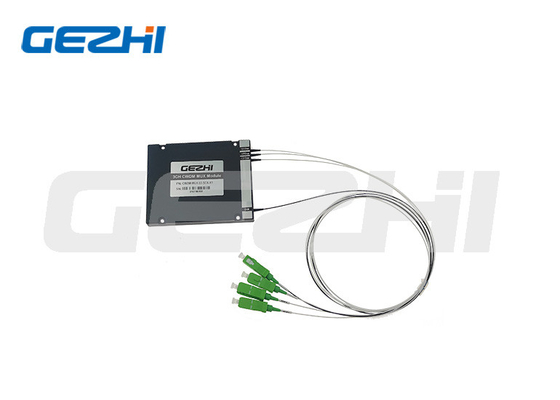

3CH CWDM Mux Module ABS Box with customized wavelength and connector

3CH CWDM Mux Module  ABS Box with customized wavelength and connector
3CH CWDM Mux Module  ABS Box with customized wavelength and connector 3CH CWDM Mux Module  ABS Box with customized wavelength and connector 3CH CWDM Mux Module  ABS Box with customized wavelength and connector 3CH CWDM Mux Module  ABS Box with customized wavelength and connector

Large Image :  3CH CWDM Mux Module ABS Box with customized wavelength and connector

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: CWDM04MXXX
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Product Name: 3CH CWDM Channel Spacing: 20nm
Fiber Type: SMF-28e Center Wavelength: 1270~1610nm
Channel Number: 4, 8, 16, 18 Or Customized Application: Data Center



 Description of 3CH CWDM



3CH CWDM Mux Module ABS Box with customized wavelength and connector



CWDM



 CWDM DEMUX Module ABS box 1470-1610nm with SC/APC Connector is based on   dielectric thin-film technology designed for integration in low cost Metro and Access   networks. These include applications such as fiber to the home, business or curb. The   module enables 4 or 8 or 16 channels to be either combined or separated.CWDM module   has low insertion loss, high channel isolation, and flat passband. Additional filters, to   enable cascading of devices, or addition of 1310nm or other wavelength, can also be   included in the module.









 Features of 3CH CWDM

Wide Operation Range: 1290-1350nm, 1470- 1610nm



Low Insertion Loss



Wide Pass Band



High Channel Isolation



Operating Temperature: -10 to 70ºC







 Specifications of 3CH CWDM

Parameter 1x2 1x4 1x8 1x18
Mux Demux Mux Demux Mux Demux Mux Demux
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±6.5
Operating Wavelength (nm) 1260~1620
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) ( Grade) <0.9 <1.3 <2.5 4.8 with skip<3.5
Isolation(dB) Adjacent Channel 30
Non-Adjacent Channel 45
Ripple (dB) 0.3 0.3 0.5 0.5
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -5~+85
Storage Temperature (℃) -40~85
BOX Package (mm) 100*80*10 120*80*18
LGX Package 1U, 2U
19" Rack mount Package 1U


Note: 1. Customized specifications is available.

Specified without connector, If with connector, IL will increase 0.2dB.







 Optical Path

Single Fiber Bidirectional Transmission

The wavelength of TX and RX is

Different



Dual Fiber Bidirectional Transmission

The wavelength of TX and RX can be Same or Different

 3CH CWDM Mux Module  ABS Box with customized wavelength and connector 0



CWDM systems can transport 18 wavelengths (1270~1610nm) with a channel spacing of 20nm. In custom application typically use 1470 to 1610nm in the spectrum grid. Compare with DWDM, CWDM has a wider channel spacing than DWDM.



3CH CWDM Mux Module  ABS Box with customized wavelength and connector 1









 FAQ

Q1:Can I have a sample order? What is your MOQ of 3CH CWDM?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
