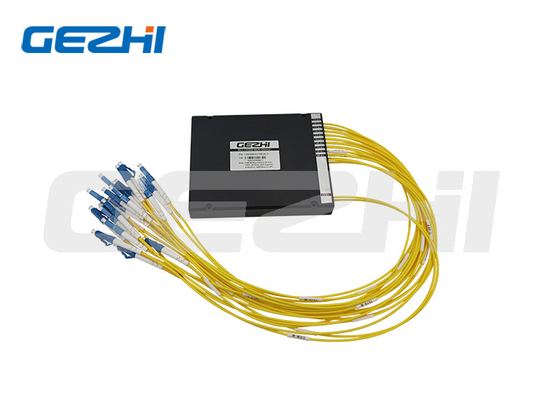

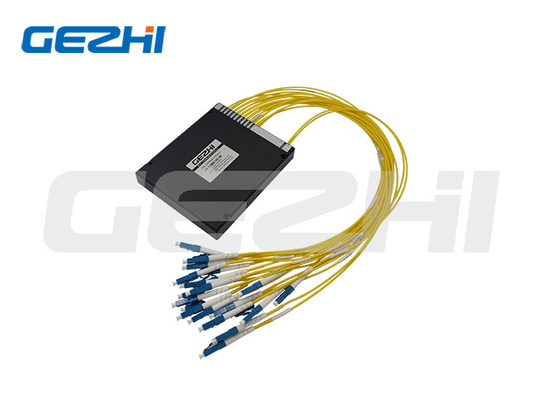

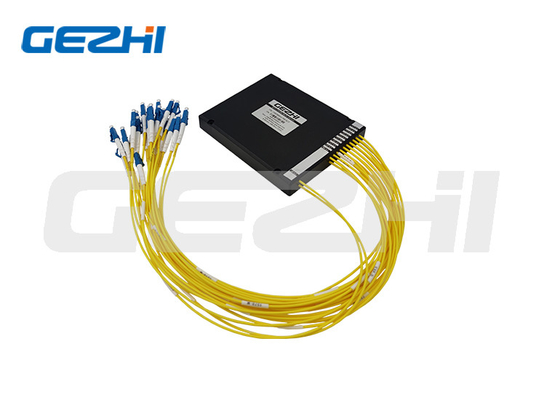

Dual fiber 8ch Optical Module Cwdm Mux and Demux Multiplexer

Dual fiber 8ch Optical Module Cwdm Mux and Demux Multiplexer
Dual fiber 8ch Optical Module Cwdm Mux and Demux Multiplexer Dual fiber 8ch Optical Module Cwdm Mux and Demux Multiplexer Dual fiber 8ch Optical Module Cwdm Mux and Demux Multiplexer

Large Image :  Dual fiber 8ch Optical Module Cwdm Mux and Demux Multiplexer

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: CWDM04MXXX
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Detailed Product Description
Product Name: 8CH CWDM Fiber Connector: LC/UPC, FC/APC, SC/APC Etc.
Channel Number: 4, 8, 16, 18 Or Customized Fiber Type: SMF-28e
Center Wavelength: ITU Grid Application: Metro/Access Networks



 Description of 8CH CWDM



Dual fiber 8ch Optical Module Cwdm Mux and Demux Multiplexer



CWDM



 GEZHI's 8 CH Coarse WDM Mux Demux Module 1470~1610 + wide 1310nm is ABS   module with SC/APC pigtailed. This 8 CH Coarse WDM Mux Demux Module 1470~1610   +wide 1310nm can solve the shortage of fiber and transparent transmission of business,   and reduce the cost of network building. With low-cost, low power consumption and small   compact, it is widely used in access layer and metro aggregation to do transmission on a   short time.













 Features & Applications of 8CH CWDM

Features:

Ultra low insertion loss

Wide pass band

high channel isolation

Protocal and rate transparent for applications up to 10Gbps





Applications:

WDM network

Access Network

Line monitoring

Telecommunication





 Specifications of 8CH CWDM

Parameter 8CH Mux or Demux
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±6.5
Operating Wavelength (nm) 1470~1610nm + Wide 1310nm
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) <2.8dB
Isolation(dB) Adjacent Channel 30
  Non-Adjacent Channel 45
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -40~85
Connector SC/APC
BOX Package (mm) ABS box 100x80x10


Note: 1. Customization is available.

2. Specification maybe changed without notice.







8 CH Coarse WDM Mux Demux Module 1470~1610 + wide band 1310nm

Filter cascading

Dual fiber 8ch Optical Module Cwdm Mux and Demux Multiplexer 0







8 CH Coarse WDM Mux Demux Module 1470~1610 + wide band 1310nm

Single Fiber transmission


Dual fiber 8ch Optical Module Cwdm Mux and Demux Multiplexer 1




 Package of 8CH CWDM
Dual fiber 8ch Optical Module Cwdm Mux and Demux Multiplexer 2









 FAQ

Q1:Can I have a sample order? What is your MOQ of 8CH CWDM?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
