WDM1R GPON /XGS-PON Filter WDM Multiplexer Cassette for DATA center

Brand Name:	GEZHI or OEM
Model Number:	CEX02A0XX
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

WDM1R Multiplexer

Wavelength:

GPON And XGS-PON

Fiber Connector:

SC/UPC

Channel Number:

4, 8, 16, 18 Or Customized

Fiber:

Simplex

Application:

WDM Systems

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

DATA center Filter WDM

GPON Filter WDM

Product Description

Description of WDM1R GPON / XGS-PON Filter WDM Multiplexer

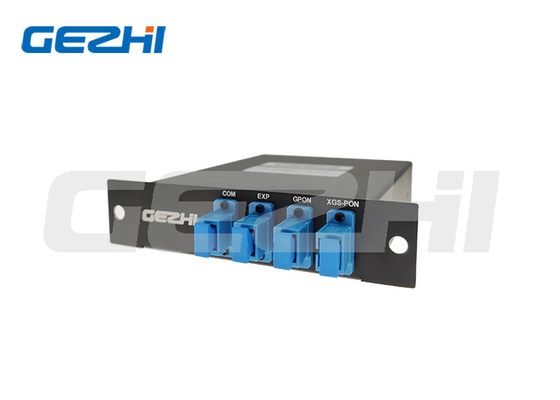

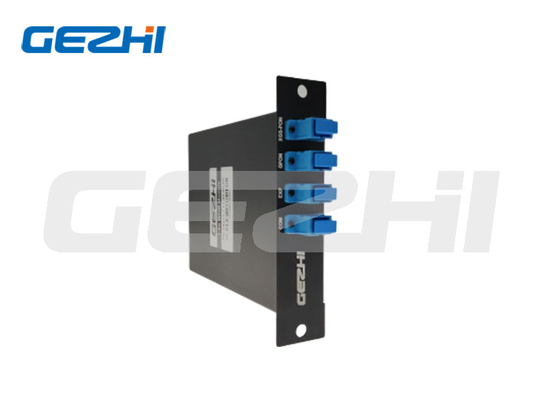

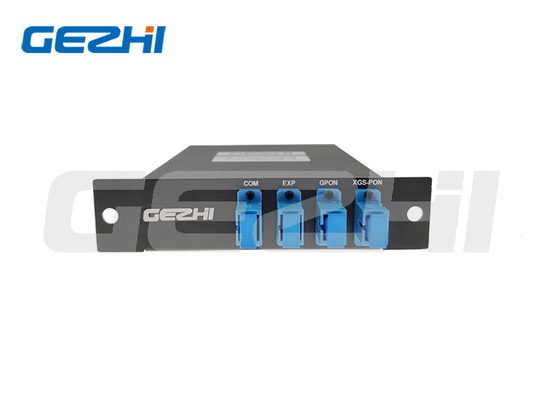

WDM1R GPON /XGS-PON Filter WDM Multiplexer Cassette for DATA center

GPON XGS-PON WDM Module

Our CEX WDM series is designed for next generation passive optical networks (NGPON), a new optical access system that coexists with GPON on the same ODN. These WDM devices, including GPON, XGS-PON, RF video, and OTDR combiners, are designed to accommodate NGPON1 and NGPON2 TWDM wavelengths to maximize the density and enhance the speed of optical distribution network.

Features & Applications of WDM1R GPON / XGS-PON Filter WDM Multiplexer

Features:

Low Insertion Loss

High channel isolation
RoHS Compliant
Available with customized functionalities


Applications:

WDM systems
PON SYSTEM
FTTH access networks
optical telecommunication networks

Specifications of WDM1R GPON / XGS-PON Filter WDM Multiplexer

Parameter	Unit	WDM1R Multiplexer
Channel Number	/	3
Center Wavelength	nm	GPON Port: 1290~1330&1480~1500 XGS-PON Port: 1260~1280&1575~1580 Express Port
Insertion Loss	dB	≤1.2
Isolation	dB	≥30
Returen Loss	dB	≥45
Directivity	dB	≥50
Polarization Dependent Loss	dB	≤0.2
PMD	ps	≤0.15
Power Handling	mW	≤500
Operating Temperature	℃	-5 to +75
Storage Temperature	℃	-40 to +85

Wavelength of the Coexistence Elemet (CEx) Multiplexer

Protocl/Service	Wavelength
G-PON Band	1290~1330, 1480~1500nm
XGS-PON Band	1260~1280, 1575~1580nm
NG-PON2 Band	1524~1544, 1596~1625
RF Video Band	1540~1565nm
PtP WDM-PON Band	1610~1625nm
OTDR Monitor Band	1640 - 1660nm

CEx Multiplexer Module Rackmount Package

FAQ

FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer of WDM1R GPON / XGS-PON Filter WDM Multiplexer. We can do OEM/ODM business.
Q: How long is your delivery time?
A: General delivery time: 5~14 days.
Q: What is your terms of payment?
A: 100% T/T inadvance.
Q: What is the warranty ?
A: 3years warrangty time.
Q: How can I get your catalogue and price list?
A: Please let us know your email or contact us from website directly for our catalogue and price list;

Any questions,please feel free to contact us,we will provide quality services for you.
