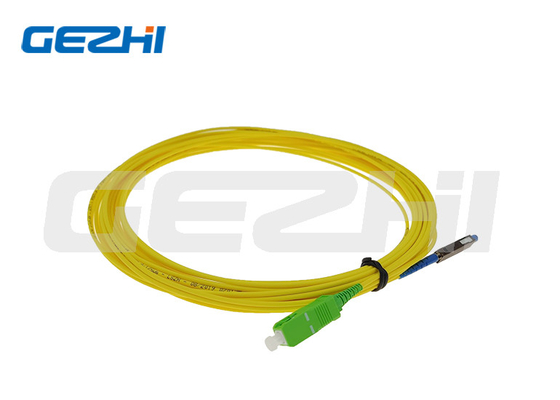

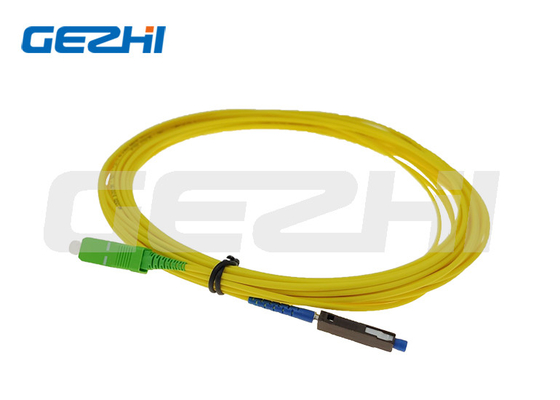

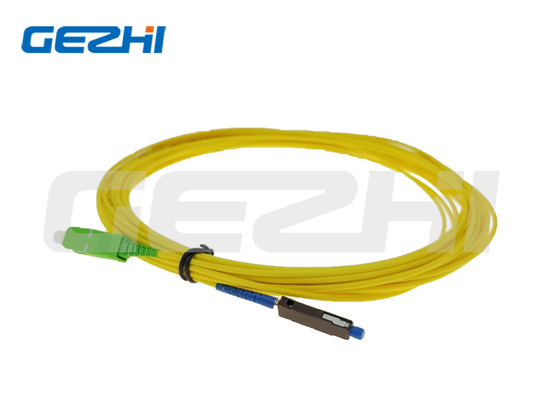

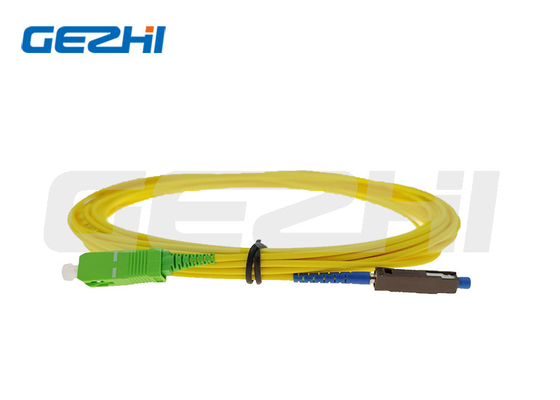

Simplex MU To SC Connector Fiber Patch Cord Patch Cable Series For Data Network

Simplex MU To SC Connector Fiber Patch Cord Patch Cable Series For Data Network
Simplex MU To SC Connector Fiber Patch Cord Patch Cable Series For Data Network Simplex MU To SC Connector Fiber Patch Cord Patch Cable Series For Data Network Simplex MU To SC Connector Fiber Patch Cord Patch Cable Series For Data Network Simplex MU To SC Connector Fiber Patch Cord Patch Cable Series For Data Network

Large Image :  Simplex MU To SC Connector Fiber Patch Cord Patch Cable Series For Data Network

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: MU to SC Patch Cord
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Contact Now
Detailed Product Description
Fiber Type: SM Or MM Or Customized Cable Length: 1,2,3 Meter Or Customized
Warranty Time: 3 Years Use: Data Center
Application: FTTH/Test Equipments/TV/LAN/Telecommunication
High Light:

Simplex Fiber Patch Cord

,

MU To SC Fiber Patch Cord

,

FTTH Patch Cable Series

Good Price Simplex MU to SC Connector Fiber Patch Cord for Data Network



Description

A patch cord is a fiber optic cable used to attach one device to another for signal routing.
MU is a small form factor SC. It has the same push/pull style, but can fit 2 channels in the same footprint of a single SC.

Simplex MU To SC Connector Fiber Patch Cord Patch Cable Series For Data Network 0

Application

Video transmission, Data transmission
Premise Installations
Industrial, medical & military
Systems Integration for Long Haul, Metro and Access Network
FTTH, CATV, LAN, MAN, WAN, Test &Measuremen
Active Device Termination
Telecommunication and Data processing Networks



Features
1.High dense connection, easy for operation
2.Good in repeatability and exchangeability
3.High credibility and stability
4.Low insertion loss, high return loss



Specification​

Parameter Unit FC, SC, LC ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insertion loss(typical) dB ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3
Return loss dB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Operating wavelength nm 1310, 1510 1310, 1510 1310, 1510 1310, 1510
Exchangeability dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Operating temperature ℃ -40~75 -40~75 -40~75 -40~75
Storage temperature ℃ -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9 φ3.0, φ2.0, φ0.9
