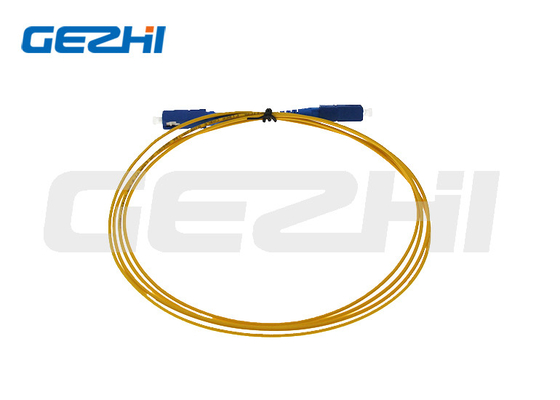

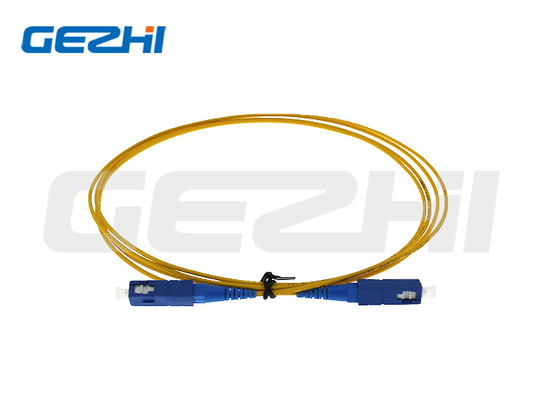

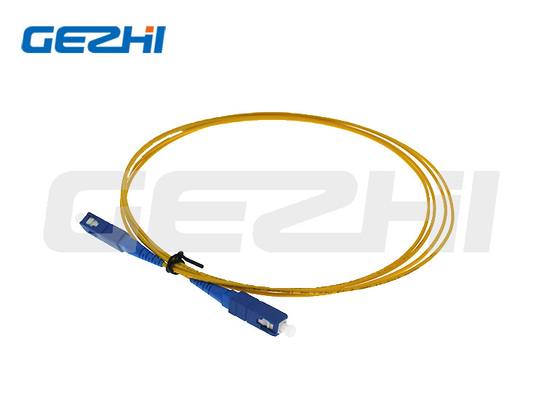

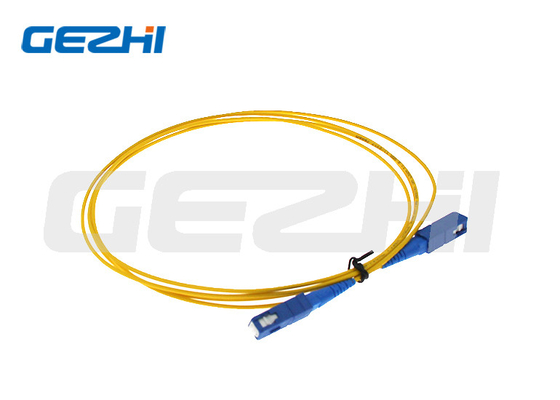

Simplex LSZH Fiber Optic Patch Cord SC / UPC To SC / UPC For LAN / CATV

Brand Name:	GEZHI or OEM
Model Number:	SC / UPC Patch Cord
MOQ:	1pc
Price:	Negotiable
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Fiber Type:

SM Or MM Or Customized

Warranty Time:

3 Years

Cable Length:

1,2,3 Meter Or Customized

Application:

FTTH/Test Equipments/TV/LAN/Telecommunication

Use:

Data Center

Core:

Simplex, Duplex

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

LSZH Fiber Optic Patch Cord

Simplex Fiber Optic Patch Cord

CATV Simplex Fiber Optic Patch Cord

Product Description

High Reliability SC / UPC to SC / UPC Simplex LSZH Fiber Optic Patch Cord for LAN , CATV

Description

Gezhi offers many choices of different lengths, jacket materials, and cable diameters. Fiber optic patch cables are commonly used in carrier equipment, telecommunications, patch field, and CATV applications. They are manufactured using high-quality material and are strictly tested for insertion and return loss to ensure superior performance and quality, which is ideal for fiber cabling infrastructure.

Simplex LSZH Fiber Optic Patch Cord SC / UPC To SC / UPC For LAN / CATV

Application

LAN, CATV
Fiber optic data transmission
Fiber optic testing system
Fiber optic communcation system

Features
1.Good repeatability,interchangeability
2.10G fiber,Low Smoke and Zero Halogen can be cho
3.Low insertion loss,high return loss,high reliability
4.Any diameter of fiber can be chose ,0.9mm,2mm,3mm ,

5.In line with Telcordia GR-326-CORE standard

Specification

Characteristic	SM , MM
Connector type	FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm)	0.9,2.0,3.0
Polishing grade	SM PC	MM PC	UPC	APC
Insertion loss	≤0.3dB	≤0.4dB	≤0.2dB	≤0.3dB
Return loss	≥40dB		≥50dB	≥65dB
Interchangeability	≤0.2dB
Repeatability	≤0.2dB
Operation temperature	-40~+80
