12CH CWDM Mux Cassette Module LC/UPC Fiber Connector For WDM Network

Name: 12CH CWDM Mux Cassette Module LC/UPC Fiber Connector For WDM Network
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: CWDM04MXXX
Price: 399.98 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	CWDM04MXXX
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

12CH CWDM Mux

Channel Number:

4, 8, 16, 18 Or Customized

Fiber Connector:

LC/UPC

Channel Spacing:

20nm

Application:

Data Center

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

CWDM Mux Cassette Module

12CH CWDM Mux

WDM Network CWDM Mux

Product Description

Description of 12CH CWDM Mux

12CH CWDM Mux Cassette Module for WDM Network

12CH CWDM Mux Module

12 CH CWDM Mux/Demux (optical multiplexer/demultiplexer) Module are considered as a cheaper and simpler alternative to DWDM systems for metro access network applications. Since CWDM Mux/Demux systems have wide channel spacing (20 nm), they do not require precise wavelength control for transmitter lasers. Thus, cost-effective non-cooled lasers as well as lower-cost passive components may be used for CWDM Mux or Demux systems. GEZHI Photonics supplies a variety of WDM devices and are promoting higher speed and more reliable optical network.

Features & Applications of 12CH CWDM Mux

Features:

Low insertion loss
Bi-directional

Can be insert on 3U Rackmount Equipment

Can be used as multiplexer or de-multiplexer

Applications:

Cellular Application
Event production

Line Monitoring
Dark fiber networks

CWDM networks
Broadcast contribution networks

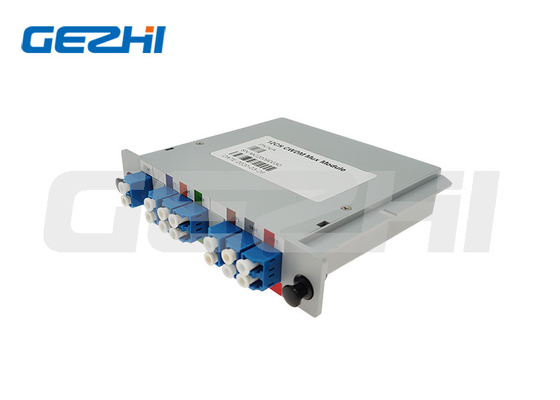

12CH CWDM Mux Cassette Module LC/UPC Fiber Connector For WDM Network 0

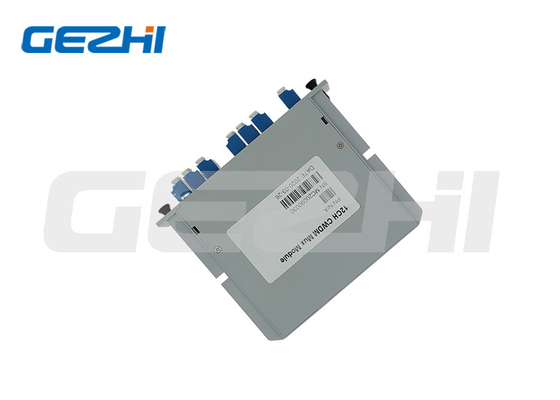

12CH CWDM Mux Cassette Module LC/UPC Fiber Connector For WDM Network 1

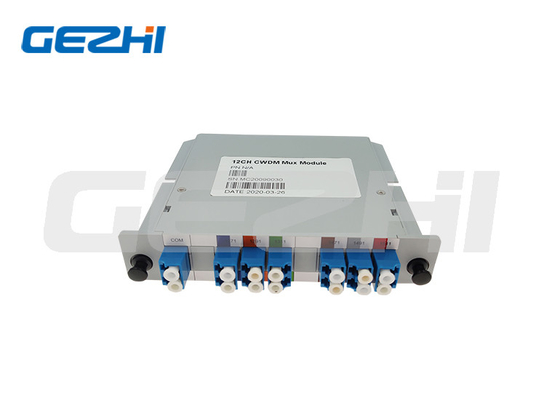

12CH CWDM Mux Cassette Module LC/UPC Fiber Connector For WDM Network 2

Specifications of 12CH CWDM Mux

Parameter		Unit	1x12 CWDM Module
			Mux	Demux
Channel Wavelength		nm	1271~1571nm
Center wavelength Accuracy		nm	±0.5
Channel Spacing		nm	20
Channel Passband (@-0.5dB bandwidth		nm	>14
Max Insertion Loss		dB	<3.0	<3.0
Channel Ripple		dB	0.3
Isolation	Adjacent	dB	>30
	Non-adjacent	dB	>40
Inertion Loss Temperature Sensitivity		dB/℃	<0.005
Wavelength Temperature Shifting		nm/ ℃	<0.002
Polarization Dependent Loss		dB	<0.1
Polarization Mode Dispersion		dB	<0.1
Directivity		dB	>50
Return Loss		dB	>45
Maximum Power Handling		mW	300
Opterating Temperature		℃	-5~+75
Storage Temperature		℃	-40~85
Package dimension		mm	L130x100x125

Note: 1. Customization is available.

2. Specified with connector

Odering Information

CWDM

XXX

Number of Channels

Module type

Cable type

Fiber length

Input connector

Output

connector

CWDM

01=1Channel
02=2 Channel
03=3 Channel
04=4 Channel
......
16=16Channel
17=17Channel
18=18Channel

0=100x80x10 mm
1=142x102x14.5 mm
2=LGX Box
3=19″1U Rack
X=Others

00=none
09=900um
Loose tube
20=2.0mm
30=3.0mm

05=0.5m
10=1.0m
15=1.5m
30=3.0m
40=4.0m
50=5.0m
......

0=none
LP=LC/UPC
LA=LC/APC
SP=SC/UPC
SA=SC/APC
FP=FC/UPC
FA=FC/APC
X=Customized

12CH CWDM Mux Module

12CH CWDM Mux Cassette Module LC/UPC Fiber Connector For WDM Network 3
