FTTH Armored Patch Cord OM1 Duplex Jumper SC/LC/FC/ST Fiber Optic Patch Cord

FTTH Armored Patch Cord OM1 Duplex Jumper SC/LC/FC/ST Fiber Optic Patch Cord
FTTH Armored Patch Cord OM1 Duplex Jumper SC/LC/FC/ST Fiber Optic Patch Cord FTTH Armored Patch Cord OM1 Duplex Jumper SC/LC/FC/ST Fiber Optic Patch Cord

Large Image :  FTTH Armored Patch Cord OM1 Duplex Jumper SC/LC/FC/ST Fiber Optic Patch Cord

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: Fiber optic patch cord
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: 2pcs in a foam with plastic Box
Delivery Time: 2-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 50000pcs per month
Detailed Product Description
Application: Telecom Network Model Number: LC UPC-LC UPC-SM-DX
Use: FTTx Solutions Insertion Loss: <0.2dB
Cable Length: 1m 3m 5m Or Customized Warranty Time: 3 Year
Return Loss: UPC>50dB;APC>60dB Tensile Strength(N): ≥90(3.0mm );≥70(0.9mm 2.0mm)
Cable Diameter: 0.9/2.0/3.0mm
High Light:

FTTH Armored Patch Cord

,

OM1 Armored Patch Cord

,

Duplex Fiber Optic Patch Cord

Ftth Armored Patchcord Om1 Duplex Jumper Sc/lc/fc/st Fiber Optic Patch Cord

Product View

The armoured fibre optic patch Cords are designed for being used in harsh environment, in which the traditional standard fibre optic patch lead can not perform structurally to the requirement.The armoured fibre optic patch leads is made with special strong connectors and armoured fiber optic leads, it can protect the cable from damage caused by twist, pressure or rodent bite.

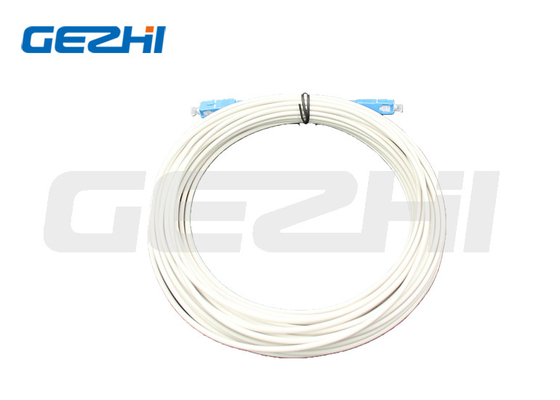

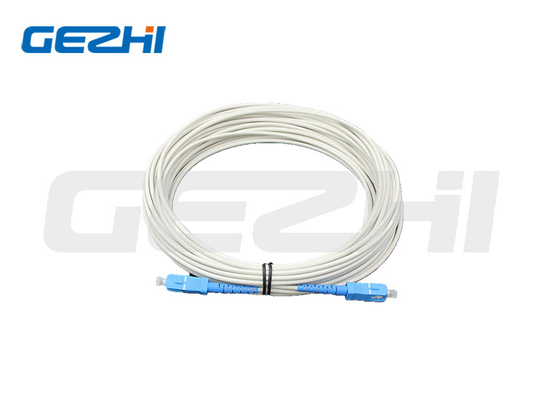

FTTH Armored Patch Cord OM1 Duplex Jumper SC/LC/FC/ST Fiber Optic Patch Cord 0FTTH Armored Patch Cord OM1 Duplex Jumper SC/LC/FC/ST Fiber Optic Patch Cord 1

Features

* Strong safeguard of optical fibers due to use of stainless steel material.
* High tensile strength, pressure resistant, retwist resistance, rodent protected.
* Easy handling similar to electrical cable and easy installation.
* Available with all types of connectors and fibers
* 100% factory terminated and tested



Applications

* Strong safeguard of optical fibers due to use of stainless steel material.
* High tensile strength, pressure resistant, retwist resistance, rodent protected.
* Easy handling similar to electrical cable and easy installation.
* Available with all types of connectors and fibers
* 100% factory terminated and tested







Specification

Item
Single mode
Multi mode

PC
UPC
APC
PC
Insertion Loss
≤0.3dB
≤0.3dB
≤0.3dB
≤0.3dB
Reture Loss
≥50dB
≥55dB
≥60dB
≥35dB
Repeatability
≤0.1dB
≤0.1dB
≤0.1dB
≤0.1dB
Durability(Times)
≥600
≥600
≥600
≥600
Tensile strength(N)
≥55
≥55
≥55
≥55
Operating Wavelength
1310nm,1550nm
Temperature Stability
Additional Loss≤0.2dB, Return Loss Variability<5dB
Working Temperature
-50ºC~+75ºC



FTTH Armored Patch Cord OM1 Duplex Jumper SC/LC/FC/ST Fiber Optic Patch Cord 2



Related product recommendation



FTTH Armored Patch Cord OM1 Duplex Jumper SC/LC/FC/ST Fiber Optic Patch Cord 3

More Questions:



1. What is the lead time?
For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.



2. Can I have a sample order?What is your MOQ?

Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.




3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.


4. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Paypal.

Could also support L/C,Credit terms.



5. What is your warranty time
We promise 3 years warranty for all products shipped from us.


6. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,we could accept free exchange.



7. Could i use our own logo and label?

Yes,we could provide a OEM service and make the products with your own label.
