8 Channel DWDM MUX DMUX 1U Rackmount Low Insertion Loss

Name: 8 Channel DWDM MUX DMUX 1U Rackmount Low Insertion Loss
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: DWDM04MXXX
Price: 1.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	DWDM04MXXX
MOQ:	1pc
Price:	Negotiable
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Product Name:

8CH DWDM

Channel:

8CH

Connector:

SC/UPC

Fiber Type:

SMF-28e

Storage Temperature:

-40 ~ +85℃

Application:

CATV Systems

Packaging Details:

Paper box

Supply Ability:

100000Channel per month

Highlight:

Rackmount DWDM MUX DMUX

8 Channel DWDM MUX DMUX

1U 8 channel dwdm mux

Product Description

Description of 8CH DWDM

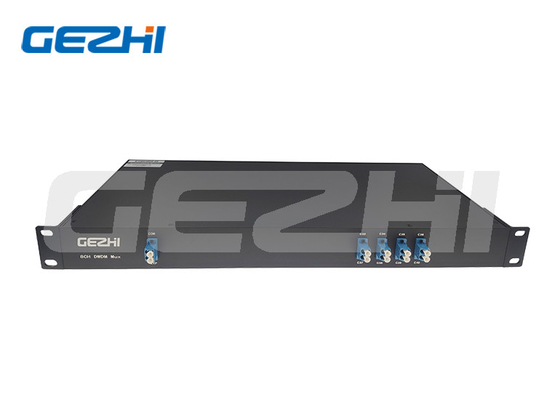

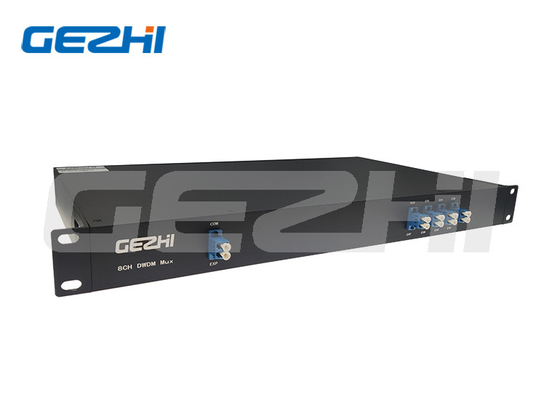

Low Insertion Loss 8 Channel DWDM MUX DMUX 1U Rackmount

8CH DWDM 1U Rack

GEZHI 8 Channel DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux)modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Fixed Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for Long Haul, Metro, and Access Application.

Features & Applications of 8CH DWDM

Features:

Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity

Applications:

DWDM System
PON Networks
CATV Links
Fiber Optical Amplifier
Long-haul transport

Specifications of 8CH DWDM

Parameter	Unit	8+1CH DWDM Mux+Demux
Channel Number	--	8+1CH
Operation Wavelength	nm	C53~C60+Upgrade+1% Monitor Port
Channel Central Wavelength	nm	ITU-T Grid @DWDM
Channel Passband	nm	0.8 (100Ghz)
Insertion Loss @PB	dB	<2.8
Mux 1% monitoring	dB	<24.3
Demux 1% monitoring	dB	<21.5
Isolation @Adjacent Channel	dB	>30
Isolation @Non-adjacent Channel	dB	>34
Isolation @Reflect Channel	dB	>15
Passband Ripple	dB	<0.5
Polarization Dependent Loss	dB	<0.15
Polarization Mode Dispersion	ps	<0.1
Directivity & Return Loss	dB	Directivity: >50 Return Loss:>45
Power Handling	mW	<500
Connector	--	SC/UPC or customized
Fiber Type	--	SMF-28e or Customized
Operating Temperature	℃	-20 ~ +70
Storage Temperature	℃	-40 ~ +85
Package Dimension	mm	4slot 19" 1U Rackmount

8Channel DWDM Filter Cascading

8 Channel DWDM MUX DMUX 1U Rackmount Low Insertion Loss 0

8CH DWDM Mux Demux Module Dual Fiber

8 Channel DWDM MUX DMUX 1U Rackmount Low Insertion Loss 1

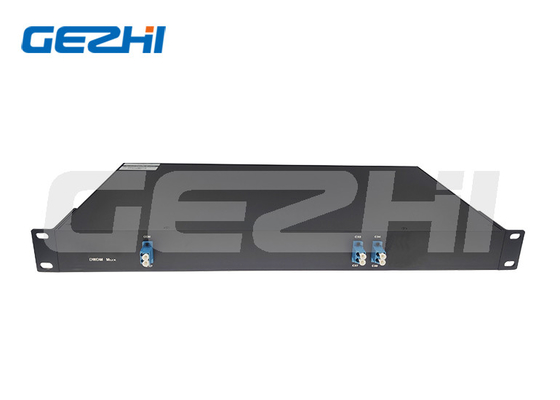

4slot Rackmount

FAQ

Q1:Can I have a sample order? What is your MOQ of 8CH DWDM Mux Demux?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.

Q4: What is your warranty time of 8CH DWDM Mux Demux?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
