1x124 MEMS Optical Switch Desktop 2RU Rackmount for Network Test System

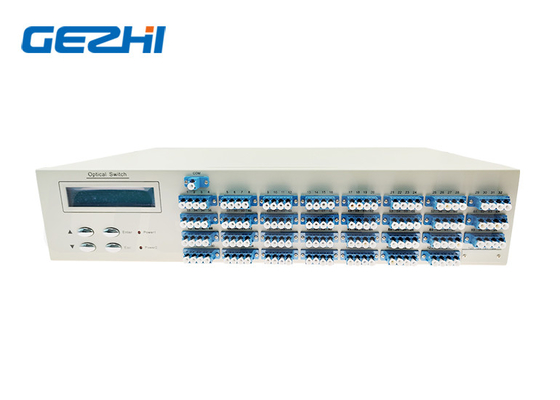

Large Image : 1x124 MEMS Optical Switch Desktop 2RU Rackmount for Network Test System

Product Details:

Place of Origin:	China
Brand Name:	GEZHI or OEM
Certification:	CE RoHS,ISO9001
Model Number:	MEMS-M-1x124-RU

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	5-8 work days
Payment Terms:	T/T, Western Union
Supply Ability:	100000Channel per month

Contact Now

Detailed Product Description

Product Name:	1x124 Mems Optical Switch	Port:	1x124 Or Customized
Wavelength:	1260 ~ 1650nm	Storage Temperature:	-40～+80℃
Warranty:	3 Years	Application:	Optical Network
Highlight:	1x124 MEMS Optical Switch , Desktop MEMS Optical Switch , Rackmount MEMS Optical Switch

Product Overview of 1x124 Mems Optical Switch

1x124 MEMS Optical Switch Desktop 2RU Rackmount for Network Test System

1x124 MEMS Optical Switches Rackmount

Gezhi Rackmount Fiber Optical Switches(1XN=4,8,10,12,16,24,32,64,128,256,512),with Single mode and multimode fiber,is a kind of optical path control device.control device which has the function of optical path control and switch.rack-mounted 1 X N optical switch can be manually selected from front panel or control via RS232 port, Ethernet port.the Fiber Optical switch configurations

Features & Applicaations of 1x124 Mems Optical Switch

Features:

♦High Stability, High Reliability
♦Epoxy-free on Optical Path
♦Latching and Non-latching

♦Low Insertion loss
♦Wide Wavelength Range
♦Low Crosstalk

Applications:

♦Optical Singnal Routing
♦Transmitter and receiver protection
♦Network Test System

♦Optical Network
♦Protection/Restoration

Specifications of 1x124 Mems Optical Switch

Parameters		1x124 Mems Optical Switch
Insertion loss	dB	N (1 ~ 64)	N (64 ~ 128)	N (128 ~ 256)	N (256 ~ 512)
		Typ:0.8 Max:1.0	Typ:1.0 Max:1.2	Typ:1.2 Max:1.5	Typ:1.5 Max:2.0
Operating wavelength	nm	850±40 / 1300±40		1260~1650
Test Wavelength	nm	850/1300		1310/1550
Return loss	dB	SM≥55 MM≥30
Crosstalk	dB	≥55
PDL	dB	≤0.05
WDL	dB	≤0.25
TDL	dB	≤0.25
Repeatability	dB	≤±0.05
Lifetime	times	≥10⁷
Transmission power	mW	≤500
Switch time	ms	≤10(Sequence switch time of adjacent channel)
Operating temperature	℃	-10～+60
Storage temperature	℃	-40～+80
Relative Humidity	%	5 ~ 95
Supervision interface		Ethernet Interface and RS232( or RS-485 )
Power supply	V	AC 85-264V,50/60Hz OR DC(36-72)V
Dimensions	mm	1U L483XW200XH44 (Up to 20 channel) customization is available.
		2U L483XW303XH89 (Up to 64 channel) customization is available.
		3U L483XW303XH139 (Up to 128 channel) customization is available.
		4U L483XW303XH177 (Up to 256 channel) customization is available.

Optical Path of 1x124 Mems Optical Switch

Odering Information

N	A	B	C	D	E	F
Channel	Package	Mode	Wavelength	Voltage Type	Fiber type	Connector
1~32 32~64 64~128 128~256 256~512	1U 2U 3U 4U 6U 8U X: Other	S:SM M:MM X: Other	85: 850nm 13: 1310nm 15: 1550nm 13/15:1310/1550nm X: Other	AC: 85-264V DC: 36-72V AC/ DC: 220V&48V	5:50/125 6:62.5/125 9: 9/125 X: Other	FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC SP: ST/PC SA: ST/APC LP: LC/PC LA: LC/APC X: Other

FAQ

Q1:Can I have a sample order? What is your MOQ of 1x124 Mems Optical Switch rackmount?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available.  Also Mixed samples are acceptable.

Q2: What's the Lead time?

A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.

Q3: What are the payment terms?

A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.

Q4: What is your warranty time of 1x124 Mems Optical Switch rackmount?

A4: 3 years' warranty.

Q5: Could I use our own logo, label and package?

A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
