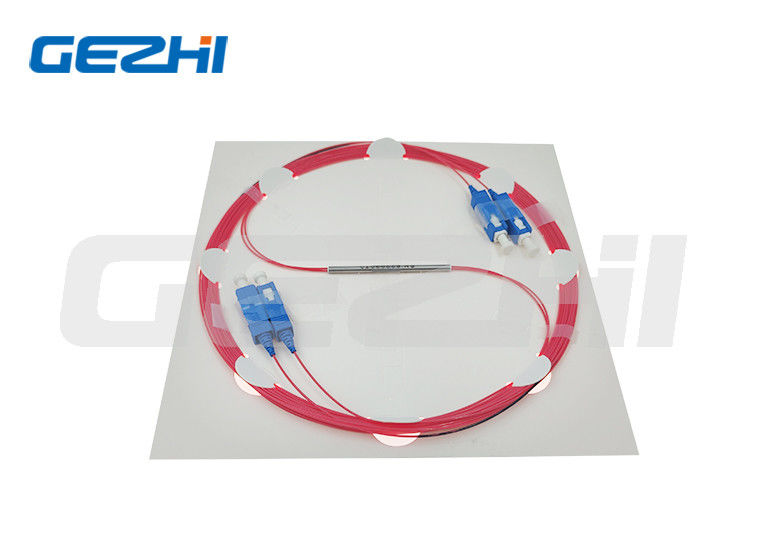

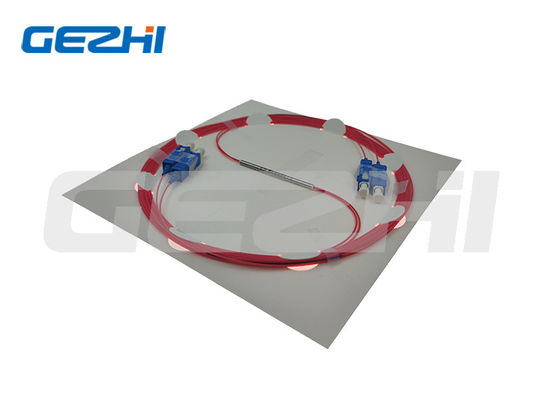

1310nm/1550nm High Isolation 2X2 Polarization Maintaining Coupler for Optical Networks

Name: 1310nm/1550nm High Isolation 2X2 Polarization Maintaining Coupler for Optical Networks
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 2X2 Polarization Maintaining Coupler
Price: 638.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	2X2 Polarization Maintaining Coupler
MOQ:	1pc
Price:	US$288-US$988
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Center Wavelength:

2050 Nm

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Optical network Polarization Maintaining Coupler

1550nm Polarization Maintaining Coupler

1310nm Polarization Maintaining Coupler

Product Description

1310nm/1550nm High Isolation 2X2 Polarization Maintaining Coupler for Optical Network

Product Overview

Gezhi's Polarization Maintaining (PM) product line includes In-Line Polarizer, PM Isolator, Polarization Beam Combiner/Splitter, PM Filter Coupler, PM Circulator, PM FWDM and PM Patch cord.

Key Features

High Isolation
Low Insertion Loss
High Return Loss
High stability and reliability
Epoxy free on optical path

Applications

Fiber optic Amplifiers
Optical network
Power monitoring
Fiber sensor

Technical Specifications

PARAMETER	UNIT	VALUES
Configuration	-	1x2 \| 2x2
Center Wavelength	nm	2050
Operating Wavelength Range	nm	±40
Tap Coupling Ratio	%	1±0.2%, 2±0.4%, 4±0.8%, 5±1.0%, 10%, 20% and 50%
Max. Insertion Loss	dB	IL related to CR
Max. Excess Loss	dB	1.2 \| 1.5
Uniformity (Only for 50/50)	dB	0.6 \| 0.8
Mini. Extinction Ratio	Type F (Fast axis blocked)	dB
Return Loss	dB	≥50
Max. Power Handling	W	0.5, 1, 2, 5,10, 20
Max. Tensile Load	N	5
Fiber Type	-	SMF-28e or PM1550(default) or PM1950 fiber for tap port PM1550(default) or PM1950 fiber for input & output ports
Operating Temperature	℃	-5 to +70
Storage Temperature	℃	-40 to +85
Package Dimensions	mm	Ø5.5 x L35

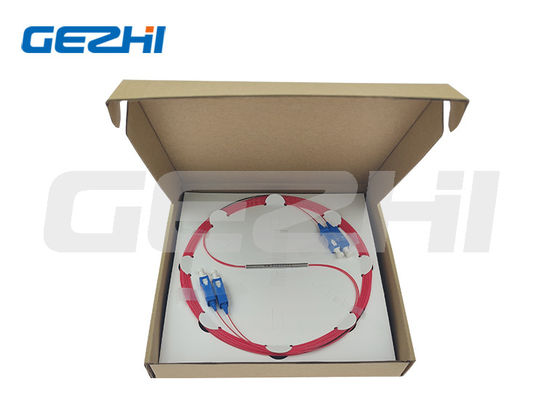

Package Details

Inner Package	Inner Box	Carton
