Product Description

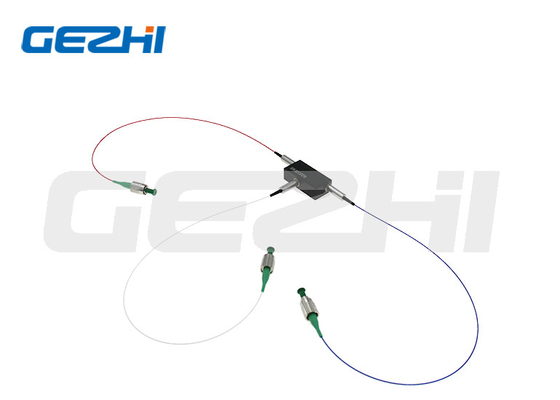

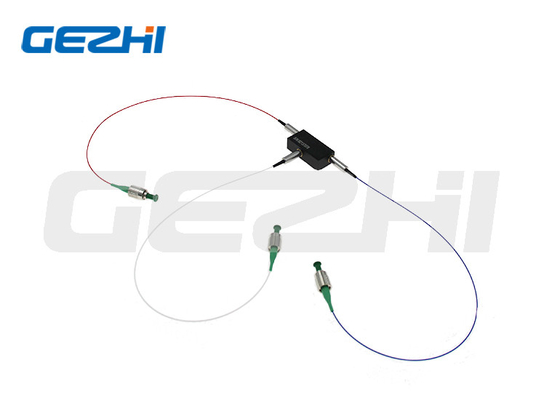

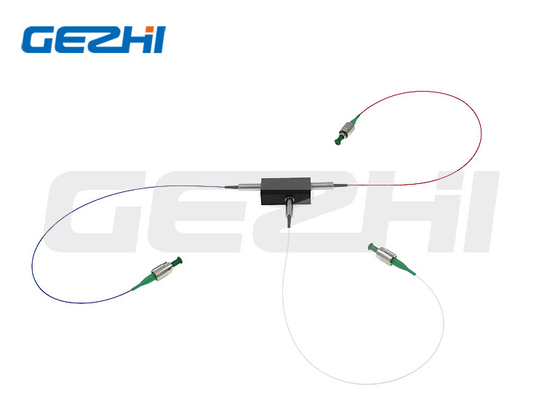

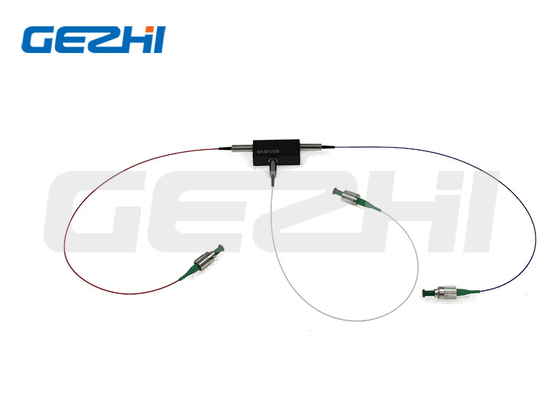

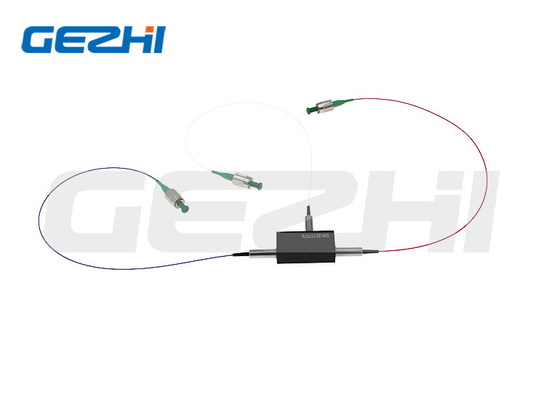

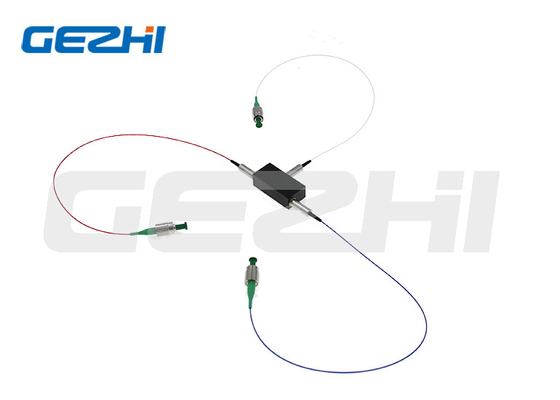

532nm/633nm 3 Ports Polarization Maintaining Optical Circulator TGG Based For Fiber Amplifier
Product Overview

The TGG Based 532nm/633nm Optical Circulator is a high-performance light-wave component that routes incoming signals from Port 1 to Port 2, and incoming Port 2 signals to Port 3. These circulators feature low insertion loss, high isolation, high power handling, high PER, high return loss, excellent environmental stability and reliability. They are ideal for fiber laser and instrumentation applications.

Key Features
  • Low Insertion Loss
  • High Return Loss
  • High Isolation
  • High Stability & Reliability
Applications
  • Fiber Amplifier
  • Testing Instrument
  • Fiber Sensor
  • Medical Equipment
Technical Specifications
Parameter Unit Value
Port Type - 3 Port
Center Wavelength nm 532 | 633
Operating Wavelength Range nm ±5
Typ. Peak Isolation at 23℃ dB 22
Min. Isolation at 23℃ dB 20
Typ. Insertion Loss at 23℃ dB 1.6
Max. Insertion Loss at 23℃ dB 2.0
Min. Extinction Ratio at 23℃ (PM Fiber Type) dB 20
Max. Polarization Dependent Loss at 23℃ (SM Fiber Type) dB 0.15
Min. Return Loss at 23℃ (Input/Output) dB 40
Min. Cross Talk dB 40
Max. Average Optical Power (Including Port 1 & Port 2) W 0.5, 1, 2
Max. Peak Power for ns Pulse kW 10 or Specified
Max. Tensile Load N 5
Package Dimension mm 44x28x26 | 70x28x26
Operating Temperature ℃ +10~+50
Storage Temperature ℃ 0~+60

Note:

1. Above specifications are for device without connector. If with connector, IL will be 0.3dB higher, return loss will be reduced 5dB and Extinction Ratio will reduce 2dB.

2. If there is pulse application, please be sure to inform us of pulse energy and peak power.

Package Dimensions
532nm/633nm 3 Ports Polarization Maintaining Optical Circulator TGG Based for Fiber Amplifier 0
Ordering Information
Parameter Options
① Port 3=3port
② Wavelength 532; 633; 680; 780; 808; 850; 930; 980; 1030; 1053; 1064; 1150nm; S=Specify
③ Axis Alignment B=Both axis working; F=Slow axis working, Fast axis blocked; N=Non-PM type is available
④ Power Handling 0L=0.5W; 01=1W; 02=2W; 10=10W; 10=20W; S=Specify
⑤ Fiber Type PM460; PM630; PM780; PM980; PM1060; S=Specify
⑥ Package Dimensions T2=70x28x26mm; S=Specify
⑦ Pigtail Type 00=bare fiber; 09=900um loose tube
⑧ Fiber Length 08=0.8m; 10=1m; S=Specify
⑨ Connector Type FA=FC/APC; FP=FC/UPC; SA=SC/APC; SP=SC/UPC; S=Specify
⑩ Peak Power for Pulse 00=Continuous Wave, 10=10kW, 20=20kW, SS=Specified
