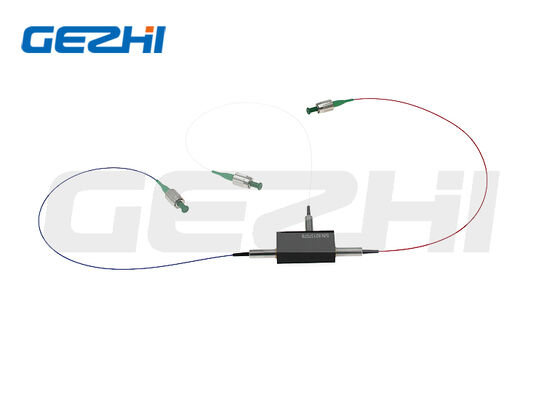

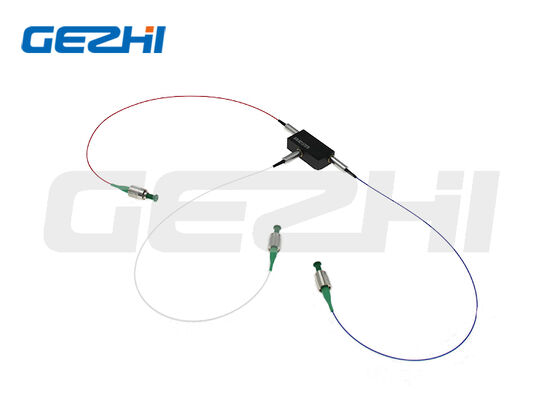

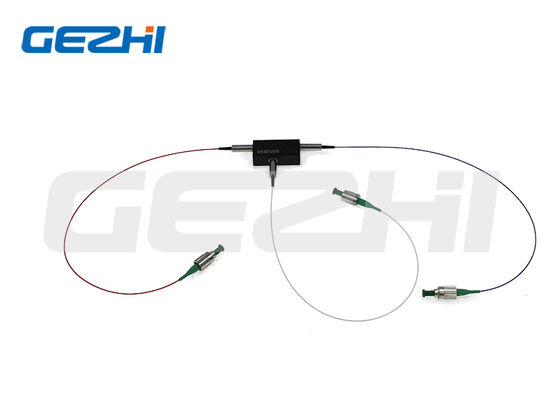

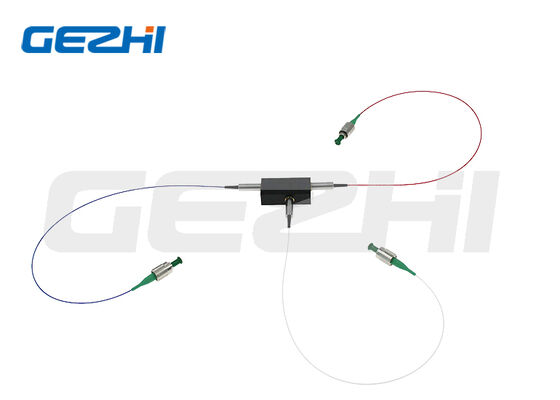

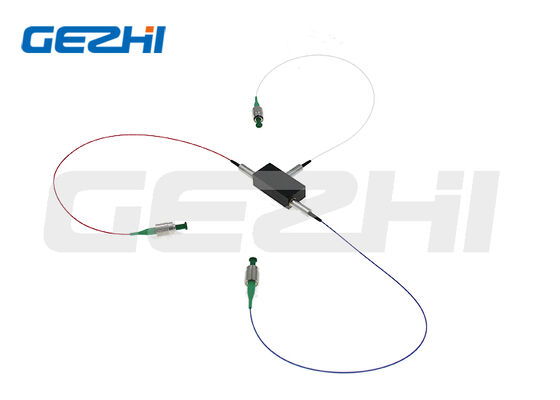

TGG Crystal Based Polarization Maintaining Optical Circulator with High Extinction Ratio Low Insertion Loss and Wide Wavelength Coverage

Name: TGG Crystal Based Polarization Maintaining Optical Circulator with High Extinction Ratio Low Insertion Loss and Wide Wavelength Coverage
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 3-Port TGG Polarization Maintaining Optical Circulator
Price: 638.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	3-Port TGG Polarization Maintaining Optical Circulator
MOQ:	1pc
Price:	US$288-US$988
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Operating Wavelength:

532 / 635 / 680 / 780 / 808 / 850 / 930 / 980 / 1030 / 1053 / 1064 / 1150nm

Insertion Loss:

≤1.5dB (780-1150nm); ≤2.5dB (532/635/680nm)

Minimum Isolation:

≥20 / ≥22dB

Extinction Ratio:

≥18dB (Type B); ≥20dB (Type F)

Max CW Power:

0.5 / 5 / 10 / 20W

Package Size:

70×28×26mm

Packaging Details:

Paper box

Product Description

Polarization Maintaining Optical Circulator TGG based (532, 635, 680, 780, 808, 850, 930, 980, 1030, 1053, 1064, 1150nm)

Product Overview

Gezhi Photonics TGG-based polarization maintaining optical circulator adopts high-performance terbium gallium garnet magneto-optic crystal as the core component. It covers a wide wavelength range from 532nm to 1150nm, including visible and near-infrared common bands.

This PM circulator features ultra-low insertion loss, superior isolation, high extinction ratio and high return loss. It supports CW power handling from 0.5W up to 20W, and two polarization axis working modes (Type B dual-axis & Type F slow-axis only). Standard 70×28×26mm compact package is available, with fully customizable pigtail fiber, fiber length, connector type and pulse peak power. Ideal for fiber laser amplifiers, medical optical instruments and precision optical test systems.

Key Features

Low Insertion Loss: ≤1.5dB for 780–1150nm bands, ≤2.5dB for 532/635/680nm
High Isolation: Minimum isolation ≥20dB, peak isolation up to ≥26dB
High Extinction Ratio: ≥18dB (Type B), ≥20dB (Type F)
High Return Loss ≥45dB, ultra-low crosstalk
Wide wavelength coverage: 532, 635, 680, 780, 808, 850, 930, 980, 1030, 1053, 1064, 1150nm
Multiple CW power options: 0.5W, 5W, 10W, 20W
Two polarization alignment modes: B (both axis), F (slow axis only)
Various PM fiber choices: PM460, PM630, PM780, PM980, PM1060
Optional pigtail: Bare fiber / 900μm loose tube; customizable fiber length
Multiple connector options: FC/UPC, FC/APC, SC/UPC, SC/APC
Wide working temperature range: 0℃ ~ +60℃; storage temperature: -10℃ ~ +75℃
Custom packaging, wavelength and pulse power specifications supported

Typical Applications

Fiber Amplifiers & Fiber Laser Systems
Medical Optical Equipment & Medical Lasers
Optical Test and Measurement Instruments
Precision Polarization Optical Circuits
Interferometry & Lab Research Setups

Technical Specifications

Parameter	Unit	Specification
Operating Wavelength	nm	532 / 635 / 680 / 780 / 808 / 850 / 930 / 980 / 1030 / 1053 / 1064 / 1150
Wavelength Bandwidth	nm	±5 / ±10 (Depends on wavelength)
Insertion Loss	dB	≤1.5 (780–1150nm); ≤2.5 (532/635/680nm)
Minimum Isolation	dB	≥20 / ≥22
Peak Isolation	dB	≥25 / ≥26
Extinction Ratio (Type B)	dB	≥18
Extinction Ratio (Type F)	dB	≥20
Return Loss	dB	≥45
Crosstalk	dB	≥45
Max CW Power Handling	W	0.5 / 5 / 10 / 20
Tensile Load	N	≤5
Operating Temperature	℃	0 ~ +60
Storage Temperature	℃	-10 ~ +75
Standard Package Size	mm	70×28×26

Important Notes

The above specifications apply to devices without connectors. If equipped with connectors, insertion loss will increase by 0.3dB, return loss will decrease by 5dB, and extinction ratio will drop by 2dB.

For pulse operation applications, please inform us of pulse energy and peak power in advance to match the suitable product.

Dimensions

Ordering Information

Model Code: PMCIR-X-XXXX-X-XX-XXXX-XX-XX-XX-XX-XX

Serial No.	Parameter Item	Code Definition
①	Port	3 = 3-port
②	Wavelength	532 / 635 / 680 / 780 / 808 / 850 / 930 / 980 / 1030 / 1053 / 1064 / 1150 S = Custom specified wavelength
③	Axis Alignment	B = Both axis working F = Slow axis working, fast axis blocked N = Non-PM type
④	Power Handling	0L = 0.5W 01 = 1W 10 = 10W 20 = 20W S = Custom specified power
⑤	Fiber Type	PM460 / PM630 / PM780 / PM980 / PM1060 S = Custom specified fiber
⑥	Package Dimension	T2 = Standard 70×28×26mm S = Custom specified package size
⑦	Pigtail Type	00 = Bare fiber 09 = 900μm loose tube
⑧	Fiber Length	08 = 0.8m 10 = 1m S = Custom specified length
⑨	Connector Type	FP = FC/UPC FA = FC/APC SP = SC/UPC SA = SC/APC S = Custom specified connector / bare fiber without connector
⑩	Pulse Peak Power	00 = Continuous Wave (CW) 10 = 10kW peak power 20 = 20kW peak power SS = Custom specified pulse power

Packaging Information Table

Item	Details
Packaging Type	Individual PE Bag or Custom Packaging
Label Option	Product Label / OEM Label
Outer Carton	Standard Export Carton
Sample Support	Available
Bulk Supply	Available
