Dual Stage TGG PM Optical Isolator 780-1080nm with High Isolation for Fiber Lasers

Name: Dual Stage TGG PM Optical Isolator 780-1080nm with High Isolation for Fiber Lasers
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: PM Dual Stage TGG PM Optical Isolator 780-1080nm
Price: 638.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	PM Dual Stage TGG PM Optical Isolator 780-1080nm
MOQ:	1pc
Price:	US$288-US$988
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Operating Wavelength:

780 / 808 / 850 / 880 / 980 / 1030 / 1064 / 1080

Insertion Loss:

≤1.2dB

Minimum Isolation:

≥55dB

Peak Isolation:

≥65dB

Extinction Ratio:

≥20dB

Package Dimension:

150×28×26mm

Packaging Details:

Paper box

Product Description

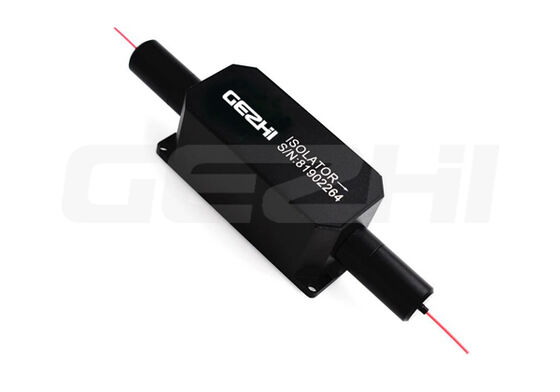

Dual Stage TGG Polarization Maintaining Optical Isolator 780–1080nm PM Panda Fiber Isolator

Product Overview

GEZHI Photonics manufactures high-performance dual stage TGG-based PM optical isolator covering 780nm, 808nm, 850nm, 880nm, 980nm, 1030nm, 1064nm and 1080nm. This two-port micro-optic component adopts PM panda fiber design, allowing unidirectional light transmission while blocking back reflection and backscattering effectively.

Our PM dual stage isolator delivers ultra-low insertion loss, high isolation, high extinction ratio and stable long-term performance, widely deployed in fiber lasers, fiber amplifiers, optical test instruments, CATV fiber links and telecom fiber LAN systems. Custom wavelength, fiber type, connector and power rating are supported for CW & pulse laser applications.

Core Features

Dual-stage TGG magneto-optic design, minimum isolation ≥55dB, peak isolation ≥65dB
Ultra-low insertion loss ≤1.2dB (bare fiber version)
High extinction ratio ≥20dB, return loss ≥45dB
Multiple wavelength options: 780/808/850/880/980/1030/1064/1080nm with ±5nm bandwidth
Multiple CW power options: 0.5W / 1W / 20W; custom pulse peak power available
Standard PM panda fiber: PM780, PM980, PM1060 for matching operating wavelength
Two axis working modes: Both axis / Slow axis pass, fast axis blocked
Multiple pigtail & connector options: bare fiber, 900um loose tube, FC/APC, FC/UPC, SC/APC, SC/UPC
Compact standard package: 150×28×26mm, wide working temperature range 0~+60℃
High reliability, stable performance for industrial continuous operation

Applications

Fiber Laser Systems
Optical Fiber Amplifiers
Fiber Optic Test & Measurement Instruments
CATV Fiber Transmission Links
Telecommunication Fiber LAN Networks
Polarization Sensitive Optical Lab Equipment

Technical Specifications

Parameter	Unit	Standard Value
Operating Wavelength	nm	780 / 808 / 850 / 880 / 980 / 1030 / 1064 / 1080
Wavelength Bandwidth	nm	±5
Insertion Loss (Bare Fiber)	dB	≤1.2
Minimum Isolation	dB	≥55
Peak Isolation	dB	≥65
Extinction Ratio	dB	≥20
Return Loss	dB	≥45
Fiber Type	—	PM780 / PM980 / PM1060 (match wavelength)
Max CW Power Handling	W	0.5 / 1 / 20
Stage	—	Dual Stage
Tensile Load	N	≤5
Operating Temperature	℃	0 ~ +60
Storage Temperature	℃	-10 ~ +75
Standard Package Dimension	mm	150×28×26

Important Notes

Devices with connectors will add 0.3dB insertion loss, reduce return loss by 5dB and extinction ratio by 2dB.
For pulse laser applications, please inform us pulse energy and peak power for customized configuration.

Dimensions

Ordering Information

Order Format: PMISO-X-XXXX-X-XX-XXXX-XX-XX-XX-XX-XX

Code Position	Definition	Available Options & Explanation
1	Stage Type	D = Dual Stage
2	Operating Wavelength	780 / 808 / 850 / 880 / 980 / 1030 / 1064 / 1080 / S = Custom specified wavelength
3	Axis Alignment Mode	B = Both axis working F = Slow axis pass, fast axis blocked
4	CW Power Handling	0L = 0.5W 01 = 1W 02 = 2W 10 = 10W S = Custom power rating
5	PM Fiber Type	PM780 / PM980 / PM1060 / S = Custom fiber
6	Package Size	T3 = Standard 150×28×26mm housing S = Custom package dimension
7	Pigtail Protection	00 = Bare fiber 09 = 900μm loose tube
8	Fiber Pigtail Length	08 = 0.8m 10 = 1m S = Custom length
9	Connector Type	FA = FC/APC FP = FC/UPC SA = SC/APC SP = SC/UPC S = Custom connector
10	Pulse Peak Power	00 = CW only 10 = 10kW peak 20 = 20kW peak SS = Custom pulse peak power

Why Choose GEZHI Photonics

Professional optical passive component manufacturer with strict factory testing for every isolator
Full customization on wavelength, fiber, connector, power rating, package dimensions & fiber length
Fast lead time, small MOQ support for lab & research clients
Complete technical datasheet & dimension drawing test report provided for each shipment
Stable mass production capacity for fiber laser & telecom OEM orders
Global after-sales technical support & engineering consultation for system integration

Tags:

TGG Crystal Based Polarization Maintaining Optical Circulator with High Extinction Ratio Low Insertion Loss and Wide Wavelength Coverage

Get Best Price

1×2 PM1550 DWDM Polarization Maintaining Device with 1550nm Wavelength, Low Insertion Loss, and High Extinction Ratio

Get Best Price

Products Details

Home Products

Polarization Maintaining Components

Dual Stage TGG PM Optical Isolator 780-1080nm with High Isolation for Fiber Lasers

All Category

Dual Stage TGG PM Optical Isolator 780-1080nm with High Isolation for Fiber Lasers

Brand Name:	GEZHI or OEM
Model Number:	PM Dual Stage TGG PM Optical Isolator 780-1080nm
MOQ:	1pc
Price:	US$288-US$988
Packaging Details:	Paper box
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

GEZHI or OEM

Certification:

CE RoHS,ISO9001

Model Number:

PM Dual Stage TGG PM Optical Isolator 780-1080nm

Operating Wavelength:

780 / 808 / 850 / 880 / 980 / 1030 / 1064 / 1080

Insertion Loss:

≤1.2dB

Minimum Isolation:

≥55dB

Peak Isolation:

≥65dB

Extinction Ratio:

≥20dB

Package Dimension:

150×28×26mm

Minimum Order Quantity:

1pc

Price:

US$288-US$988

Packaging Details:

Paper box

Payment Terms:

T/T,Western Union

Product Description

Dual Stage TGG Polarization Maintaining Optical Isolator 780–1080nm PM Panda Fiber Isolator

Product Overview

Core Features

Dual-stage TGG magneto-optic design, minimum isolation ≥55dB, peak isolation ≥65dB
Ultra-low insertion loss ≤1.2dB (bare fiber version)
High extinction ratio ≥20dB, return loss ≥45dB
Multiple wavelength options: 780/808/850/880/980/1030/1064/1080nm with ±5nm bandwidth
Multiple CW power options: 0.5W / 1W / 20W; custom pulse peak power available
Standard PM panda fiber: PM780, PM980, PM1060 for matching operating wavelength
Two axis working modes: Both axis / Slow axis pass, fast axis blocked
Multiple pigtail & connector options: bare fiber, 900um loose tube, FC/APC, FC/UPC, SC/APC, SC/UPC
Compact standard package: 150×28×26mm, wide working temperature range 0~+60℃
High reliability, stable performance for industrial continuous operation

Applications

Fiber Laser Systems
Optical Fiber Amplifiers
Fiber Optic Test & Measurement Instruments
CATV Fiber Transmission Links
Telecommunication Fiber LAN Networks
Polarization Sensitive Optical Lab Equipment

Technical Specifications

Parameter	Unit	Standard Value
Operating Wavelength	nm	780 / 808 / 850 / 880 / 980 / 1030 / 1064 / 1080
Wavelength Bandwidth	nm	±5
Insertion Loss (Bare Fiber)	dB	≤1.2
Minimum Isolation	dB	≥55
Peak Isolation	dB	≥65
Extinction Ratio	dB	≥20
Return Loss	dB	≥45
Fiber Type	—	PM780 / PM980 / PM1060 (match wavelength)
Max CW Power Handling	W	0.5 / 1 / 20
Stage	—	Dual Stage
Tensile Load	N	≤5
Operating Temperature	℃	0 ~ +60
Storage Temperature	℃	-10 ~ +75
Standard Package Dimension	mm	150×28×26

Important Notes

Devices with connectors will add 0.3dB insertion loss, reduce return loss by 5dB and extinction ratio by 2dB.
For pulse laser applications, please inform us pulse energy and peak power for customized configuration.

Dimensions

Ordering Information

Order Format: PMISO-X-XXXX-X-XX-XXXX-XX-XX-XX-XX-XX

Code Position	Definition	Available Options & Explanation
1	Stage Type	D = Dual Stage
2	Operating Wavelength	780 / 808 / 850 / 880 / 980 / 1030 / 1064 / 1080 / S = Custom specified wavelength
3	Axis Alignment Mode	B = Both axis working F = Slow axis pass, fast axis blocked
4	CW Power Handling	0L = 0.5W 01 = 1W 02 = 2W 10 = 10W S = Custom power rating
5	PM Fiber Type	PM780 / PM980 / PM1060 / S = Custom fiber
6	Package Size	T3 = Standard 150×28×26mm housing S = Custom package dimension
7	Pigtail Protection	00 = Bare fiber 09 = 900μm loose tube
8	Fiber Pigtail Length	08 = 0.8m 10 = 1m S = Custom length
9	Connector Type	FA = FC/APC FP = FC/UPC SA = SC/APC SP = SC/UPC S = Custom connector
10	Pulse Peak Power	00 = CW only 10 = 10kW peak 20 = 20kW peak SS = Custom pulse peak power

Why Choose GEZHI Photonics

Professional optical passive component manufacturer with strict factory testing for every isolator
Full customization on wavelength, fiber, connector, power rating, package dimensions & fiber length
Fast lead time, small MOQ support for lab & research clients
Complete technical datasheet & dimension drawing test report provided for each shipment
Stable mass production capacity for fiber laser & telecom OEM orders
Global after-sales technical support & engineering consultation for system integration
