Polarization Maintaining Components
Created with Pixso. High Power Handling Cladding Power Stripper with Low Insertion Loss and High Reliability for Fiber Lasers

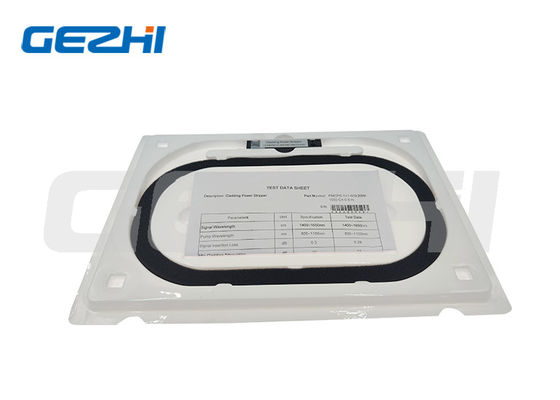

High Power Handling Cladding Power Stripper with Low Insertion Loss and High Reliability for Fiber Lasers
  • name
  • name
  • name
  • name

High Power Handling Cladding Power Stripper with Low Insertion Loss and High Reliability for Fiber Lasers

Brand Name: GEZHI or OEM
Model Number: Cladding Power Stripper
MOQ: 1pc
Price: US$288-US$988
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Laser Wavelength:
700~2000
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

High Power Cladding Power Stripper

,

CPS Cladding Power Stripper

Product Description
High Power Handling Cladding Power Stripper For High Power Fiber Laser / Fiber Amplifiers
Product Overview

The High Power Cladding Power Stripper (CPS) is designed for high power fiber laser and amplifier applications. The device is ideal for stripping residual pump power, ASE and escaped core modes within the inner cladding of cladding fibers while preserving minimal degradation of signal power and beam quality. Reflected signal power into the inner cladding from the facet can be stripped out as well.

High Power Handling Cladding Power Stripper with Low Insertion Loss and High Reliability for Fiber Lasers 0
Key Features
  • Low Insertion Loss
  • High Power Handling
  • High Power Absorption
  • PM and Non-PM are available
  • Fiber can be customized
  • High Reliability
  • Excellent Temperature Stability
Applications
  • Fiber amplifier and laser systems
  • Cladding-mode-free high power beam delivery
  • ASE stripping
  • Industrial/Biomedical/Telecom/Metrology
  • Life Science/Imaging/Quantum optics
Technical Specifications
Parameter Specification
Port Configuration 1x1
Signal Wavelength 800 nm ~ 2000 nm
Pump Wavelength 800 nm ~ 1000 nm
Signal Fiber (Note 2) x/125 | x/250 | x/400
Cladding Attenuation >20 dB | >18 dB | >18 dB
Signal Insertion Loss <0.13 dB
Power Handling (Note 3) 20W | 100W | 1000W
Polarization Extinction Ratio (PM fiber) >17 dB (Input PER >25 dB)
Return Loss >45 dB
Pigtail Standard 1m or custom
Operating Temperature 0~75°C
Storage Temperature -40~85°C

Note 1: Values are referenced without connectors.

Note 2: x specifies fiber core size.

Note 3: Bottom side of these devices must be mounted on a heat sink with good heat conduction. For cladding power >200W, water cooling is required.
