Created with Pixso. Polarization Maintaining Fused Fiber Coupler with Low Insertion Loss High Extinction Ratio and Multiple Wavelength Options for FTTx Solutions

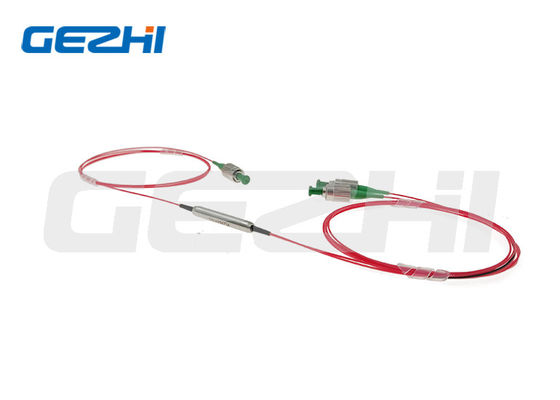

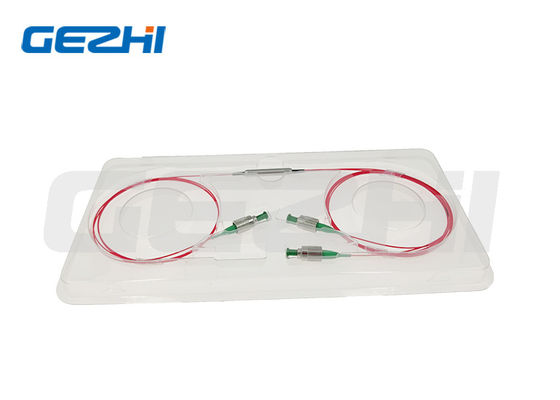

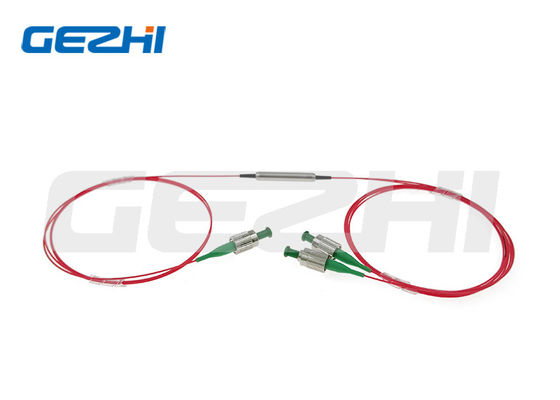

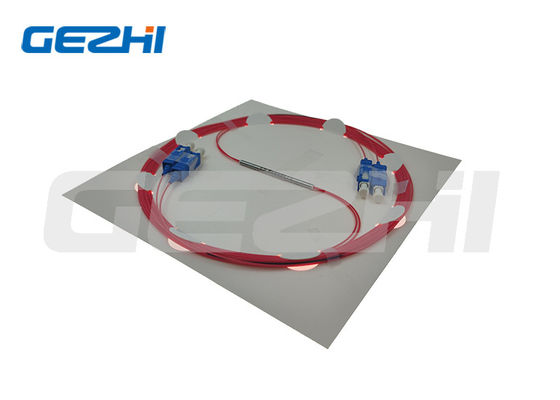

Polarization Maintaining Fused Fiber Coupler with Low Insertion Loss High Extinction Ratio and Multiple Wavelength Options for FTTx Solutions
  • name
  • name
  • name
  • name
  • name
  • name

Polarization Maintaining Fused Fiber Coupler with Low Insertion Loss High Extinction Ratio and Multiple Wavelength Options for FTTx Solutions

Brand Name: GEZHI or OEM
Model Number: 1x2,2x2 Polarization Maintaining Fused Coupler
MOQ: 1pc
Price: US$288-US$988
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Wavelength:
525nm, 630nm, 780nm, 850nm, 980nm

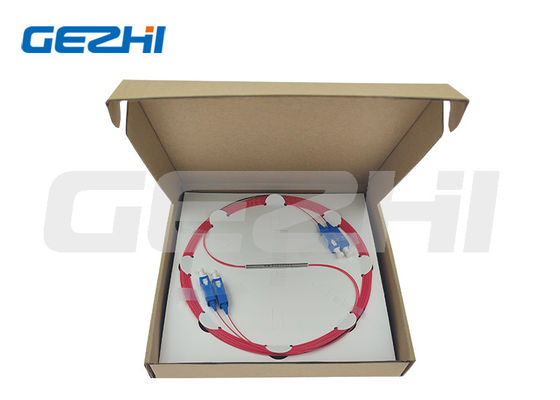

Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

Polarization Maintaining Components Coupler

,

FTTx Solutions Fused Fiber Coupler

,

PM Fused Fiber Coupler

Product Description
Polarization Maintaining Components Fused Fiber Coupler For FTTx Solutions / CATV / FTTH
Product Overview

525nm, 630nm, 780nm, 850nm, 980nm 1x2, 2x2 Polarization Maintaining Fused Fiber Optic Coupler

1x2, 2x2 Polarization Maintaining Fused Fiber Optic Coupler uses unique fusing technique and polarization maintaining fiber to build the polarization maintaining fused standard coupler (PMC). The coupling ratio could be selected according to customer's request. It features low excess loss, small size and high polarization extinction ratio. PMC is widely used for optical sensors and optical gyro, optical amplifier.

Polarization Maintaining Fused Fiber Coupler with Low Insertion Loss High Extinction Ratio and Multiple Wavelength Options for FTTx Solutions 0 Polarization Maintaining Fused Fiber Coupler with Low Insertion Loss High Extinction Ratio and Multiple Wavelength Options for FTTx Solutions 1 Polarization Maintaining Fused Fiber Coupler with Low Insertion Loss High Extinction Ratio and Multiple Wavelength Options for FTTx Solutions 2
Applications
  • Fiber Amplifier
  • Power Monitoring
  • Fiber Optical Instrument
Features
  • Low Insertion Loss
  • High Return Loss
  • High Extinction Ratio
Product Specifications
Parameters Unit Values
Type / 1x2 or 2x2
Center Wavelength nm 525 | 630 | 780 | 850 | 980
Operating Wavelength Range nm ±10 | ±10 | ±15 | ±15 | ±20
Max. Excess Loss dB 1.2 | 0.6 | 0.6 | 0.6 | 0.5
Tap Coupling Ratio % 1±0.5%, 5±1.0%, 10±2.0%, and 50%
Insertion Loss dB IL related to Coupling Ratio
Extinction Ratio dB 1x2:≥20 ; 2x2:≥18
Return Loss dB ≥55
Max Power Handling (CW) W 0.1 | 0.1 | 0.5, 1, or 3 | 0.5, 1, or 3 | 0.5, 1, or 3
Tensile Load N ≤5
Operating Temperature ℃ -5~+75
Storage Temperature ℃ -40~+85
Package Dimension mm φ3x54mm or φ3x60mm
Coupling Ratio Tolerance
Coupling Ratio Tolerance
1/99 ±0.5%
2/98 ±0.6%
5/95 ±1.0%
10/90 ±1.5%
20/80 ±2.0%
30/70 ±2.5%
40/60 ±3.0%
50/50 ±3.5%
Note:
1. The PM fused coupler is both axis working, no axis can be blocked; default test extinction ratio is on the slow axis.
Above specifications are for device without connector. If with connector, IL will be 0.3dB higher, return loss will be reduced 5dB and Extinction Ratio will reduce 2dB.
2. For >10W high power applications, we will use heat sink package.
3. If there is pulse application, please be sure to inform us of pulse energy and peak power.
Dimensions
Polarization Maintaining Fused Fiber Coupler with Low Insertion Loss High Extinction Ratio and Multiple Wavelength Options for FTTx Solutions 3
Ordering Information
PMFBTC-XXXX-XX-XX-X-XX-XX-XX-XX-XX
Parameter Options
① Wavelength: 525=525nm; 630=630nm; 780=780nm; 850=850nm; 980=980nm; S=Specify
② Configuration Type: 12=1x2, 22=2x2
③ Coupling Ratio: 50=50/50; 40=40/60; 30=30/70; 20=20/80; 10=10/90; 01=1/99; S=Specify
④ Fiber Type: PM460-HP; PM630-HP; PM780; PM980; S=Specify
⑤ Power Handling: 0L=0.5W; 01=1W; 02=2W
⑥ Package Dimensions: S2=3.0x54mm; S3=3.0x60mm; S=Specify
⑦ Pigtail Type: 00=bare fiber; 09=900um loose tube
⑧ Fiber Length: 08=0.8m; 10=1m; S=Specify
⑨ Connector Type: FA=FC/APC; FP=FC/UPC; SA=SC/APC; SP=SC/UPC; S=Specify
