Product Description

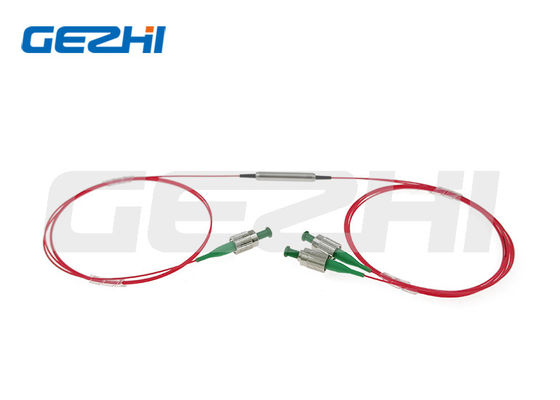

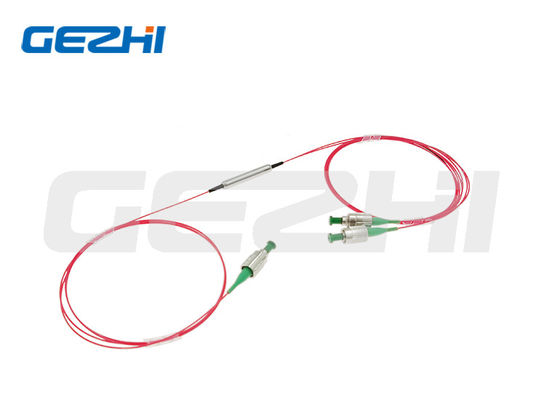

1x2 2x2 Polarization Maintaining Filter Coupler
Wavelengths: 780nm, 850nm, 980nm, 1030nm, 1064nm
Product Overview
Gezhi Photonics offers connectorization of filter splitters with all standard connectors (FC, SC, ST, LC) and finishes (Super PC, Ultra PC, Angled PC [APC]). As a component integrator, we can construct additional components directly onto coupler fibers, including tunable filters, variable attenuators, or collimators. This approach saves customers the added cost and insertion loss of intermediate connectors and adapters, while maintaining the highest possible Polarization Extinction Ratios.

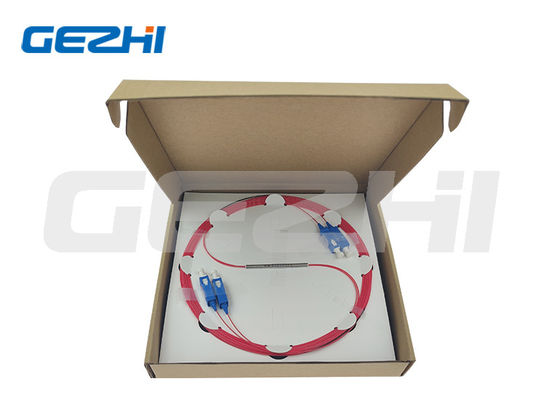

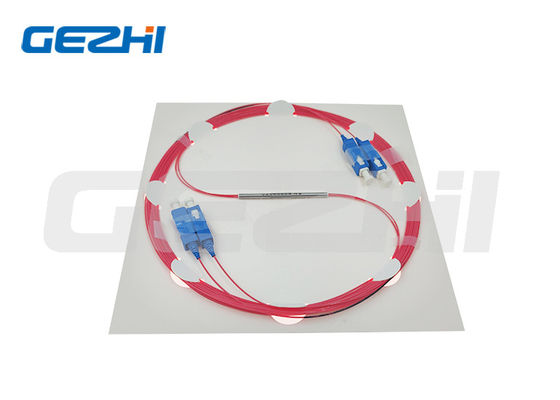

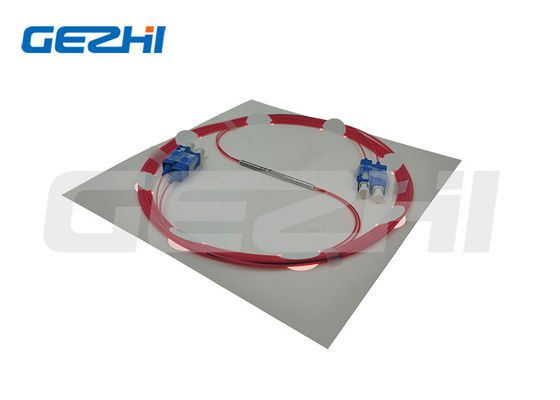

Product Packaging
1x2 2x2 Polarization Maintaining Filter Coupler with 780nm/850nm/980nm/1030nm/1064nm Wavelength High Extinction Ratio and Low Insertion Loss 0 1x2 2x2 Polarization Maintaining Filter Coupler with 780nm/850nm/980nm/1030nm/1064nm Wavelength High Extinction Ratio and Low Insertion Loss 1 1x2 2x2 Polarization Maintaining Filter Coupler with 780nm/850nm/980nm/1030nm/1064nm Wavelength High Extinction Ratio and Low Insertion Loss 2
Applications
  • EDFA & Raman Amplifier
  • Fiber Optical Instrument
  • Fiber Sensor
Features
High Return Loss
High Extinction Ratio
Low Insertion Loss
Product Specifications
Parameter Unit Values
Type / 1x2 or 2x2
Center Wavelength nm 780 | 850 | 980 | 1030 | 1064
Operating Wavelength Range nm ±10 | ±20 | ±20 | ±20 | ±20
Tap Coupling Ratio % 1±0.5%, 5±1.0%, 10±2.0%, and 50%
Insertion Loss dB IL related to Coupling Ratio
Excess Loss dB 1x2: ≤0.8; 2x2: ≤1.2
Uniformity (Only for 50/50) dB 1x2: ≤0.5; 2x2: ≤0.8
Extinction Ratio dB 1x2: ≥20; 2x2: ≥18
Return Loss dB ≥50
Max Power Handling (CW) W 0.5, 1, 2 or 5
Tensile Load N ≤5
Operating Temperature ℃ -5 to +75
Storage Temperature ℃ -40 to +85
Note:
1. Customization is available. The connector default slow axis alignment key.
Above specifications are for device without connector. If with connector, IL will be 0.3dB higher, return loss will be reduced 5dB and Extinction Ratio will reduce 2dB.
2. For >10W high power applications, we will use heat sink package.
3. If there is pulse application, please be sure to inform us of pulse energy and peak power.
Dimensions
1x2 2x2 Polarization Maintaining Filter Coupler with 780nm/850nm/980nm/1030nm/1064nm Wavelength High Extinction Ratio and Low Insertion Loss 3
Ordering Information
PMFC-XXXX-XX-XX-X-XX-XX-XX-XX-XX-XX
Parameter Options
① Wavelength 780=780nm; 850=850nm; 980=980nm; 1030=1030nm; 1064=1064nm; S=Specify
② Configuration Type 12=1x2, 22=2x2
③ Coupling Ratio 50=50/50; 40=40/60; 30=30/70; 20=20/80; 10=10/90; 01=1/99; S=Specify
④ Working Axis B=Both axis working, F=Slow Axis Working, Fast axis blocked
⑤ Fiber Type PM780; PM980; S=Specify
⑥ Power Handling 0L=0.5W; 01=1W; 02=2W
⑦ Package Dimensions S1=5.5x35mm; S=Specify
⑧ Pigtail Type 00=bare fiber; 09=900um loose tube
⑨ Fiber Length 08=0.8m; 10=1m; S=Specify
⑩ Connector Type FA=FC/APC; FP=FC/UPC; SA=SC/APC; SP=SC/UPC; S=Specify
