Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Polarization Maintaining Components
Created with Pixso. 1x2 and 2x2 Polarization Maintaining Filter Coupler with 1310/1480/1550/1940/2000nm Wavelength and High Extinction Ratio
1x2 and 2x2 Polarization Maintaining Filter Coupler with 1310/1480/1550/1940/2000nm Wavelength and High Extinction Ratio
  • name
  • name
  • name
  • name
  • name
  • name

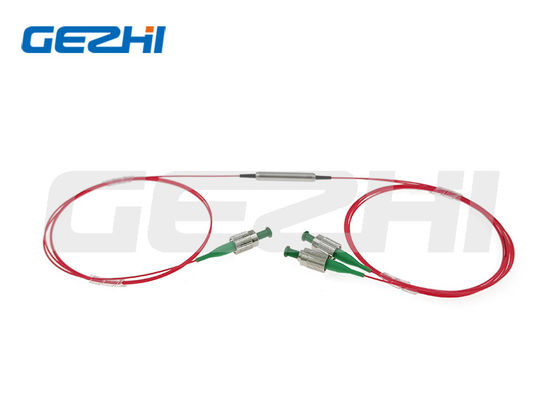

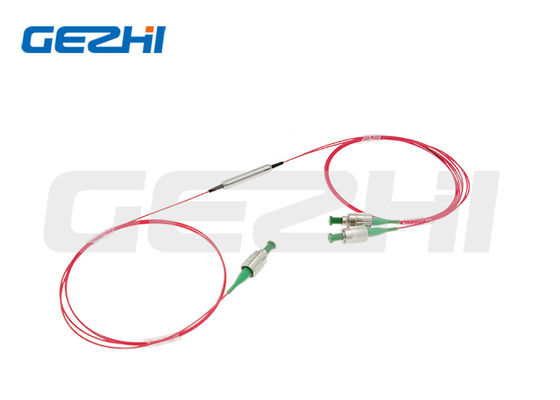

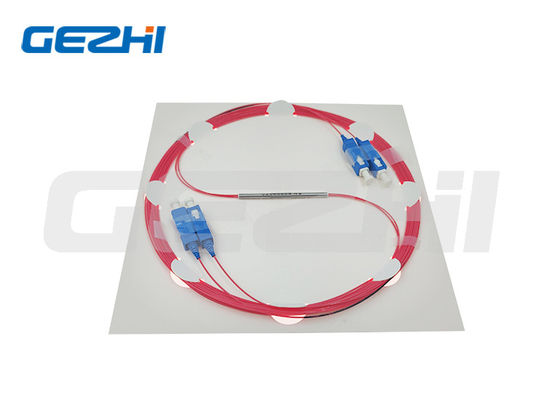

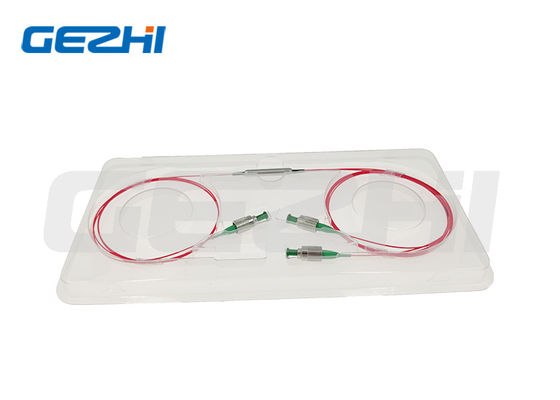

1x2 and 2x2 Polarization Maintaining Filter Coupler with 1310/1480/1550/1940/2000nm Wavelength and High Extinction Ratio

Brand Name: GEZHI or OEM
Model Number: 1x2,2x2 PM Filter Coupler
MOQ: 1pc
Price: US$288-US$988
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Wavelength:
1310/1480/1550/1940/2000nm
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

Polarization Maintaining Filter Coupler

,

FTTx Solutions PM Filter Coupler

,

2x2 PM Filter Coupler

Product Description
1x2 2x2 Polarization Maintaining Filter Coupler Wavelength 1310/1480/1550/1940/2000nm
Factory price 1x2,2x2 Polarization Maintaining Filter Coupler Wavelength 1310/1480/1550/1940/2000nm
Product Overview
The Polarization Maintaining Coupler is a micro optic filter type device that provides optical signal splitting while preserving polarization with high ER. The Polarization Maintaining Coupler is available in a wide range of coupling ratios from 1% to 50%, and is also available in 1x2 and 2x2 types.

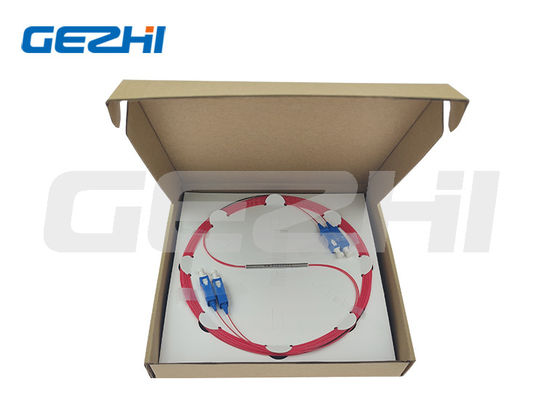

Product Packaging
1x2 and 2x2 Polarization Maintaining Filter Coupler with 1310/1480/1550/1940/2000nm Wavelength and High Extinction Ratio 0 1x2 and 2x2 Polarization Maintaining Filter Coupler with 1310/1480/1550/1940/2000nm Wavelength and High Extinction Ratio 1 1x2 and 2x2 Polarization Maintaining Filter Coupler with 1310/1480/1550/1940/2000nm Wavelength and High Extinction Ratio 2
Applications & Features
Applications
  • EDFA & Raman Amplifier
  • Fiber Sensor
  • Fiber Optical Instrument
Features
  • Low Insertion Loss
  • High Return Loss
  • High Extinction Ratio
Product Specification
Parameters Unit Values
Type / 1x2 or 2x2
Center Wavelength nm 1310 | 1480 | 1550 | 1940 | 2000
Operating Wavelength Range nm ±40 | ±40 | ±40 | ±40 | ±40
Tap Coupling Ratio % 1±0.5%, 5±1.0%, 10±2.0%, and 50%
Insertion Loss dB IL related to Coupling Ratio
Excess Loss dB 1x2:≤0.7 ; 2x2:≤1.0 | 1x2:≤1.2 ; 2x2:≤1.5
Uniformity (Only for 50/50) dB 1x2:≤0.4 ; 2x2:≤0.6 | 1x2:≤0.6 ; 2x2:≤0.8
Extinction Ratio dB 1x2:≥20 ; 2x2:≥18 | 1x2:≥18 ; 2x2:≥17
Return Loss dB ≥50
Max Power Handling (CW) W 0.5, 1, 2 or 5
Tensile Load N ≤5
Operating Temperature ℃ -5~+75
Storage Temperature ℃ -40~+85
Note:
1. Customization is available. The connector default slow axis alignment key.
Above specifications are for device without connector. If with connector, IL will be 0.3dB higher, return loss will be reduced 5dB and Extinction Ratio will reduce 2dB.
2. For >10W high power applications, we will use heat sink package.
3. If there is pulse application, please be sure to inform us of pulse energy and peak power.
Dimensions
1x2 and 2x2 Polarization Maintaining Filter Coupler with 1310/1480/1550/1940/2000nm Wavelength and High Extinction Ratio 3
Ordering Information
PMFC-XXXX-XX-XX-X-XX-XX-XX-XX-XX-XX
① Wavelength: 1310=1310nm; 1480=1480nm; 1550=1550nm; 1940=1940nm; 2000=2000nm; S=Specify
② Configuration Type: 12=1x2, 22=2x2
③ Coupling Ratio: 50=50/50; 40=40/60; 30=30/70; 20=20/80; 10=10/90; 01=1/99; S=Specify
④ Working Axis: B=Both axis working, F=Slow Axis Working, Fast axis blocked
⑤ Fiber Type: PM1300; PM1550; PM1950; S=Specify
⑥ Power Handling: 0L=0.5W; 01=1W; 02=2W
⑦ Package Dimensions: S1=5.5x35mm; S=Specify
⑧ Pigtail Type: 00=bare fiber; 09=900um loose tube
⑨ Fiber Length: 08=0.8m; 10=1m; S=Specify
⑩ Connector Type: FA=FC/APC; FP=FC/UPC; SA=SC/APC; SP=SC/UPC; S=Specify
