Polarization Maintaining Components
Created with Pixso. Polarization Maintaining Dense Wavelength Division Multiplexer with Low Insertion Loss and High Isolation for GPON Networks

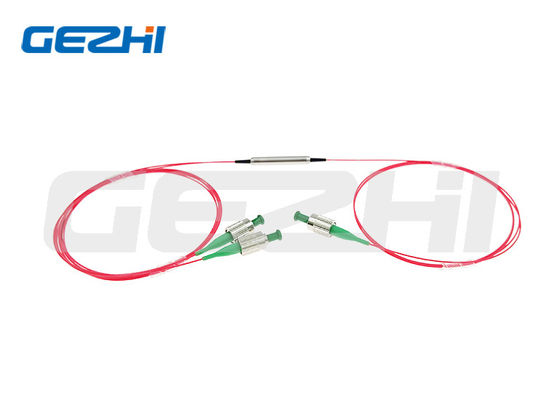

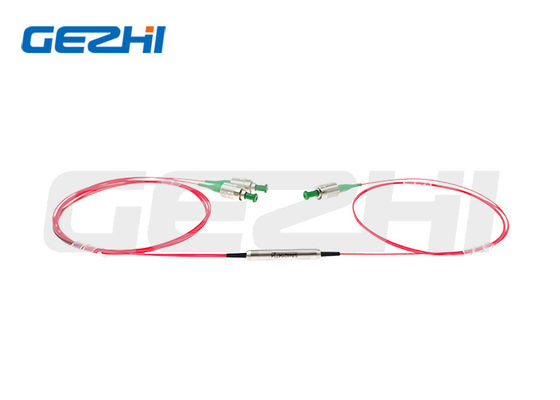

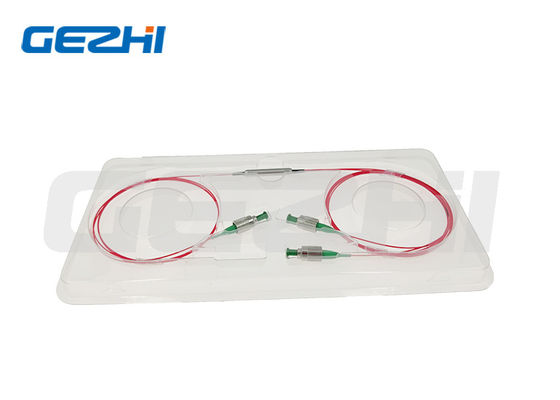

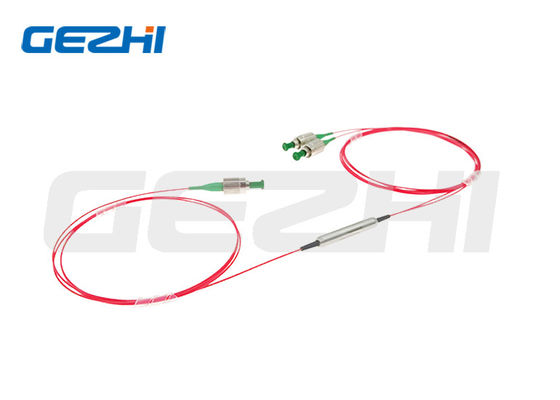

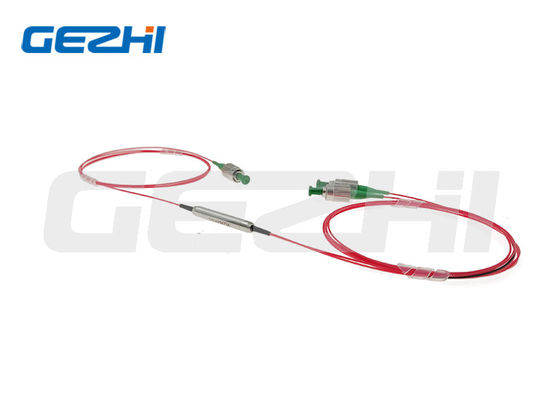

Polarization Maintaining Dense Wavelength Division Multiplexer with Low Insertion Loss and High Isolation for GPON Networks
  • name
  • name
  • name
  • name
  • name
  • name

Polarization Maintaining Dense Wavelength Division Multiplexer with Low Insertion Loss and High Isolation for GPON Networks

Brand Name: GEZHI or OEM
Model Number: PM DWDM
MOQ: 1pc
Price: US$288-US$988
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Fiber Type:
PM Panda Fiber
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

Polarization Maintaining Components DWDM

,

GPON Networks PM DWDM

,

PM Dense Wavelength Division Multiplexer

Product Description
GPON Networks Polarization Maintaining Components Dense Wavelength Division Multiplexer
Product Overview

Gezhi Photonics Polarization Maintaining Dense Wavelength Division Multiplexer series is designed and manufactured to international standards. The PM DWDM preserves the polarization of optical signals using environmentally stable Thin Film Filters and advanced packaging technology to achieve wide passband, low insertion loss, high channel isolation, excellent environmental stability and high extinction ratio. These devices can be used individually for single channel add/drop functions or in DWDM systems and sensor systems.

Polarization Maintaining Dense Wavelength Division Multiplexer with Low Insertion Loss and High Isolation for GPON Networks 0 Polarization Maintaining Dense Wavelength Division Multiplexer with Low Insertion Loss and High Isolation for GPON Networks 1 Polarization Maintaining Dense Wavelength Division Multiplexer with Low Insertion Loss and High Isolation for GPON Networks 2
Applications
  • DWDM Module
  • DWDM System
  • GPON Networks
  • CATV Links
Features
  • Low Insertion Loss
  • High Return Loss
  • High Isolation
  • High Reliability & Stability
Product Specifications
Parameters Unit Values
Channel Space Ghz 100 | 200
Center Wavelength nm ITU Grid
Center Wavelength Accuracy nm ±0.05 | ±0.1
Channel Pass band (@-0.5dB) nm 0.22 | 0.5
Max. Insertion Loss at 23℃ Transmission Channel dB 1.0 | 0.9
Reflection Channel dB 0.4 | 0.4
Min. Isolation at 23℃ Adjacent Channel dB 30 | 30
Non-adjacent Channel dB 40 | 40
Reflection Channel dB 12 | 12
Max. Channel Flatness dB 0.3
Min. Extinction Ratio at 23℃ dB 20
Max. Wavelength Thermal Stability nm/℃ 0.003
Max. Insertion Loss Thermal Stability dB/℃ 0.005
Min. Return Loss at 23℃ dB 50
Max. Power Handling (CW) mW 500
Fiber Type - PM Panda fiber
Operating Temperature ℃ 0~+70
Storage Temperature ℃ -40~+85

With connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.

Connector key is aligned to slow axis.

Dimensions
Polarization Maintaining Dense Wavelength Division Multiplexer with Low Insertion Loss and High Isolation for GPON Networks 3
Ordering Information
PMDWDM-11-234-555-67-8-999
11 - Wavelength: 26=26CH, 27=27CH,..., 40=40CH, 41=41CH, SS=Specified
2 - Configuration: 2=1x1, 3=1x2
3 - Channel Space: 1=100G, 2=200G
4 - Working Axis: B=Both axis working, F=Fast axis blocked
555 - Fiber Type: 001=PM1550, 002=PM1310, SSS=Specified
6 - Package Dimensions: 0=φ5.5x35mm, S=Specified
7 - Pigtail Type: 0=bare fiber, 1=900μm loose tube
8 - Fiber Length: 0.8=0.8m, 1.0=1m, S=Specified
999 - Connector Type: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
