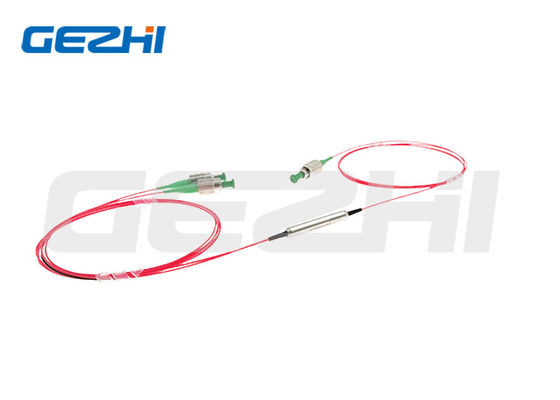

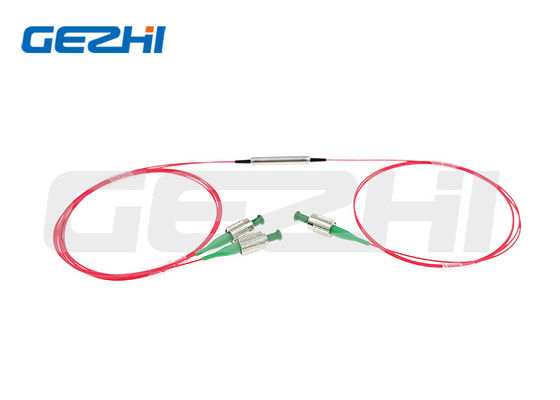

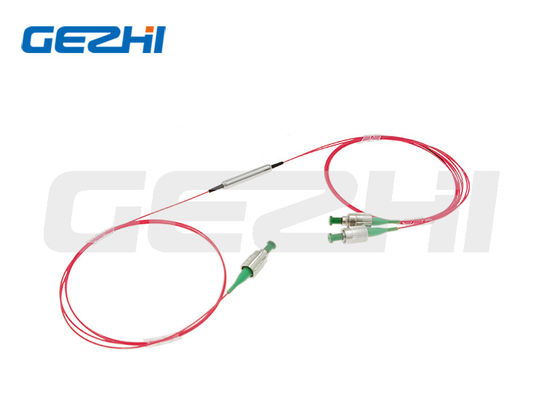

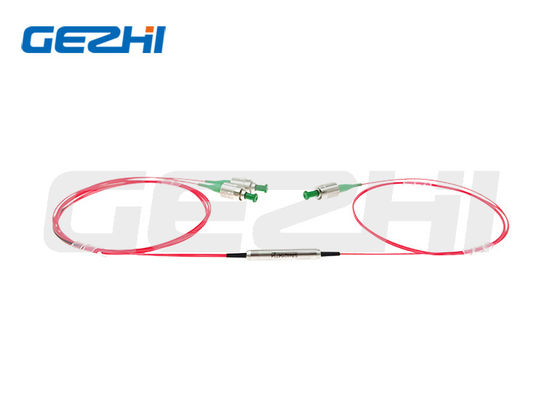

1x2 Port Polarization Maintaining Filter WDM with Low Insertion Loss and High Return Loss for CATV Systems

Name: 1x2 Port Polarization Maintaining Filter WDM with Low Insertion Loss and High Return Loss for CATV Systems
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: PM FWDM
Price: 638.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	PM FWDM
MOQ:	1pc
Price:	US$288-US$988
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Connector Type:

FC/UPC,FC/APC,SC/UPC,SC/APC Or Customized

Packaging Details:

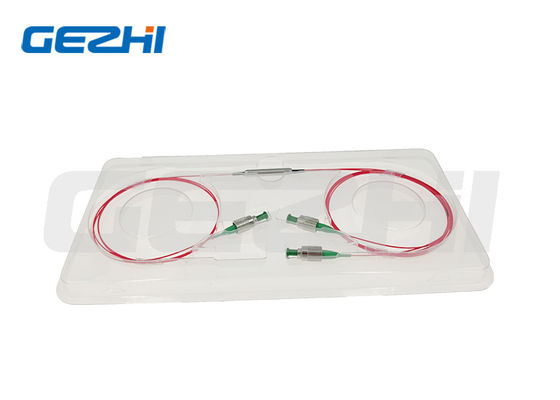

Paper box

Supply Ability:

5000pcs per month

Highlight:

1x2 Polarization Maintaining Filter

CATV System Polarization Maintaining Filter

PM Wavelength Division Multiplexer

Product Description

1x2 Polarization Maintaining Filter Wavelength Division Multiplexer For CATV System

Product Overview

The polarization maintaining filter WDM series provides wavelength division multiplexing while maintaining signal polarization. The PM FWDM is based on environmentally stable thin film filters technology and is characterized with high extinction ratio, low insertion loss, and high return loss. They are ideal for high speed WDM network systems.

Applications

CATV System
CWDM/DWDM Module
EPON/GPON Networks

Features

Low Insertion Loss
High Return Loss
High Reliability & Stability

Product Specifications

Parameters	Unit	Values
Type	-	1064/980 \| 1550/980 \| 1550/1064 \| 1550/1480 \| 2000/1550
Transmission Wavelength	nm	1020~1080 \| 1520~1580 \| 1520~1580 \| 1535~1565 \| 1950~2050
Reflection Wavelength	nm	960~990 \| 960~990 \| 1020~1080 \| 1480±10 \| 1570±10
Max. Insertion Loss at 23℃	Transmission Channel	dB	0.8 \| 0.7 \| 0.8 \| 0.8 \| 0.8
	Reflection Channel	dB	0.6 \| 0.6 \| 0.6 \| 0.6 \| 0.8
Min. Transmission Isolation @Reflection	dB	30 \| 30 \| 30 \| 30 \| 25
Min. Reflection Isolation @Transmission	dB	15 \| 15 \| 15 \| 15 \| 12
Max. Channel Flatness	dB	0.4
Min. Extinction Ratio at 23℃	Transmission Channel	dB	20
	Reflection Channel	dB	18
Max. Wavelength Thermal Stability	nm/℃	0.003
Max. Insertion Loss Thermal Stability	dB/℃	0.005
Min. Return Loss at 23℃	dB	50
Max. Power Handling (CW)	mW	500
Max. Tensile Load	N	5
Operating Temperature	℃	0~+70
Storage Temperature	℃	-40~+85

With connectors, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.

Connector key is aligned to slow axis.

Dimensions

Ordering Information

PMFWDM-1111-23-444-555-67-8-999

Code Segment	Description
1111 - Wavelength	5506=T1550nm/R1064nm, 0698=T1064nm/R980nm, SSSS=Specified
2 - Pump Type	F=Forward, B=Backward
3 - Working Axis for Signal Route	B=Both axis working, F=Fast Axis Blocked
444 - Fiber Type for Com & Pass	001=PM1550, 003=PM980, 045=PM1950, SSS=Specified
555 - Fiber Type for Ref	001=PM1550, 003=PM980, 004=Hi1060, 008=SMF-28E, SSS=Specified
6 - Package Dimensions	0=φ5.5x35mm, S=Specified
7 - Pigtail Type	0=bare fiber, 1=900μm loose tube
8 - Fiber Length	0.8=0.8m, 1.0=1m, S=Specified
999 - Connector Type	0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
