Polarization Maintaining Components
Created with Pixso. 1260nm - 1620nm Polarization Maintaining Coarse WDM with Low Insertion Loss and High Isolation for CWDM/OADM Networks

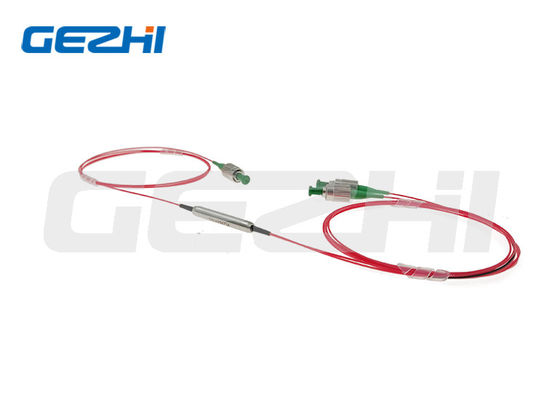

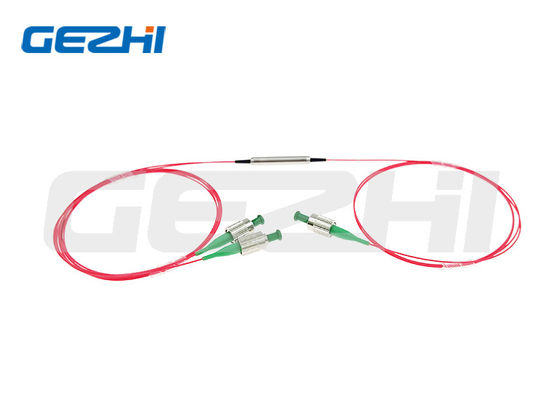

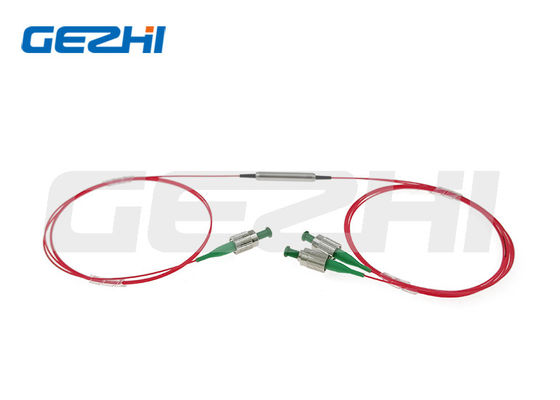

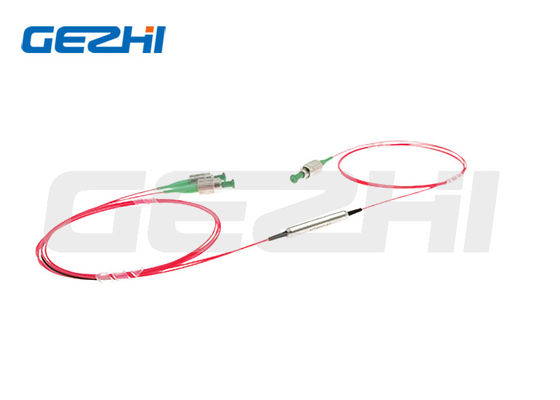

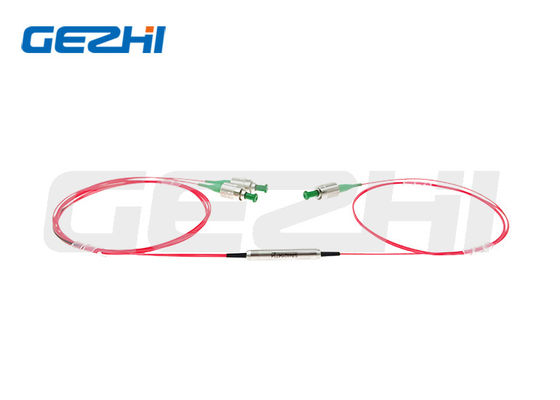

1260nm - 1620nm Polarization Maintaining Coarse WDM with Low Insertion Loss and High Isolation for CWDM/OADM Networks
  • name
  • name
  • name
  • name
  • name
  • name

1260nm - 1620nm Polarization Maintaining Coarse WDM with Low Insertion Loss and High Isolation for CWDM/OADM Networks

Brand Name: GEZHI or OEM
Model Number: PM CWDM
MOQ: 1pc
Price: US$288-US$988
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Operating Wavelength:
1260~1620nm
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

Polarization Maintaining Coarse WDM

,

1620nm Polarization Maintaining Coarse WDM

Product Description
1260nm - 1620nm Polarization Maintaining Coarse WDM For CWDM/OADM Networks
Product Overview

The Polarization Maintaining Coarse Wavelength Division Multiplexer Filter is designed and manufactured to international standards. These devices utilize environmentally stable thin film filters and advanced packaging technology to achieve wide passband, low insertion loss, high channel isolation, and excellent environmental stability.

They can be used individually to perform single channel add or drop functions, or cascaded in sequence for multi-channel applications in CWDM systems. They are also employed to block unwanted noise signals in EDFAs and fiber laser systems.

The components are characterized by high isolation, low insertion loss, high extinction ratio, excellent environmental stability, and high power handling capability.

1260nm - 1620nm Polarization Maintaining Coarse WDM with Low Insertion Loss and High Isolation for CWDM/OADM Networks 0 1260nm - 1620nm Polarization Maintaining Coarse WDM with Low Insertion Loss and High Isolation for CWDM/OADM Networks 1 1260nm - 1620nm Polarization Maintaining Coarse WDM with Low Insertion Loss and High Isolation for CWDM/OADM Networks 2
Applications
  • CWDM System
  • CWDM/OADM Module
  • CWDM/OADM Networks
Features
  • Low Insertion Loss & Isolation
  • High Return Loss
  • High Reliability & Stability
  • Wide Transmission Width
Product Specifications
Parameters Unit Values
Center Wavelength nm ITU or ITU+1
Operating Wavelength nm 1260~1460 or 1460~1620 or 1260~1620
Channel Space nm 20
Min. Channel Bandwidth @λc nm ±6.5
Max. Channel Flatness nm 0.4
Max. Insertion Loss at 23℃ Transmission Channel dB 0.6
Reflection Channel dB 0.4 (1260~1460 or 1460~1620) or 0.6 (1260~1620)
Min. Isolation at 23℃ Adjacent Channel dB 30
Non-adjacent Channel dB 40
Reflection Channel dB 12
Min. Return Loss dB 50
Min. Extinction Ratio at 23℃ dB 20
Max. Wavelength Thermal Stability nm/℃ 0.003
Max. Insertion Loss Thermal Stability dB/℃ 0.005
Max. Power Handling (CW) mW 500
Operating Temperature ℃ 0~+70
Storage Temperature ℃ -40~+85

With connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.

Connector key is aligned to slow axis.

Dimensions
1260nm - 1620nm Polarization Maintaining Coarse WDM with Low Insertion Loss and High Isolation for CWDM/OADM Networks 3
Ordering Information
PMCWDM-11-234-555-67-8-999
11 - Center Wavelength: 27=1270nm or 1271nm,..., 61=1610nm or 1611nm, SS=Specified
2 - Operating Wavelength: F=Full wave (1260nm~1620nm), H=Half wave (1260~1460 or 1460~1620)
3 - Port Type: 3=1x2
4 - Working axis for Signal: B=Both axis working, F=Fast Axis Blocked
555 - Fiber Type: 001=PM1550, 002=PM1310, SSS=Specified
6 - Package Dimensions: 0=φ5.5x35mm, S=Specified
7 - Pigtail Type: 0=250μm bare fiber, 1=900μm loose tube
8 - Fiber Length: 0.8=0.8m, 1.0=1m, S=Specified
999 - Connector Type: 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
