Created with Pixso. 980/1550nm Polarization Maintaining Fused WDM with High Extinction Ratio and Low Insertion Loss for Fiber Sensors

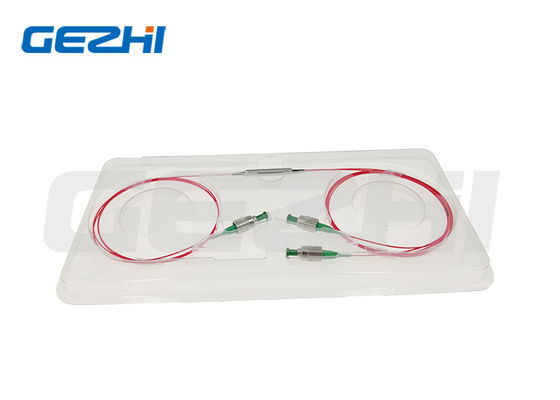

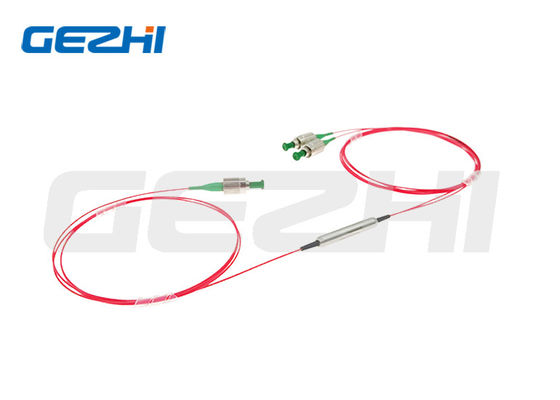

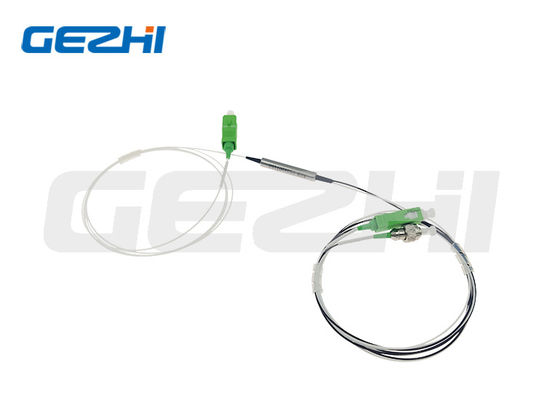

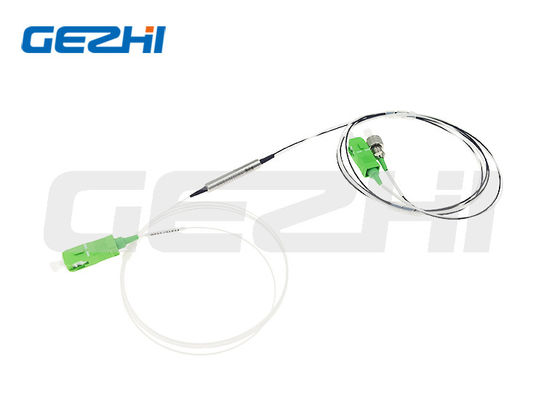

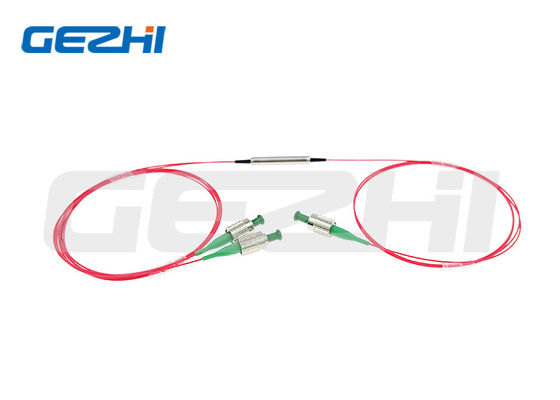

980/1550nm Polarization Maintaining Fused WDM with High Extinction Ratio and Low Insertion Loss for Fiber Sensors
  • name
  • name
  • name
  • name
  • name
  • name

980/1550nm Polarization Maintaining Fused WDM with High Extinction Ratio and Low Insertion Loss for Fiber Sensors

Brand Name: GEZHI or OEM
Model Number: PM Fused WDM
MOQ: 1pc
Price: US$288-US$988
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Operating Bandwidth:
±15 Nm
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

Polarization Maintaining Fused WDM

,

PM Fused WDM

,

Fused WDM For Fiber Sensor

Product Description
980/1550nm Polarization Maintaining Fused WDM For Fiber Sensor
Product Overview

Gezhi Photonics utilizes unique fusing techniques and polarization maintaining fiber to manufacture the 980/1550nm polarization maintaining fused WDM. This product features low excess loss, compact size, and high polarization extinction ratio. PM fused WDM is widely used in fiber lasers, optical sensors, and optical gyroscopes.

This product can also be configured to multiplex other wavelengths, including 980/1030 nm (for pulsed laser applications) and 1064/1550 nm (for Erbium-Ytterbium pumping). Available in low power (300mW, 500mW) and high power (20W) handling versions. These components are ideal for polarization maintaining fiber amplifiers, fiber lasers, high-speed communication systems, and instrumentation applications.

980/1550nm Polarization Maintaining Fused WDM with High Extinction Ratio and Low Insertion Loss for Fiber Sensors 0 980/1550nm Polarization Maintaining Fused WDM with High Extinction Ratio and Low Insertion Loss for Fiber Sensors 1 980/1550nm Polarization Maintaining Fused WDM with High Extinction Ratio and Low Insertion Loss for Fiber Sensors 2
Applications
  • Testing Instruments
  • Coherent Communication
  • EDFA
  • Fiber Sensors
Features
  • High Extinction Ratio
  • High Isolation
  • Low Insertion Loss
  • High Stability & Reliability
Product Specifications
Parameter Unit Value
Type / 650/1064 | 980/1064 | 980/1550 | 1064/1550 | 2000/1550
Operating Bandwidth nm ±15
Max. Insertion Loss at 23℃ Signal Port dB 1.0 | 0.8 | 0.7 | 0.7 | 1.2
Pump Port dB 1.0 | 0.8 | 0.7 | 0.7 | 1.2
Min. Extinction Ratio at 23℃ dB 18 | 18 | 20 | 20 | 15
Min. Isolation at 23℃ dB 10 | 13 | 18 | 18 | 13
Package Dimensions mm φ3*54 | φ3*70 | φ3*54 | φ3*54 | φ3*60
Min. Directivity dB 50
Min. Return Loss at 23℃ dB 50
Max. Optical Power (CW) W 3
Fiber Type - PM Panda Fiber
Operating Temperature ℃ -5~+75
Storage Temperature ℃ -40~+85

With connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.

Connector key is aligned to slow axis.

Dimensions
980/1550nm Polarization Maintaining Fused WDM with High Extinction Ratio and Low Insertion Loss for Fiber Sensors 3
Ordering Information
PMFUWDM-1111-2-333-45-6-777-8899 (1x2 Type)
PMFUWDM-1111-2-333-45-6-7777-8899 (2x2 Type)
Code Segment Description
1111 - Wavelength 65/06=650/1064nm, 9806=980/1064, 9855=980/1550, 0655=1064/1550, SSSS=Specified
2 - Type 3=1x2, 4=2x2
333 - Fiber type 001=PM1550, 003=PM980, 045=PM1950, SSS=Specified
4 - Package Dimensions 0=φ3.0x54mm, 1=φ3.0x60mm, 2=φ3.0x70mm, S=Specified
5 - Pigtail type 0=bare fiber, 1=900μm loose tube
6 - Fiber length 0.8=0.8m, 1.0=1m, S=Specified
7777 - Connector type 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
88 - Average Power 00=500mW, 01=1W, 03=3W, SS=Specified
99 - Peak Power 00=Continuous Wave, 01=1kW, 10=10kW, SS=Specified
