Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Polarization Maintaining Components
Created with Pixso. Customized Slow Axis Polarization Maintaining Fiber Patch Cord with Low Insertion Loss and High Extinction Ratio
Customized Slow Axis Polarization Maintaining Fiber Patch Cord with Low Insertion Loss and High Extinction Ratio
  • name
  • name
  • name
  • name
  • name

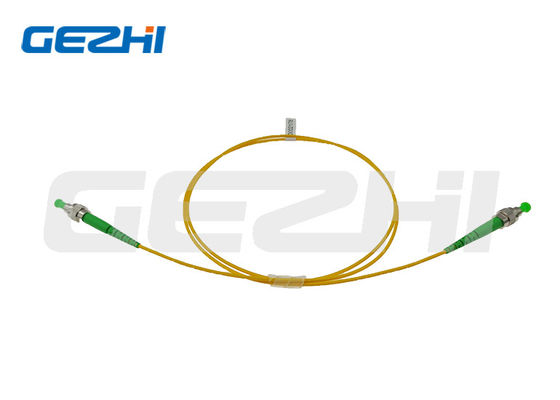

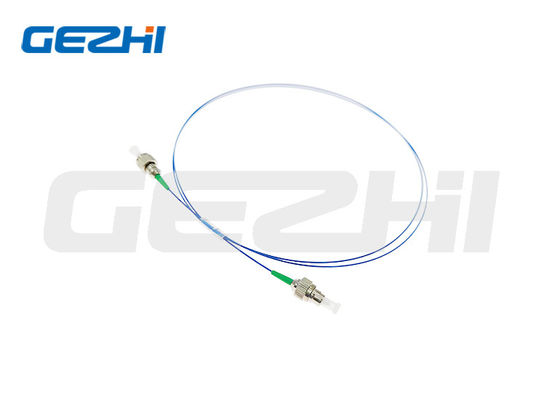

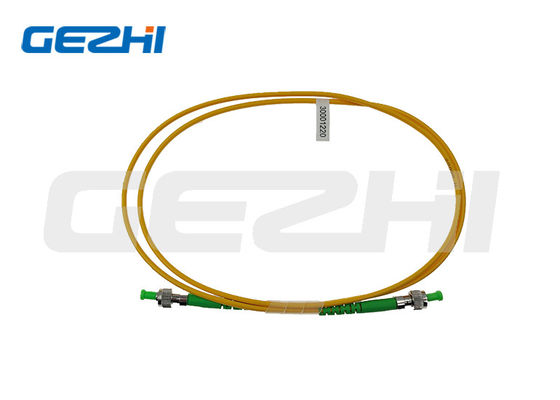

Customized Slow Axis Polarization Maintaining Fiber Patch Cord with Low Insertion Loss and High Extinction Ratio

Brand Name: GEZHI or OEM
Model Number: PM Fiber Optic Patch Cable
MOQ: 1pc
Price: US$288-US$988
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Cable Jacket:
PVC
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

PVC Optical Fiber Patch Cord

,

SM PM Fiber Patch Cord

,

Customized PM Fiber Patch Cord

Product Description
PVC Polarization Maintaining Optical Fiber Patch Cord Customized LC/SC/FC/ST Simplex SM
Product Overview

Customized LC/SC/FC/ST Simplex Slow Axis Single Mode PVC Polarization Maintaining Fiber Optic Patch Cable

Polarization Maintaining (PM) Optical Fiber Patch Cord, sometimes called PM fiber patch cable or PM fiber jumper, is fabricated from Panda polarization-maintaining fibers and high-quality connectors that are compatible with industry standards. It consists of a fixed length of PM single-mode fiber cable with like connectors installed on both ends (or, in the case of a hybrid cable, different connectors). For PM applications, polarization-maintaining fiber is the optimal technical choice for high performance. Gezhi Photonics Panda PM fiber patch cord delivers excellent performance in the field after installation, featuring low insertion loss, high extinction ratio, and remarkable stability.

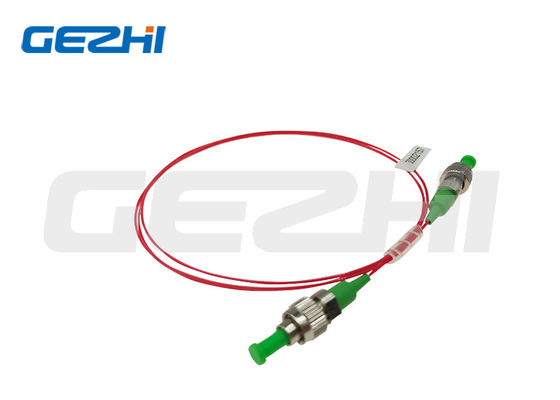

Customized Slow Axis Polarization Maintaining Fiber Patch Cord with Low Insertion Loss and High Extinction Ratio 0 Customized Slow Axis Polarization Maintaining Fiber Patch Cord with Low Insertion Loss and High Extinction Ratio 1 Customized Slow Axis Polarization Maintaining Fiber Patch Cord with Low Insertion Loss and High Extinction Ratio 2
Key Features
  • Low Insertion Loss
  • High Return Loss
  • High Extinction Ratio
  • High Reliability
  • High Stability
Applications
  • Optical Fiber Amplifiers
  • Test Instrument
  • Fiber Sensor
  • Research
  • Fiber Laser
Technical Specifications
Parameter Unit Value
Connector Type - FC, SC, LC
Center Wavelength nm 2000, 1950 | 1550, 1310 | 1060, 980 | 850, 780 | 633, 532
Max. Insertion Loss dB 0.5 | 0.3 | 0.5 | 0.5 | 0.5
Min. Extinction Ratio at 23℃ dB 22 | 23 | 23 | 22 | 22
Min. Return loss UPC Type 50 dB
APC Type 60 dB
Fiber Type - PM Panda fiber
Key Orientation - Slow Axis
Tolerance for Axis Alignment deg ±3
Operating Temperature ℃ -20~+70
Storage Temperature ℃ -40~+85

The default connector key is aligned to slow axis.

Package Dimensions
Customized Slow Axis Polarization Maintaining Fiber Patch Cord with Low Insertion Loss and High Extinction Ratio 3
Ordering Information
PMJP-1111-2-333-4-5-67
Position Parameter Options
1111 Wavelength 2000=2000nm, 1550=1550nm, 1310=1310nm, 1064=1064nm, 980=980nm,...
2 Axis Alignment S=Slow axis, F=Fast axis
333 Fiber Type 001=PM1550, 002=PM1310, 003=PM980, SSS=Specified
4 Pigtail Type 0=bare fiber, 1=900μm loose tube, 2=2.0mm loose tube, 3=3.0mm loose tube
5 Fiber Length 0.8=0.8m, 1.0=1m, ......, 20=20m, S=Specified
6 Connector for Input 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
7 Connector for Output 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
Tags:

Polarization Maintaining Components

polarization maintaining isolator

polarization maintaining optical circulator
