Created with Pixso. 1310-2050nm Polarization Maintaining In-Line Isolator with High Isolation and Low Insertion Loss for Fiber Sensors

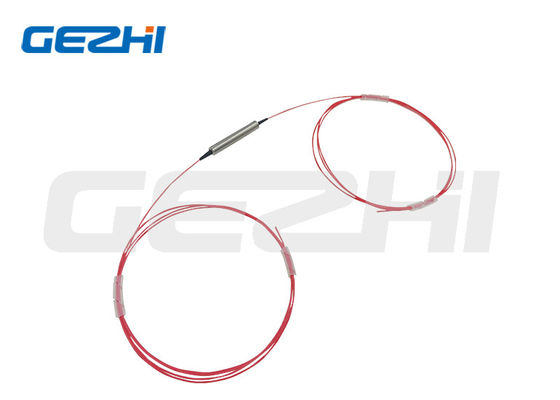

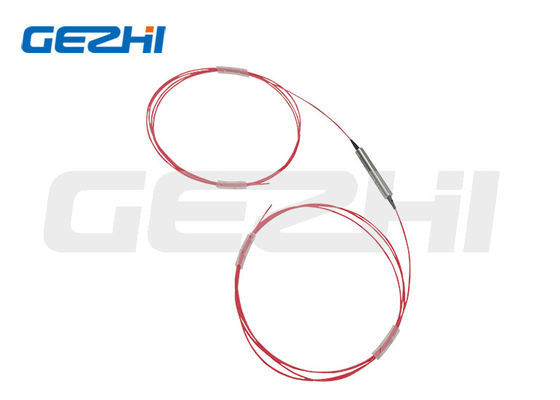

1310-2050nm Polarization Maintaining In-Line Isolator with High Isolation and Low Insertion Loss for Fiber Sensors
  • name
  • name
  • name
  • name

1310-2050nm Polarization Maintaining In-Line Isolator with High Isolation and Low Insertion Loss for Fiber Sensors

Brand Name: GEZHI or OEM
Model Number: PM In-line Isolator
MOQ: 1pc
Price: US$288-US$988
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Wavelength Range:
1310-2050nm
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

Fiber Sensor Polarization Maintaining Isolator

,

Polarization Maintaining In Line Isolator

,

PM In Line Isolator

Product Description
1310 - 2050nm Polarization Maintaining In Line Isolator For Fiber Sensor
Product Overview

High Stability & Reliability 1310-2050nm Polarization Maintaining In-line Isolator for Fiber Sensor

The isolator is designed to transmit positive light while blocking reflected light from the terminal. Characterized by low insertion loss, high isolation, high return loss, and excellent environmental stability and reliability, it serves as a critical component in fiber amplifiers, fiber lasers, high-speed communication systems, and instrumentation applications.

1310-2050nm Polarization Maintaining In-Line Isolator with High Isolation and Low Insertion Loss for Fiber Sensors 0 1310-2050nm Polarization Maintaining In-Line Isolator with High Isolation and Low Insertion Loss for Fiber Sensors 1 1310-2050nm Polarization Maintaining In-Line Isolator with High Isolation and Low Insertion Loss for Fiber Sensors 2
Key Features
  • Low Insertion Loss
  • High Return Loss
  • High Extinction Ratio
  • High Isolation
  • High Stability & Reliability
Applications
  • Communication Systems
  • Test Instrument
  • Fiber Sensor
  • Research
Technical Specifications
Parameter Unit Value
Stage - Single | Dual | Single | Dual
Center Wavelength nm 2050, 2000, 1950 | 1550, 1480, 1310
Operating Wavelength Range nm ±20
Typ. Peak Isolation at 23℃ dB 20 | 35 | 42 | 58
Min. Isolation at 23℃ dB 18 | 30 | 28 | 45
Typ. Insertion Loss at 23℃ dB 0.8 | 1.0 | 0.4 | 0.5
Max. Insertion Loss at 23℃ dB 1.2 | 1.3 | 0.55 | 0.65
Min. Extinction Ratio at 23℃ dB Both axis working: 18-20 | 20
Fast axis Blocked: 20-25 | 23
Min. Return Loss at 23℃ (input/output) dB 50/50
Max. Optical Power (CW) mW 500
Fiber Type - PM Panda Fiber
Max. Tensile Load N 5
Operating Temperature ℃ 0~+70
Storage Temperature ℃ -40~+85
With connectors, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.
Connector key is aligned to slow axis.
Package Dimensions
1310-2050nm Polarization Maintaining In-Line Isolator with High Isolation and Low Insertion Loss for Fiber Sensors 3
Ordering Information
PMIS-1111-23-444-56-7-88
Code Segment Description
1111 - Wavelength 1064=1064nm, 1030=1030nm, 980=980nm,..... | 2000=2000nm, 1550=1550nm, 1480=1480nm, 1310=1310nm, SSSS=Specified
2 - Core Type S=Single-Core | S=Single-core, D=Dual-core
3 - Working Axis F=Fast axis blocked, B=Both axis working, N=Non-PM | B=Both axis working, F=Fast axis blocked
444 - Fiber Type 003=PM980, 004=Hi1060, 014=PM1060L, SSS=Specified | 001=PM1550, 002=PM1310, 045=PM1950, SSS=Specified
5 - Package Dimensions 0=58x28x26mm | 0=5.5x35mm, S=Specified
6 - Pigtail Type 0=bare fiber, 1=900μm loose tube, S=Specified | 0=bare fiber, 1=900μm loose tube, S=Specified
7 - Fiber Length 0.8=0.8m, 1.0=1.0m. S=Specified | 0.8=0.8m, 1.0=1.0m, S=Specified
88 - Connector Type N=None | 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
