High Isolation 1064nm In-line Fiber Optic Polarizer for Polarization Maintaining Components
  • name
  • name
  • name
  • name
  • name

High Isolation 1064nm In-line Fiber Optic Polarizer for Polarization Maintaining Components

Brand Name: GEZHI or OEM
Model Number: Fiber Optic Polarizer
MOQ: 1pc
Price: US$288-US$988
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Wavelength:
1064nm
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

In Line Fiber Optic Polarizer

,

1064nm Fiber Optic Polarizer

,

Polarization Maintaining Components Polarizer

Product Description
High Isolation 1064nm In Line Fiber Optic Polarizer Polarization Maintaining Components
Product Overview

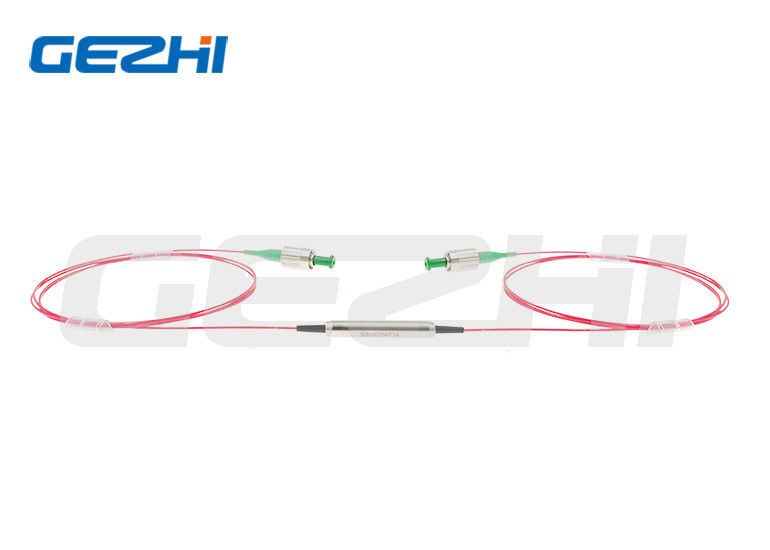

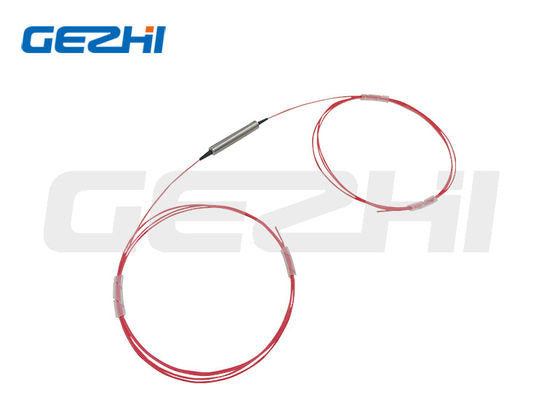

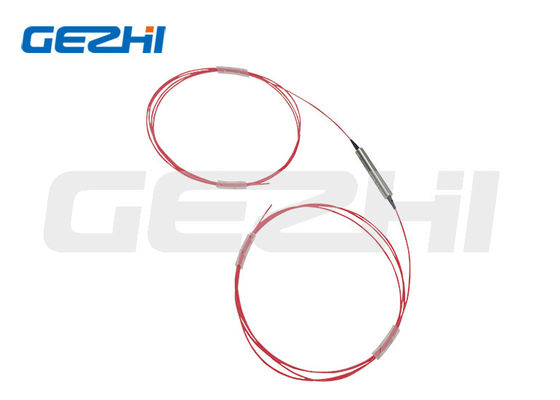

High Isolation 1064nm Mini In-line Size Fiber Optic Polarizer PM Fiber Out

The In-line Polarizer is designed to pass light with one specific polarization while blocking the other polarization. It can be used to convert unpolarized light into polarized light with high extinction ratio. It can also be used to enhance the extinction ratio of signals with its excellent polarization properties. It is ideal for high speed communication systems and test instrumentations where high polarization extinction ratio is required.

High Isolation 1064nm In-line Fiber Optic Polarizer for Polarization Maintaining Components 0 High Isolation 1064nm In-line Fiber Optic Polarizer for Polarization Maintaining Components 1
Features & Applications
Features Applications
Low Insertion Loss Communication Systems
High Return Loss Test Instrument
High Extinction Ratio Fiber Sensor
High Reliability Research
High Stability
Technical Specifications
Parameter Unit Value
Center Wavelength nm 1064
Operating Wavelength Range nm ±30
Typ. Insertion Loss at 23℃ dB 0.4
Max. Insertion Loss at 23℃ dB 0.6
Min. Return Loss at 23℃ dB 50
Typ. Extinction Ratio at 23℃ dB 30
Min. Extinction Ratio at 23℃ dB 28
Fiber Type for Input & Output / SM→SM or SM→PM or PM→PM
Max. Optical Power (CW) mW 300
Package Dimension mm φ3.0×30 or φ3.2×30
Max. Tensile Load N 5
Operating Temperature ℃ -5~+70
Storage Temperature ℃ -40~+85

With connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower.

Connector key is aligned to slow axis.

Package Dimensions
High Isolation 1064nm In-line Fiber Optic Polarizer for Polarization Maintaining Components 2
Ordering Information

MILP-1111-23-444-555-67-8-9A

Code Position Description
1111 - Wavelength 1064=1064nm, SSSS=Specified
2 - Fiber Type Option 1=SM→SM, 2=SM→PM, 3=PM→PM
3 - Working Axis F=Fast axis blocked, N=Non-PM
444 - Fiber Type for Input 003=PM980, 004=Hi1060, SSS=Specified
555 - Fiber Type for Output 003=PM980, 004=Hi1060, SSS=Specified
6 - Package Dimension 0=φ3.0×30mm, 1=φ3.2×30mm
7 - Pigtail Type 0=bare fiber, 1=900μm loose tube
8 - Fiber Length 0.8=0.8m, 1.0=1m, S=Specified
9 - Connector Type for Input 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
A - Connector Type for Output 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified
