| Port: | 1x2 | Product Name: | PM Fused WDM |
|---|---|---|---|
| Wavelength: | Customize | Warranty Time: | 3 Years |
| Application: | Testing Instruments | ||
| High Light: | Polarization Maintaining Fused WDM,1x2 PM Fused WDM,PM Fused WDM |
||
Product Overview of PM Fused WDM

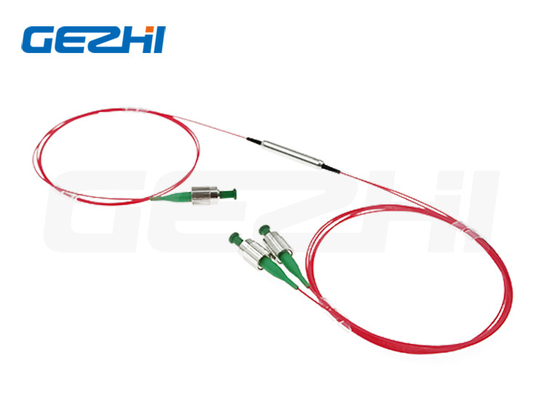

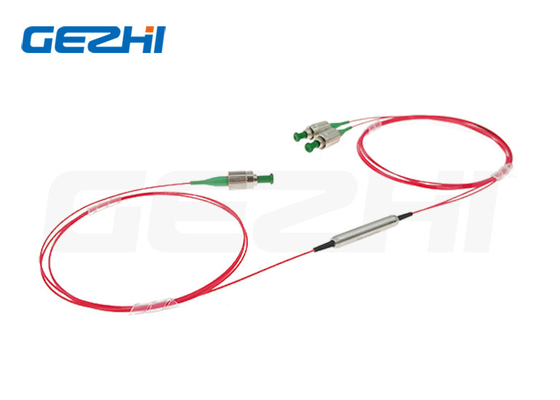

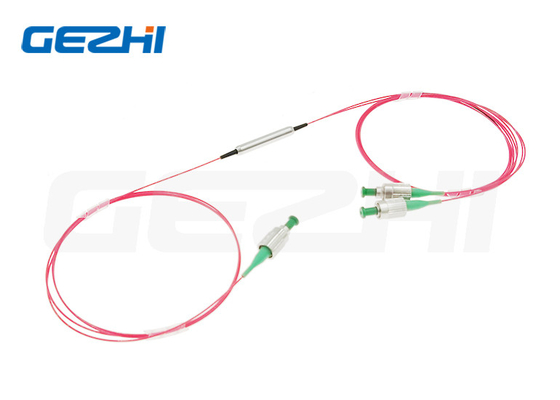

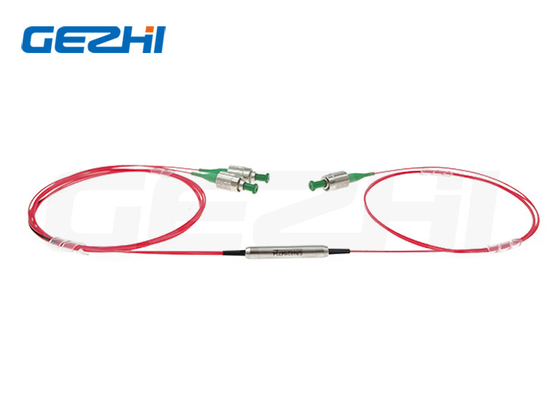

High stability & Reliability 1x2 Polarization Maintaining Fused WDM applied Fiber Sensor
Polarization Maintaining Fused WDM
GEZHI uses unique fusing technique and polarization maintaining fiber to build the polarization maintaining fused WDMThe Polarization Maintaining Fused WD (Wavelength Division Multiplexers) combine or separate light at different wave-engths.They offer very low insertion loss, low polarization dependence, high isolation, and excellent enviromental stabilityThese components have been extensively used in EDFA, CATV, WDM networks and fiber optics instrumentation.
Features & Applications of PM Fused WDM
Features
High power handling
High stability & Reliability
Low Insertion Loss
High Extinction Ratio
High Isolation
Applications
Communications
Monitoring in Coherent Systems
CATV System
CWDM/DWDM Module
EPON/GPON Networks
Specifications of PM Fused WDM
| Parameter | Unit | Value | |||||
| Type | / | 650/1064 | 980/1064 | 980/1550 | 1064/1550 | 2000/1550 | |
| Operating Bandwidth | nm | ±15 | |||||
| Max. Insertion Loss at 23℃ | Signal Port | dB | 1.0 | 0.8 | 0.7 | 0.7 | 1.2 |
| Pump Port | dB | 1.0 | 0.8 | 0.7 | 0.7 | 1.2 | |
| Min. Extinction Ratio at 23℃ | dB | 18 | 18 | 20 | 20 | 15 | |
| Min. Isolation at 23℃ | dB | 10 | 13 | 18 | 18 | 13 | |
| Package Dimensions | mm | φ3*54 | φ3*70 | φ3*54 | φ3*54 | φ3*60 | |
| Min. Directivity | dB | 50 | |||||
| Min. Return Loss at 23℃ | dB | 50 | |||||
| Max. Optical Power (CW) | W | 3 | |||||
| Fiber Type | - | PM Panda Fiber | |||||
| Operating Temperature | ℃ | -5~+75 | |||||
| Storage Temperature | ℃ | -40~+85 | |||||
| With connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower. | |||||||
| Connector key is aligned to slow axis. | |||||||
Dimension
Odering Information of PM Fused WDM
| PMFUWDM-1111-2-333-45-6-777-8899 ( 1x2 Type) / PMFUWDM-1111-2-333-45-6-7777-8899 ( 2x2 Type) | ||
| 1111 - Wavelength: | 65/06=650/1064nm, 9806=980/1064, 9855=980/1550, 0655=1064/1550, SSSS=Specified | |
| 2 - Type: | 3=1x2, 4=2x2 | |
| 333 - Fiber type: | 001=PM1550, 003=PM980, 045=PM1950, SSS=Specified | |
| 4 - Package Dimensions: | 0=φ3.0x54mm, 1=φ3.0x60mm, 2=φ3.0x70mm, S=Specified | |
| 5 - Pigtail type: | 0=bare fiber, 1=900μm loose tube | |
| 6 - Fiber length: | 0.8=0.8m, 1.0=1m, S=Specified | |
| 7777 - Connector type: | 0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified | |
| 88 - Average Power: | 00=500mW, 01=1W, 03=3W, SS=Specified | |
| 99 - Peak Power: | 00=Continuous Wave, 01=1kW, 10=10kW, SS=Specified | |
FAQ
Q1:Can I have a sample order of Polarization Maintaining Fused WDM? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales.
representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms of Polarization Maintaining Fused WDM?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time Polarization Maintaining Fused WDM?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
