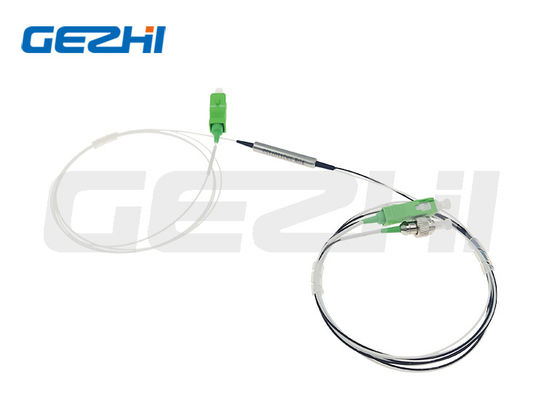

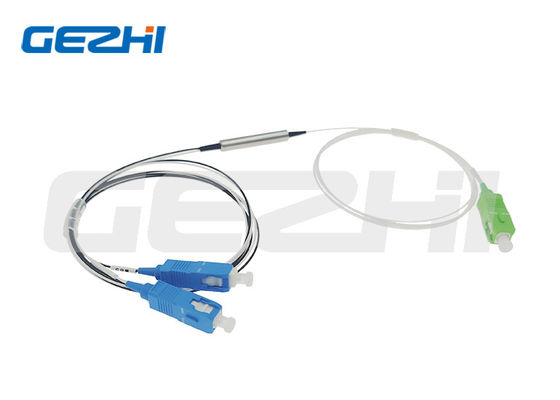

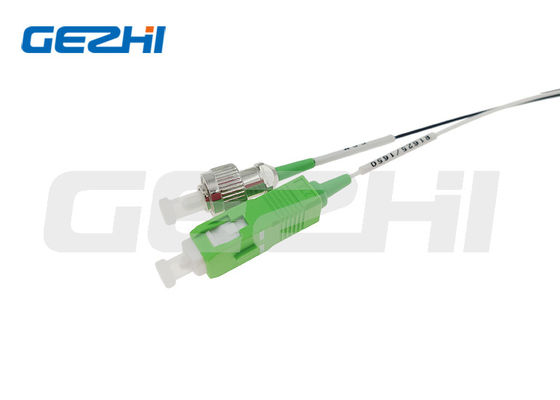

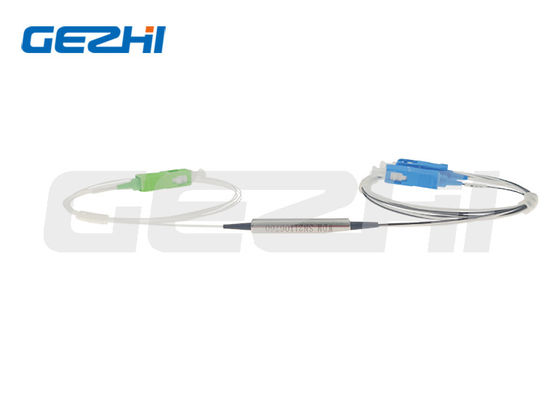

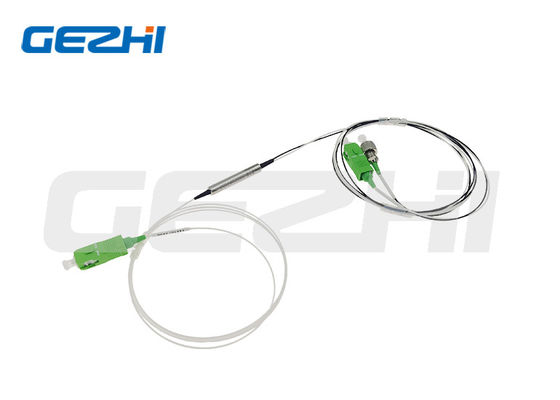

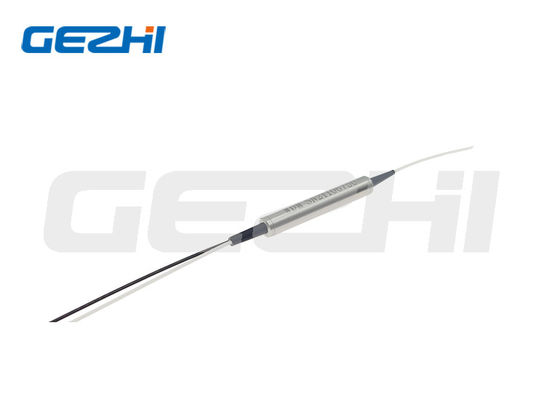

FTTX 3ports FWDM Module Optical Filter with 1310nm 1490nm 1550nm Wavelengths Low Insertion Loss and High Channel Isolation

Name: FTTX 3ports FWDM Module Optical Filter with 1310nm 1490nm 1550nm Wavelengths Low Insertion Loss and High Channel Isolation
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 3 Ports Fiber Optic FWDM
Price: 24.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	3 Ports Fiber Optic FWDM
MOQ:	1pc
Price:	US$15-U$33
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Applications:

System Monitoring

Reflection Band Wavelength Range:

1460~1620

Insertion Loss:

Pass Channel≤0.8

Channel Ripple:

<0.3

Isolation:

Pass Channel>40

Insertion Loss Temperature Sensitivity:

<0.005

Polarization Dependent Loss:

<0.1

Polarization Mode Dispersion:

<0.1

Directivity:

>50

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

3ports WDM Module

FTTX WDM Module

1550nm Optical Filter

Product Description

FTTX 3 Ports Fiber Optic FWDM 1310nm 1490nm 1550nm Optical Filter

Micro-Optical WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy-free optical path.

Key Features

Wide Operating Wavelength Range
Low Insertion Loss
Ultra Flat Wide Passband
High Channel Isolation
High Stability and Reliability
Epoxy-free on Optical Path

Applications

Testing Instruments
FTTH Tri-Play System
CATV Link
WDM System
PON Networks

Technical Specifications

Parameter	Condition	Min	Typical	Max	Unit
Operating Temperature		0	30	70	℃
Operating Relative Humidity	Not condensing	5		95	%
Storage Temperature	Not condensing	-40		85	℃
Power Handling		50			Mw
COM Port Wavelength Range		1260		1560	nm
TRANS Port Wavelength	CATV	1540	1550	1560	nm
REFL Port Wavelength 1	DATA upstream	1260	1310	1360	nm
REFL Port Wavelength 2	DATA downstream	1480	1490	1500	nm
Insertion Loss (excl. optical connector)	COM to TRANS		0.3	0.5	dB
	COM to REFL		0.25	0.4	dB
Isolation COM to TRANS@1490nm±10nm	1490nm into CATV port	15
Isolation COM to REFL@1550nm±10nm	1550nm into DATA port	15
Directivity	1310nm into CATV port	47
Return Loss (all ports)		45
Insertion Loss Thermal Sensitivity				0.005	dB/℃
Polarization Dependent Loss				0.1	dB
Bending Loss	@1550nm@10mm radius,1 turn			0.5	dB
Fiber Type	Corning® SMF-28 Ultra; 900um loose tube
Fiber Length	COM	51 cm
	TRANS	100 cm
	REFL	100 cm
Connector Type	COM	SC/APC
	TRANS	without connector
	REFL	without connector
WDM Packaging Tube Length			38	39	mm
WDM Packaging Tube Diameter			5.5	6	mm
WDM Tube Electrical Isolation	The metal tube must be electrically isolated by means of shrink wrap covering tube over its full length

Ordering Information

Wavelength	Configuration	Package Spec	Fiber Type	Fiber Diameter	Fiber Length	Connector
XGS-PON S=Specify	1=1unit combo 2=2unit combo 3=3unit combo 4=4unit combo S=Specify	S1= Steel tube φ5.5x35mm A9=ABS box 90x20x10mm A1=ABS box 100x80x10mm A2=ABS box 120x80x18mm A3=ABS box 140x115x15mm L1=LGX 12929130mm L2=LGX insert in 2slot Rack L4=LGX insert in 4slot Rack R1=19" 1 U Rack R2=2slot 19″1U Rack R4=4slot 19″1U Rack X=Customized	9=9/125 S=Specify	25=250um 90=900um 20=2.0mm 30=3.0mm S=Specify	05=0.5m 10=1.0m 15=1.5m S=Specify	00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC S=Specify

Product Packaging
