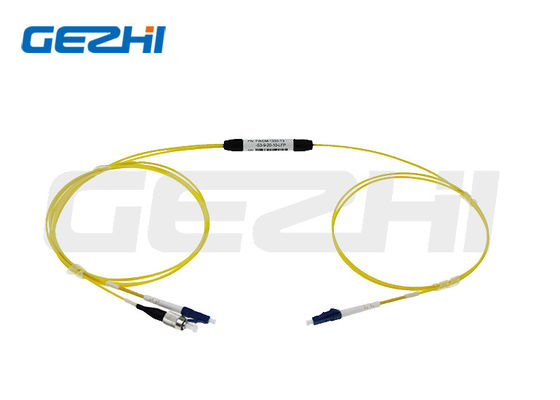

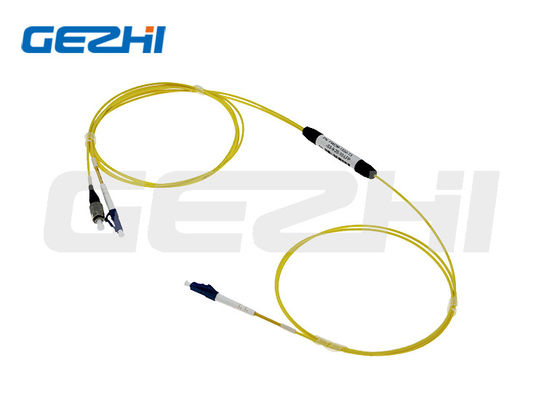

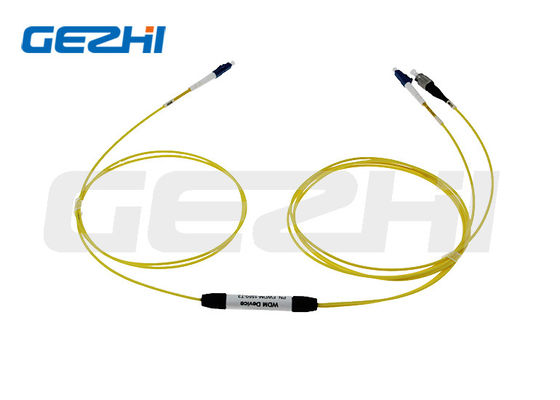

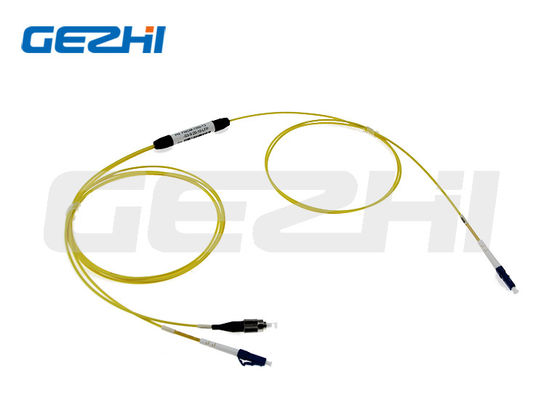

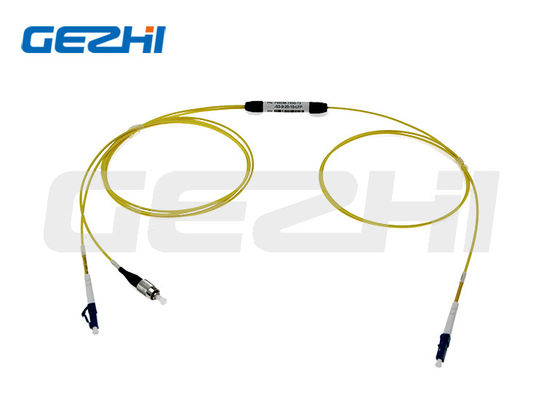

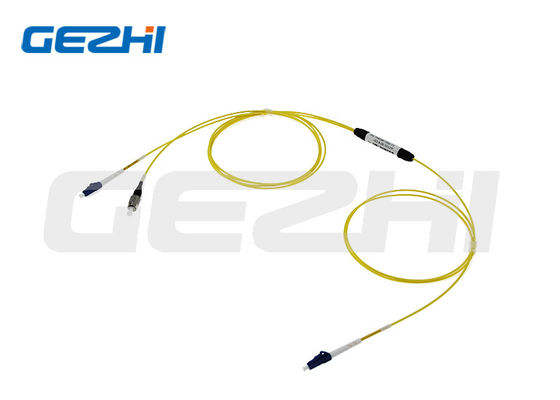

Multi Channel FWDM Filter WDM with 1470-1610nm Wavelength Customizable Connector and Low Insertion Loss
  • name
  • name
  • name
  • name
  • name
  • name

Multi Channel FWDM Filter WDM with 1470-1610nm Wavelength Customizable Connector and Low Insertion Loss

Brand Name: GEZHI or OEM
Model Number: 3 Ports Fiber Optic FWDM
MOQ: 1pc
Price: US$22-US$59
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS,ISO9001
Mode Type:
Single Mode
Insertion Loss:
≤ 2.5 DB
Connector Type:
Customizable
Wavelength:
1470-1610nm
Passband Ripple:
≤0.30dB
Return Loss:
≥45dB
Derectivity:
≥50dB
Packaging Details:
Paper box
Supply Ability:
5000pcs per month
Highlight:

Multi Channel Filter WDM

,

Multi Channel FWDM

,

WDM Steel Tube Communication Equipment

Product Description
Multi Channel FWDM Filter WDM Steel Tube Communication Equipment
FTTX Filter WDM modules are extensively used in EDFA, Raman amplifiers, WDM networks, and fiber optics instrumentation. Based on Thin Film Filter (TFF) technology, these devices combine or separate light at different wavelengths across a wide range. They expand the capacity of single fibers to enable bidirectional communication, making them ideal for optical network upgrades, expansions, and introducing comprehensive new services.
We provide customized filter-based wavelength division multiplexing (WDM) devices tailored to specific wavelength bands for specialized applications. In GEPON systems operating at 1310/1490nm, CATV signals are delivered over the same fiber using 1550nm, with FWDM serving as the mixing point.
Multi Channel FWDM Filter WDM with 1470-1610nm Wavelength Customizable Connector and Low Insertion Loss 0 Multi Channel FWDM Filter WDM with 1470-1610nm Wavelength Customizable Connector and Low Insertion Loss 1
Key Features
  • Low Insertion Loss
  • High Channel Isolation
  • Wide Pass Band
  • High Reliability and Stability
  • Epoxy Free on Optical Path
Applications
  • Line Monitoring
  • Telecommunications
  • Cellular Applications
  • Fiber Optical Amplifiers
  • Access Networks
  • Metro WDM Systems
  • Long Haul WDM Systems
  • Enterprise Networks
Technical Specifications
Parameter Unit Value
Channel Spacing GHz 200
Wavelength Range C- or L-band ITU channels 186.6 to 196.1 THz
Passband GHz ≥+/- 33
Transmission Passband Ripple dB ≤0.3
Transmission Insertion Loss dB ≤1.0
Reflection Passband Ripple dB ≤0.2
Reflection Insertion Loss dB ≤0.4
Transmission Isolation (Adjacent Channel) dB ≥30
Transmission Isolation (Non-Adjacent Channel) dB ≥50
Reflection Isolation dB ≥13
Polarization Dependent Loss dB ≤0.2
Polarization Mode Dispersion ps ≤0.2
Directivity dB ≥50
Return Loss dB ≥45
Optical Power Handling mW ≥500
Tensile Load N ≥5
Operating Temperature Range -5 to 70°C
Storage Temperature Range -40 to +85°C
Fiber Type SMF-28e
Package Dimension mm 5.5 x 34mm
All specifications are based on devices without connectors and guaranteed over wavelength, polarization, and temperature.
Dimensions Drawing
Multi Channel FWDM Filter WDM with 1470-1610nm Wavelength Customizable Connector and Low Insertion Loss 2
Product Packaging
Multi Channel FWDM Filter WDM with 1470-1610nm Wavelength Customizable Connector and Low Insertion Loss 3
