Product Details:
Payment & Shipping Terms:
|
| Product Name: | 1x32 Mems Optical Switch | Port: | 1x32 |
|---|---|---|---|
| Wavelength: | C-band Or Customized | Switch Time: | 30ms |
| Warranty: | 3 Years | Application: | Optical Network |
| High Light: | Fiber Mems Optical Switch Module,1x32 Mems Switch Module,Mems Optical Network Switch Module |
||
Product Overview of 1x32 Mems Optical Switch
High Reliability Stability1x32 Fiber Mems Optical Switch Module for Optical Network

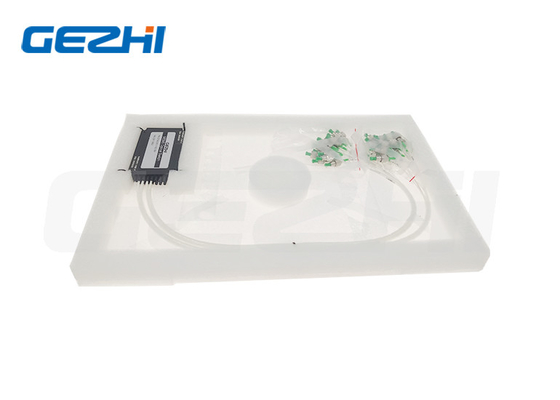

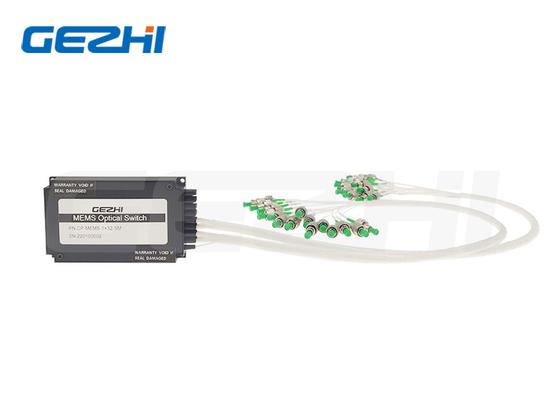

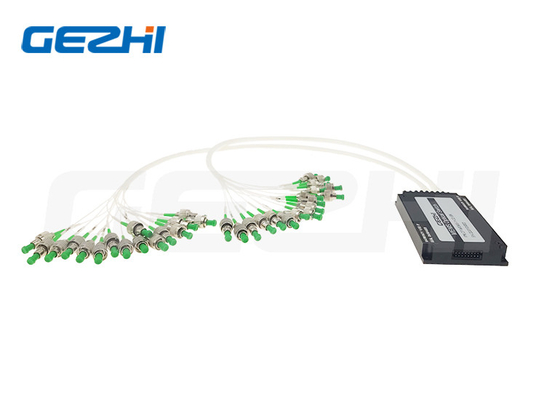

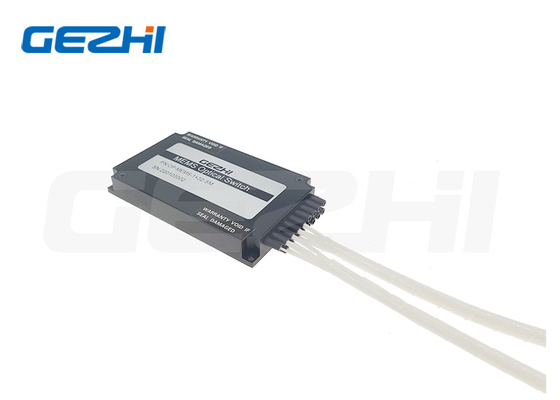

1x32 MEMS Optical Switches Module
1X32 MEMS swtch is a very fast opto-mechanical switch working over both telecom wavelength windows from 1240nm to 1640nm. The highly reliable switching mechanism is based on micromechanical mirrors and features below 1ms switching time and only 1.5 dB insertion loss. The miniature package withstands rugged environmenis and is well suited for direct mounting on printed circuit boards.
Features of 1x32 Mems Optical Switch
Features:
Low Crosstalk
Low Insertion loss
High Stability, High Reliability
Wide Wavelength Range
Applications:
Network Test System
Optical Network
Protection/Restoration
Optical Singnal Routing
Transmitter and receiver protection
Specifications of 1x32 Mems Optical Switch
| Parameters | Unit | MFSW-1×N (N≤16) | |
| Operating Wavelength | nm | 1260~1650 for SM, 850/1310 for MM | |
| Insertion Loss | dB | N≤8 | ≤1.0 |
| 8<N≤16 | ≤1.2 | ||
| 16<N≤32 | ≤1.5 | ||
| 32<N≤64 | ≤1.7 | ||
| 64<N≤144 | ≤2.2 | ||
| 144<N≤256 | ≤2.4 | ||
| WDL | dB | ≤ 0.3 | |
| TDL | dB | ≤ 0.3 | |
| PDL | dB | ≤ 0.15 | |
| Return Loss | dB | SM ≥ 45, MM ≥ 30 | |
| Crosstalk | dB | SM ≥ 45, MM ≥ 30 | |
| Repeatability | dB | ≤ ±0.02 | |
| Switching Time | ms | ≤ 8 | |
| Durability | times | ≥ 10 billion | |
| Switching Mode | Non-latching | ||
| Power Supply | V | DC 5V ± 10% | |
| Operating Current | mA | N≤16 | ≤50 |
| 16<N≤64 | ≤250 | ||
| 64<N≤144 | ≤350 | ||
| 144<N≤256≤ 500 | ≤500 | ||
| Optical Power | mW | ≤ 500 | |
| Operating Temperature | °C | -20 ~ +85 | |
| Storage Temperature | °C | -40 ~ +85 | |
| Operating Humidity | % | 5 ~ 95 | |
| Package Dimension | mm | P1: 31x24x11 | N≤64, bare fiber |
| P2: 60x24x11 | N≤16, 0.9mm loose tube | ||
| P3: 90x55x12 | 16<N≤64, 0.9mm loose tube | ||
| P4: 100x100x12 | 64<N≤144, 0.9mm loose tube | ||
| P5: 110x141x12 | 144<N≤256, 0.9mm loose tube | ||
Odering Information of 1x32 Mems Optical Switch
| Type | Channel | Wavelength | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| GZ-MEMS |
01=1x1 02=1x2 ..... 16=1x16 ...... |
85=850nm 13=1310nm 14=1490nm 15=1550nm 1625=1625nm 1650=1650nm 13/15=1310/1550nm |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
00=none LP=LC/UPC LA=LC/APC SP=SC/UPC SA=SC/APC FP=FC/UPC FA=FC/APC MP=MPO X=Customized |
FAQ
Q1:Can I have a sample order? What is your MOQ of 1x32 Mems Optical Switch?
