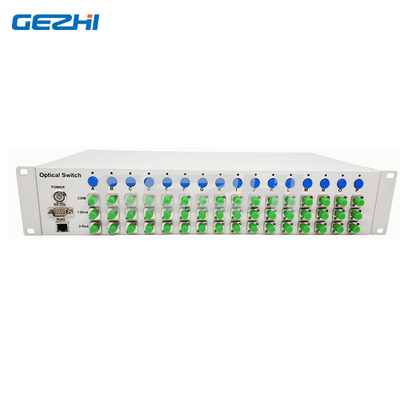

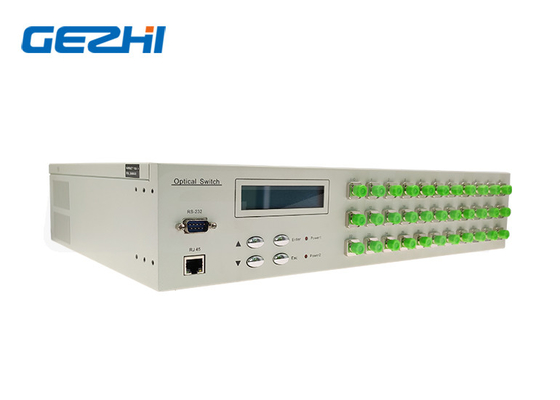

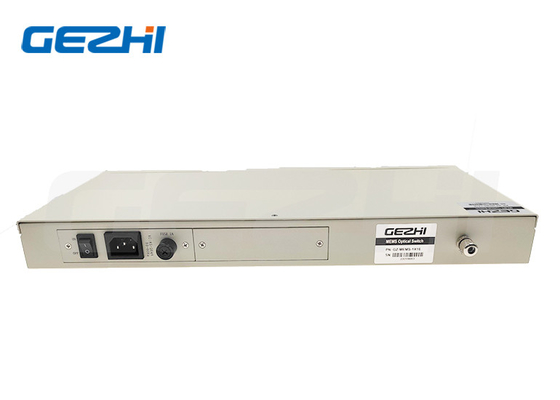

Customized Fiber MxN Matrix Optical Switch 16x16 2x12 24x24 Optical Matrix Switch

Customized Fiber MxN Matrix Optical Switch 16x16 2x12 24x24 Optical Matrix Switch
Customized Fiber MxN Matrix Optical Switch 16x16 2x12 24x24 Optical Matrix Switch Customized Fiber MxN Matrix Optical Switch 16x16 2x12 24x24 Optical Matrix Switch Customized Fiber MxN Matrix Optical Switch 16x16 2x12 24x24 Optical Matrix Switch

Large Image :  Customized Fiber MxN Matrix Optical Switch 16x16 2x12 24x24 Optical Matrix Switch

Product Details:
Place of Origin: China
Brand Name: GEZHI or OEM
Certification: CE RoHS,ISO9001
Model Number: Matrix Optical Switch
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 100000Channel per month
Contact Now
Detailed Product Description
Wavelength: 1260-1650nm Or Customized Interface Protocol: RS232 And RJ45
Voltage: AC:100~ 240 Port: Customize
Connecor: SC Or FC Etc. Application: Optical Network Remote Monitoring
High Light:

MxN Matrix Optical Switch

,

Matrix Optical Switch 16x16

,

24x24 Optical Matrix Switch





Product Overview of Matrix Optical Switch

Customized Fiber MxN Matrix Optical Switch16x16 2x12 24x24 fiber optical matrix switch



MxN Matrix Optical Switch



MEMS MxN Matrix Optical Switch is a kind of optical path controlling device, with the ability to control and switch the optical path. Thses matrix switches are significant in optical communications, mainly used for multi-channel fiber monitoring in optical transmission system, LAN multi light source/detector automatically switching and optical sensor multi-points dynamic monitoring system; optical fiber, optical component, and field optical cable testing in optical testing system; optical device installation and adjustment. MEMS Matrix MxN optical fiber switch can switch one of the input channels to one of the output channels.





Features of Matrix Optical Switch

Features:

  • *Low Insert Loss,
    *Fast Switching Speed
    *Transparent Transmission Signal
    *High Stability&Reliability

  • *RS232 Control & RJ45 Ethernet Remote Management

  •

Applications:

  • *Optical reconfiguration
    *Optical network protection/restoration
    *Network Security and Monitoring
    *R&D in Laboratory
    *Secure Communications





Specifications of Matrix Optical Switch

Parameter
Unit
M,N (2~32)
M,N (32~64)
M,N (64~96)
M,N (96~128)
Wavelength Range
nm
850nm or 1260~1650 (customized wavelength is available)
Testing Wavelength
nm
850 or 1310/1550
Insertion Loss
dB
≤1.5
≤1.5
≤1.8
≤2.0
Return Loss
dB
MM ≥ 30 or SM ≥ 50
Crosstalk
dB
≥55
PDL
dB
≤0.05
WDL
dB
≤0.25
TDL
dB
≤0.25
Repeatability
dB
≤0.02
Lifetime
times
>107
Switching Time
ms
≤8 (Adjacent Channel)
Optical Power
mW
≤500
Control Mode
/
TTL or Customized
Working Power Supply
mA
5V/500mA
Operating Temperature
℃
-5~+55
Storage Temperature
℃
-40~+85
Monitor Port
/
RJ45,RS-232
Power Supply
V
AC:100～ 240 (50/60Hz) or DC 36~72V
Dimensions
mm
Rackmount or Customized





Optical Path

Customized Fiber MxN Matrix Optical Switch 16x16 2x12 24x24 Optical Matrix Switch 0





Odering Information of Matrix Optical Switch

MXN A B C D E F
Number Test
Wavelength		 Package Type Fiber Type Tube
Type		 Fiber Length Connector

4:2X4
8:2X8
12:2X12

16:16X16
24:24X24
X:Others

 850:850nm
1300:1300nm
8513:850&1300nm
1310: 1310nm
1550: 1550nm
1315:1310&1550nm
1625:1625nm
X:Others		 A:Type A
X: Others		 SM:SM,9/125
M5:MM,50/125
M6:MM,62.5/125
X: Others		 25:250um(Type A)
90:900um(Type B)
X: Others		 05: 0.5m
10: 1.0m
15: 1.5m
X: Others		 OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
SP: ST/PC
SA: ST/APC
LP: LC/PC
LA: LC/APC
X: Other





 FAQ

Q1:Can I have a sample order? What is your MOQ of Matrix Optical Switch?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms Matrix Optical Switch?
A3: Payment term: T/T, Paypal, Western union,cash payment, Alibaba etc.
Q4: What is your warranty time of Matrix Optical Switch?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
