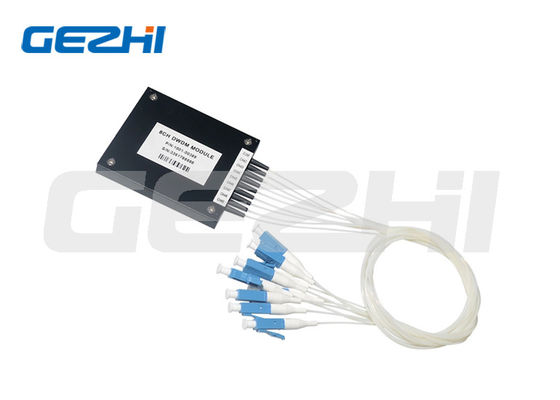

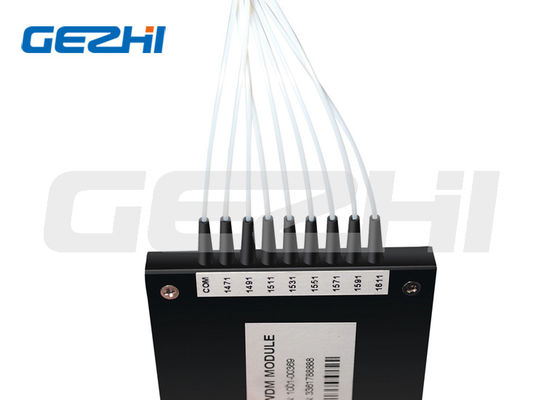

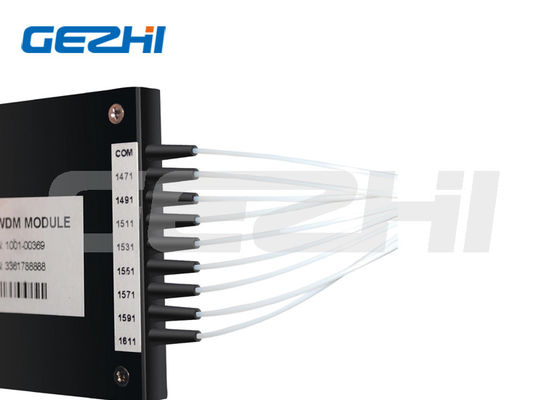

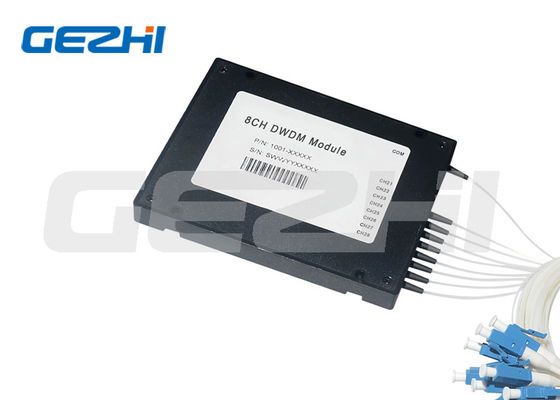

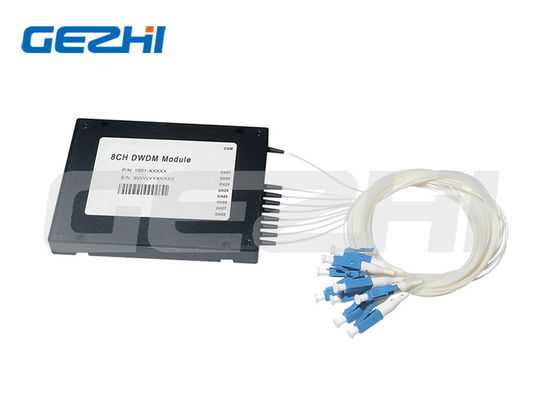

8 Channel Optical CWDM Mux Demux Module for FTTX with Low Insertion Loss

Name: 8 Channel Optical CWDM Mux Demux Module for FTTX with Low Insertion Loss
Brand: Gezhi Photonics (Shenzhen) Technology Co., Ltd.
SKU: 8CH Optical CWDM Mux Demux
Price: 88.00 USD
Availability: InStock

Brand Name:	GEZHI or OEM
Model Number:	8CH Optical CWDM Mux Demux
MOQ:	1pc
Price:	US$68-US$108

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS,ISO9001

Type:

CWDM Module

Use:

FTTX, FTTX

Channel Number:

4CH, 8CH Or 16CH

Structure:

Mux Or Demux

Channel Spacing:

20nm

Central Wavelength:

1271~1611nm

Operating Wavelength:

1260~1620nm

Input/Output Connector:

FC, SC, LC Optional

Input/Output Length:

0.5m, 1m Or Customized

Pigtail Diameter:

0.9mm

Package Dimension:

100X80X10mm

Packaging Details:

Paper box

Supply Ability:

5000pcs per month

Highlight:

Optical CWDM Mux Demux

8 Channel CWDM Mux Demux

FTTX CWDM Module

Product Description

Optical CWDM Mux Demux Module 8 Channel for FTTX Applications

Product Overview

Our 8-channel Optical CWDM Mux Demux Module provides an efficient solution for increasing bandwidth capacity while maintaining cost-effectiveness. Utilizing advanced Thin Film Filter (TFF) technology with proprietary packaging, these compact ABS modules deliver exceptional performance and reliability for optical metro edge and access networks.

Key Applications

CWDM Channels Add/Drop
CATV Fiber Optical Links
Accessing LAN Networks
Short-Distance Communications
Transport of PDH, SDH/SONET, and ETHERNET services

Product Features

Low Insertion Loss
Excellent Channel Isolation
High Stability & Reliability
Compact Design with Small Footprint
Cost-Effective Solution

Technical Specifications

Parameter	Unit	Specification
Channel spacing		20 nm ITU grids
Wavelength range	nm	1260 to 1620
Channel centers	nm	1270/1290…1610 or 1271/1291…1611
Passband	nm	≥+/-6.5 ,7.0,7.5
Passband ripple	dB	≤0.35
Transmission insertion loss	dB	≤0.70 (Typical 0.50)
Reflection insertion loss	dB	≤0.40
Transmission isolation (adjacent channel)	dB	≥30
Transmission isolation (non-adjacent channel)	dB	≥45
Reflection isolation	dB	≥13
Polarization dependent loss	dB	≤0.1
Polarization mode dispersion	ps	≤0.2
Thermal Stability	dB/°C	≤0.005
Directivity	dB	≥50
Return loss	dB	≥45
Optical power handling	mW	≤300
Tensile Load	N	≥5
Operating temperature range	°C	-5 to 70
Storage temperature range	°C	-40 to +85
Fiber type		SMF-28e
Package dimension	mm	≤5.5 x 34
