| Product Name: | 2x2A Optical Switch | Fiber Length: | 1m Or Customized |
|---|---|---|---|
| Voltage: | 5V Or 3V | Control Type: | Latching Or Non-Latching |
| Connector: | FC/PC Or Customized | Application: | R&D In Laboratory |
| High Light: | Mechanical Fiber Optical Switches,Monitoring Fiber Optical Switches,RoHS Optical Switch Module |
||
Overview of 2x2A Optical Switch

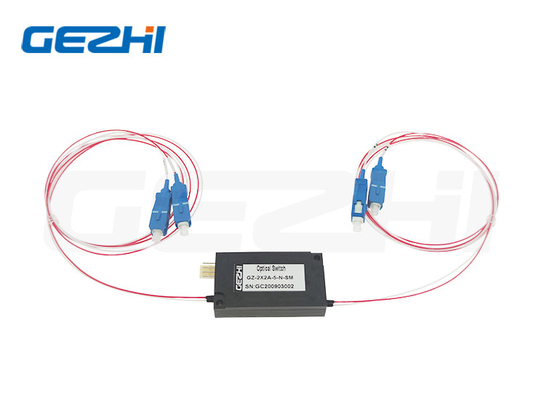

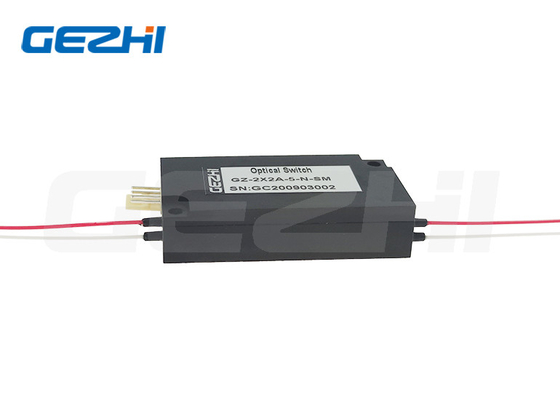

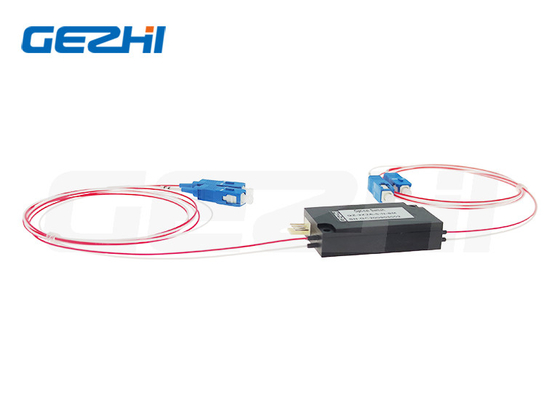

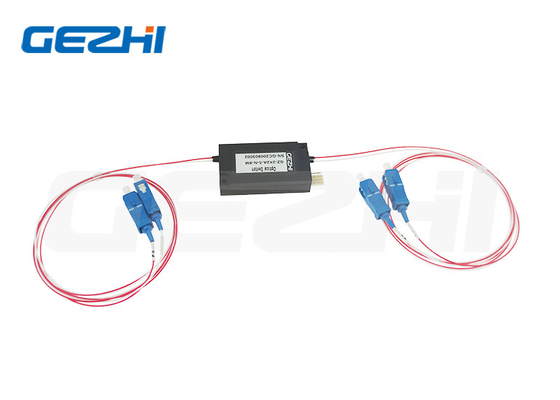

2x2A Mechanical Optical Switch Module for System Monitoring
2X2A Mechanial Optical Switch
Gezhi 2x2A Fiber Optic Switch, which is famous for its high performance, low insertion loss,Compact design and Miniature size,
2x2A optical switch is an ideal component for OADM,OXC,system monitoring and protection. With compact package, 2x2A opto-mechanical fiber optic switch can be easy to integrate into a high density optical communication system.
Features & Applications of 2x2A Optical Switch
|
Features Low Insertion Loss |
Applications R&D in Laboratory |
Specifications of 2x2A Optical Switch
| Parameters | Unit | GZ-FSW-2×2A |
| Wavelength Range | nm | 1260～1650 |
| Operating Wavelength | nm | 1310/1550 |
| Insertion Loss | dB | Typ:0.8 Max:1.0 |
| Return Loss | dB | ≥50 |
| Crosstalk | dB | ≥60 |
| PDL | dB | ≤0.05 |
| WDL | dB | ≤0.25 |
| TDL | dB | ≤0.25 |
| Repeatability | dB | ≤±0.02 |
| Power Supply | v | 3.0 or 5.0 |
| Lifetime | times | ≥107 |
| Switch Time | ms | ≤8 |
| Transmission Power | mW | ≤500 |
| Operating Temperature | ℃ | -20～+70 |
| Storage Temperature | ℃ | -40～+85 |
| Weight | g | 25 |
| Dimension | mm | (L)48×(W)22×(H)10(±0.1～0.2mm) Customization is available |
Optical Route of 2x2A Optical Switch
Odering Information of 2x2A Optical Switch
| X | X | XX | X | X | X | XX | X | XX |
| Name | Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| 2x2A Optical Switch |
S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=1.5m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC X=Others |
FAQ
Q1:Can I have a sample order? What is your MOQ of 2x2A Optical Switch?
